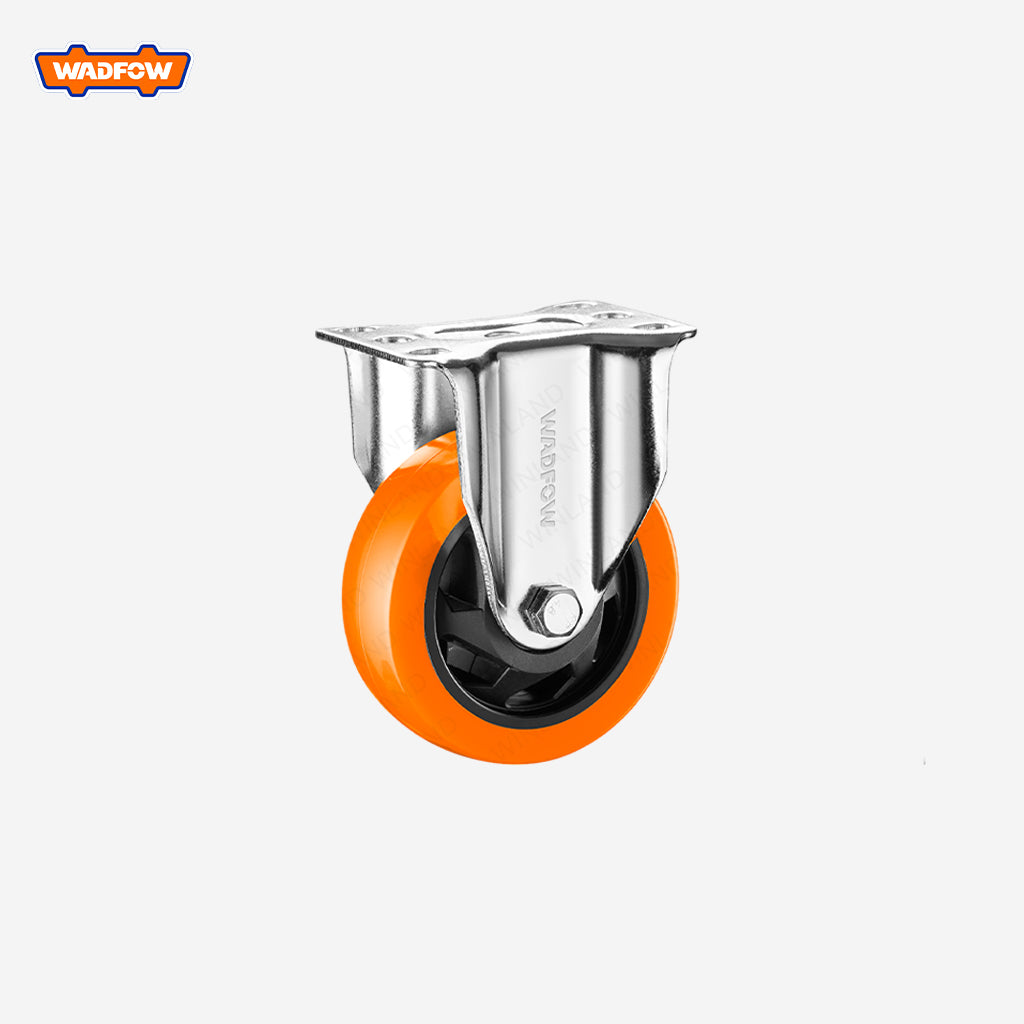

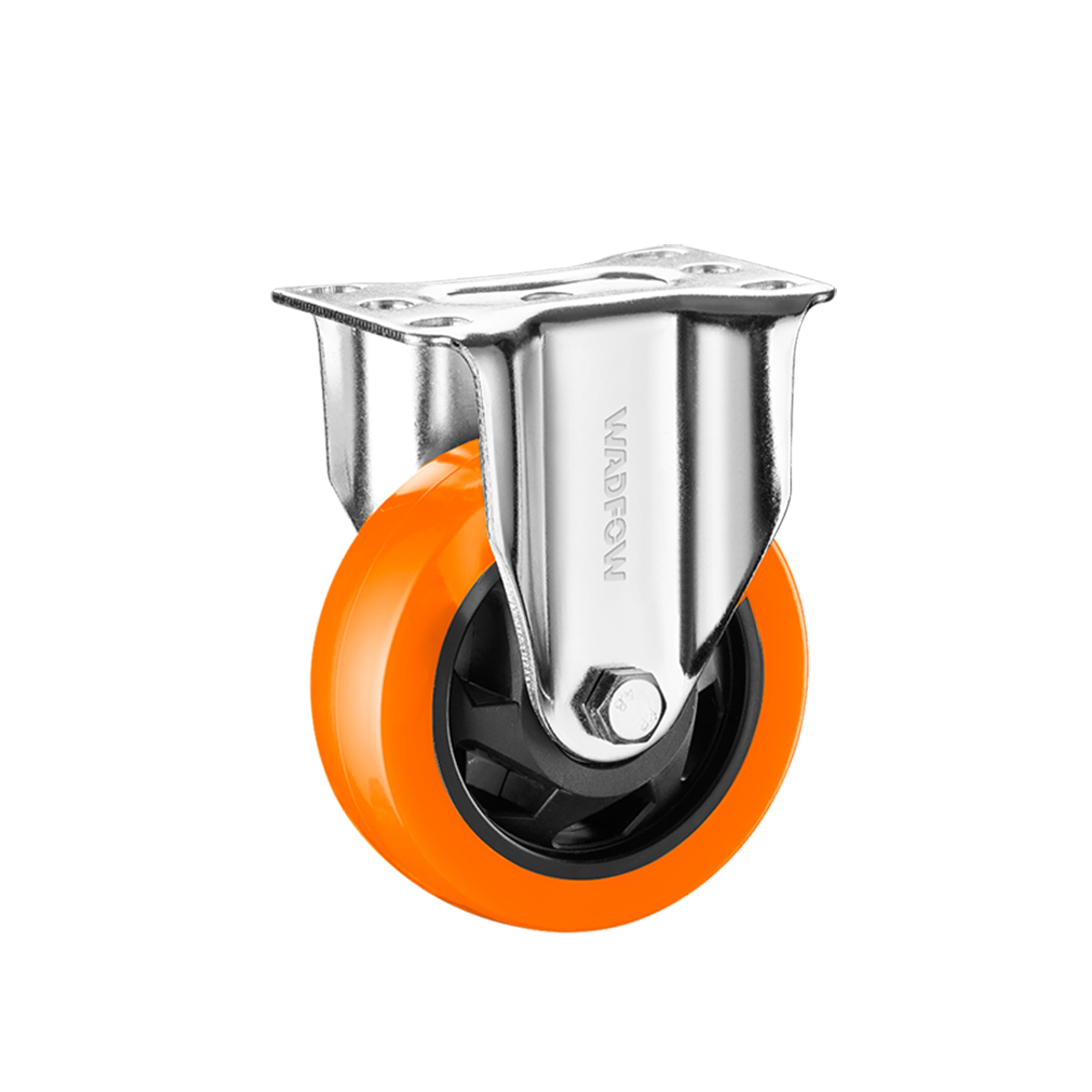

Model: WJL2331

Specifications

Type: 3-inch Rigid Swivel Caster

Load Capacity: 100kg

Wheel Material: PP+PVC

Wheel Diameter: 3" (75mm)

Wheel Width: 1.25" (32mm)

Bearing Type: Double Ball Bearing

Frame Material: Cold Rolled Sheet Metal

Frame Thickness: 2.5mm

Frame Surface Finish: Galvanized

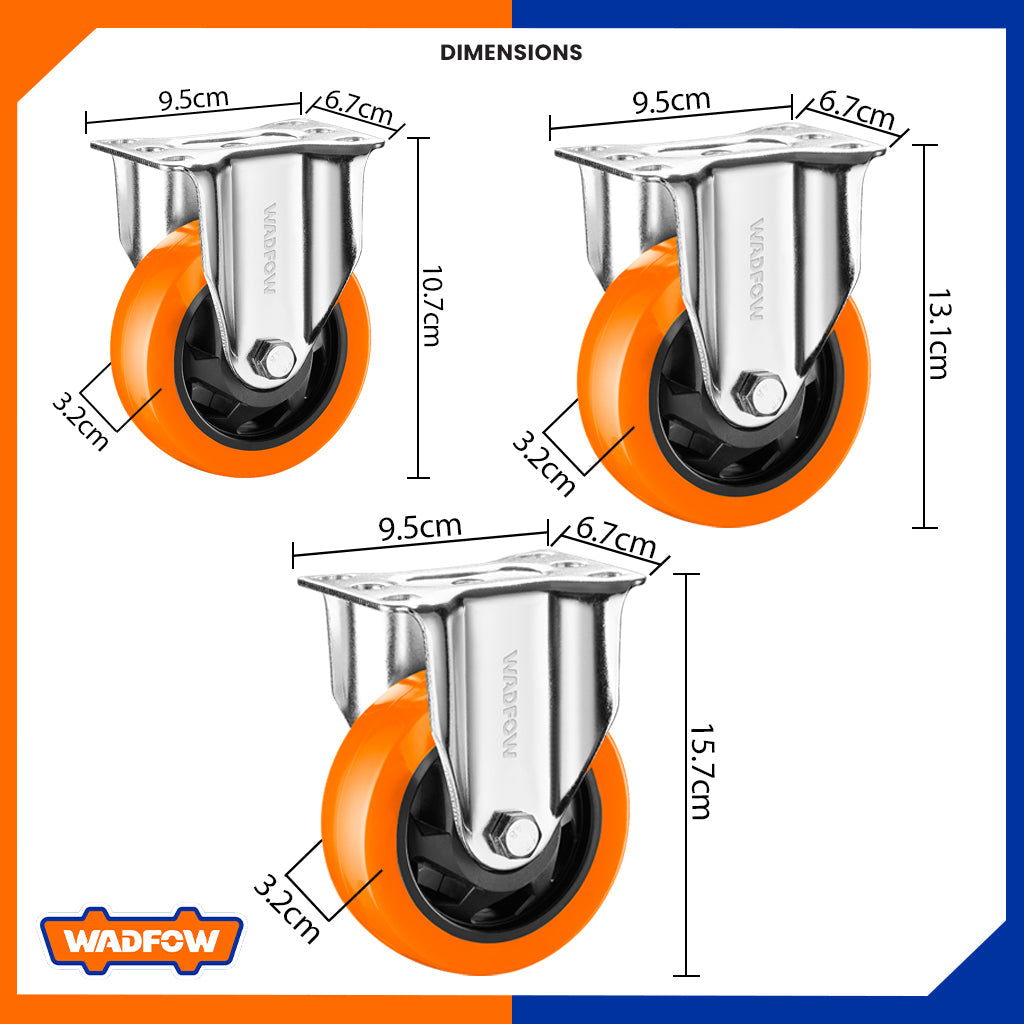

Top Plate Size: 95mm x 67mm

Hole Spacing: 75mm x 45mm

Hole Size: 12mm x 8.5mm

Mounting Height: 107mm



Model: WJL2341

Specifications

Type: 4-inch Rigid Swivel Caster

Load Capacity: 130kg

Wheel Material: PP+PVC

Wheel Diameter: 4" (100mm)

Wheel Width: 1.25" (32mm)

Bearing Type: Double Ball Bearing

Frame Material: Cold Rolled Sheet Metal

Frame Thickness: 2.5mm

Frame Surface Finish: Galvanized

Top Plate Size: 95mm x 67mm

Hole Spacing: 75mm x 45mm

Hole Size: 12mm x 8.5mm

Mounting Height: 131mm



Model: WJL2351

Specifications

Type: 5-inch Rigid Swivel Caster

Load Capacity: 150kg

Wheel Material: PP+PVC

Wheel Diameter: 5" (125mm)

Wheel Width: 1.25" (32mm)

Bearing Type: Double Ball Bearing

Frame Material: Cold Rolled Plate

Frame Thickness: 2.5mm

Frame Surface Finish: Galvanized

Top Plate Size: 95mm x 67mm

Hole Spacing: 75mm x 45mm

Hole Size: 12mm x 8.5mm

Mounting Height: 157mm
