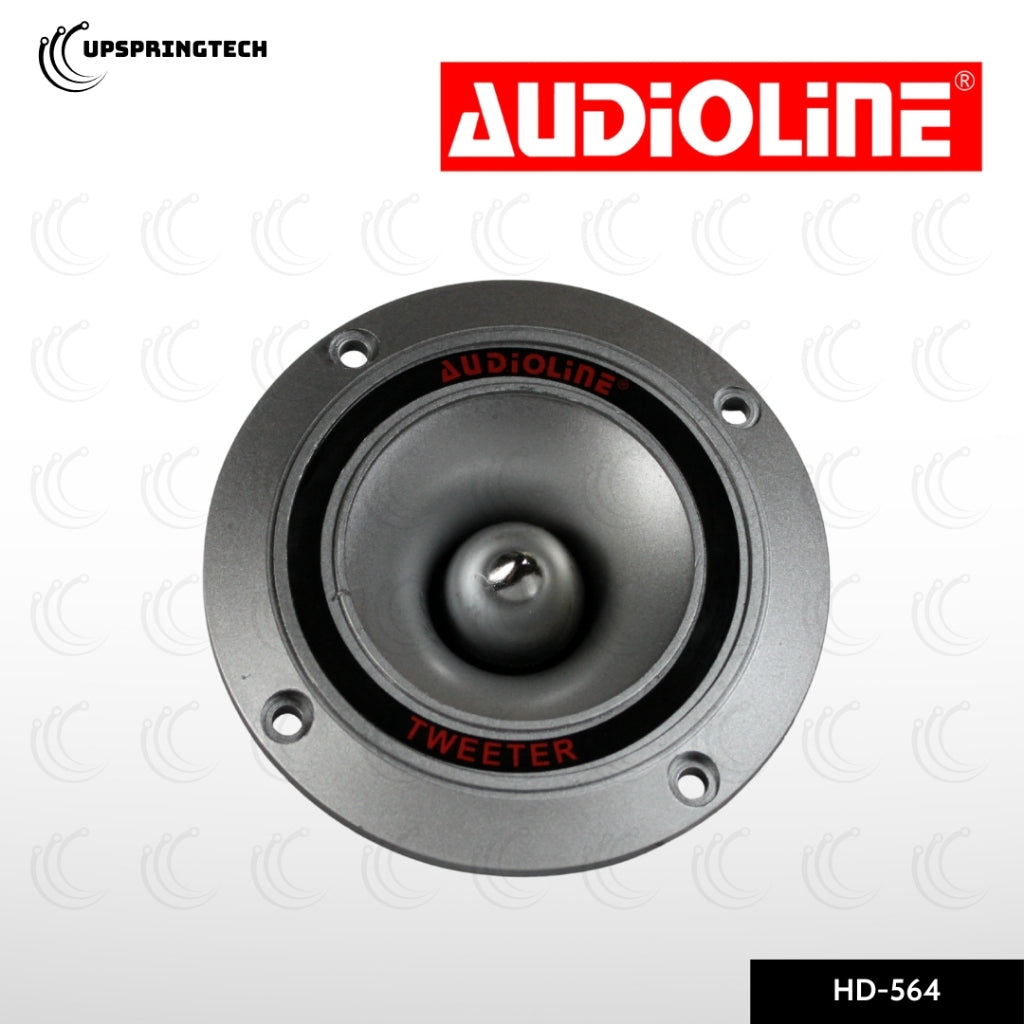

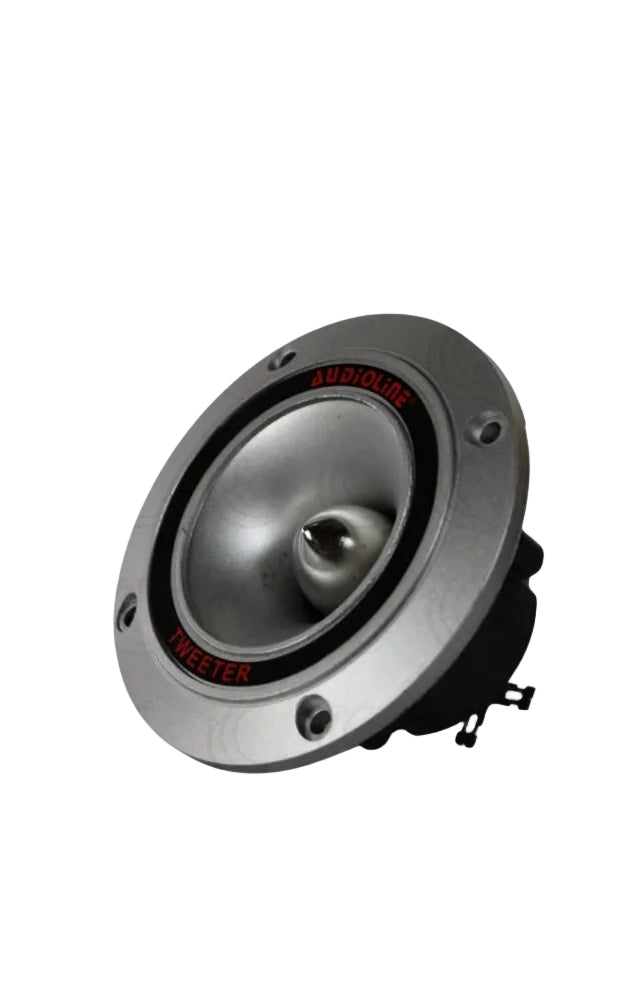

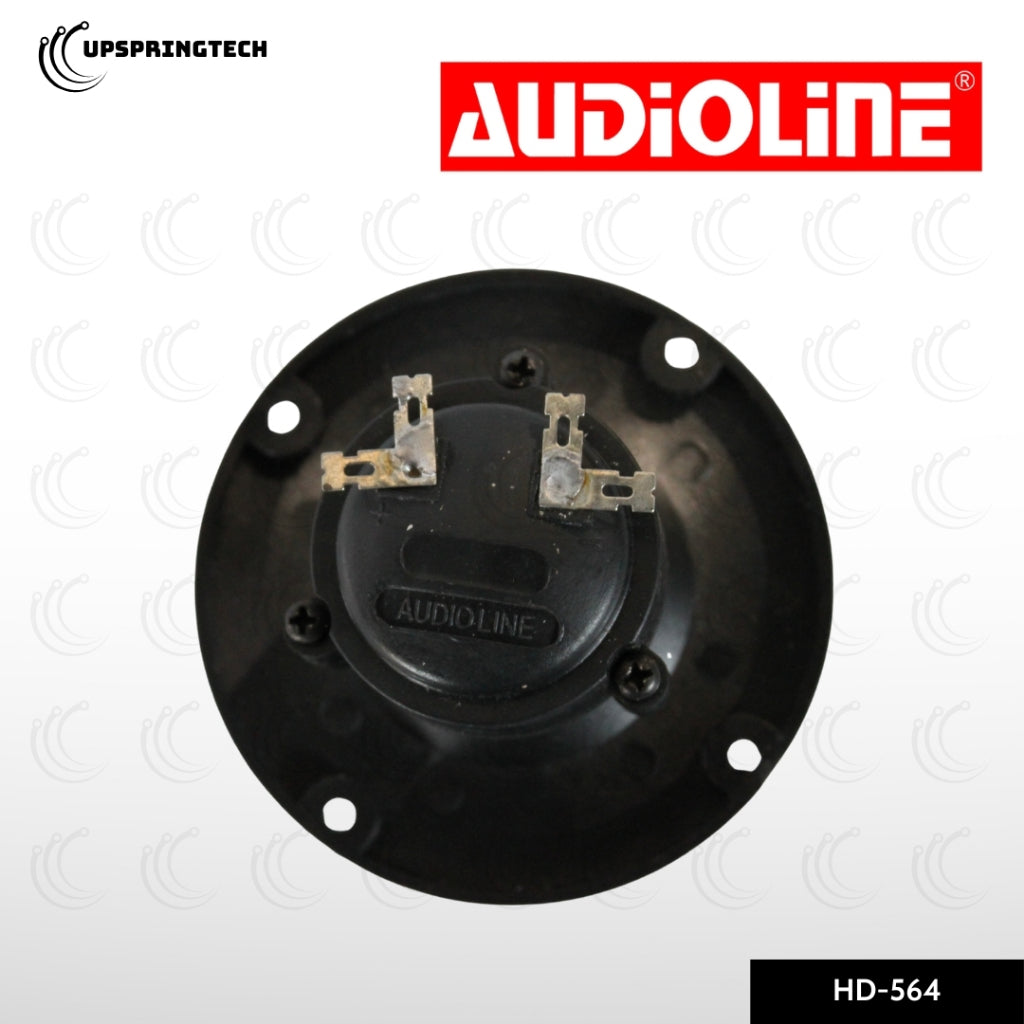

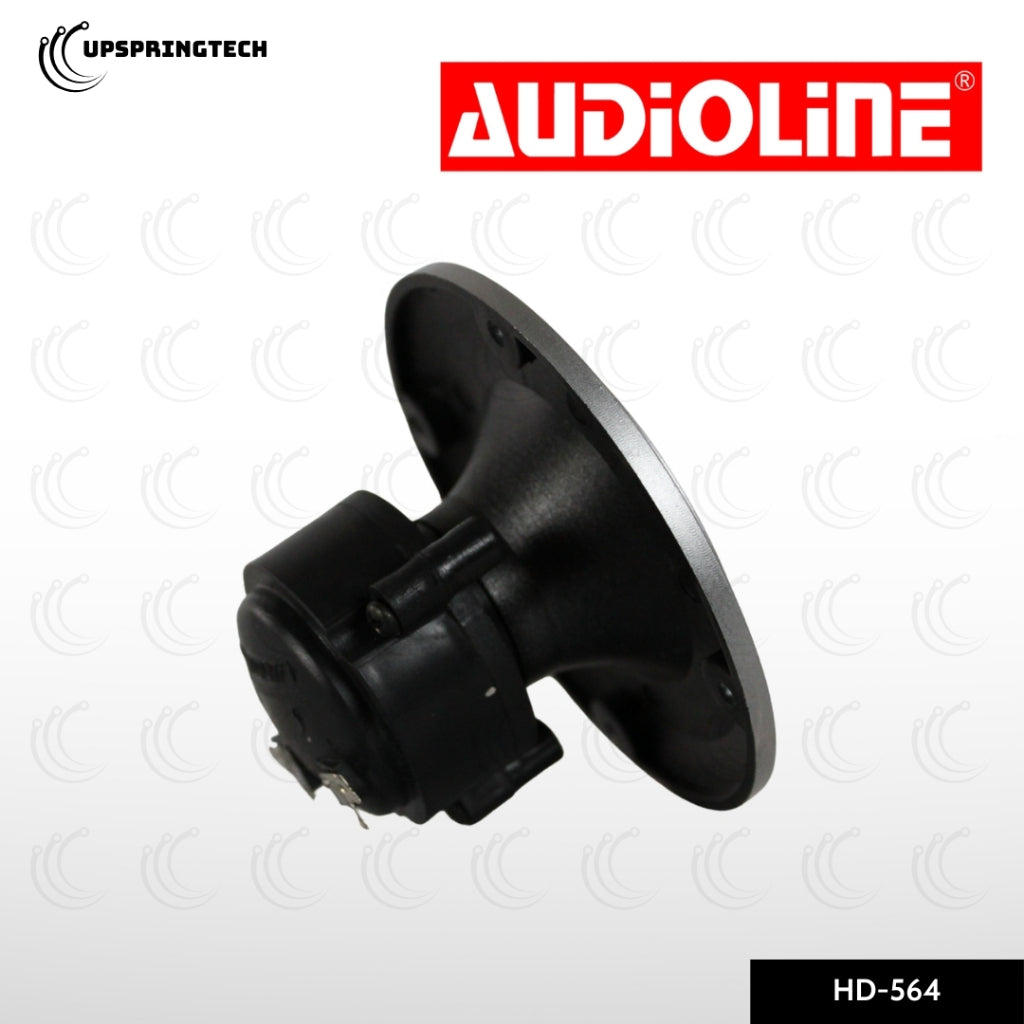

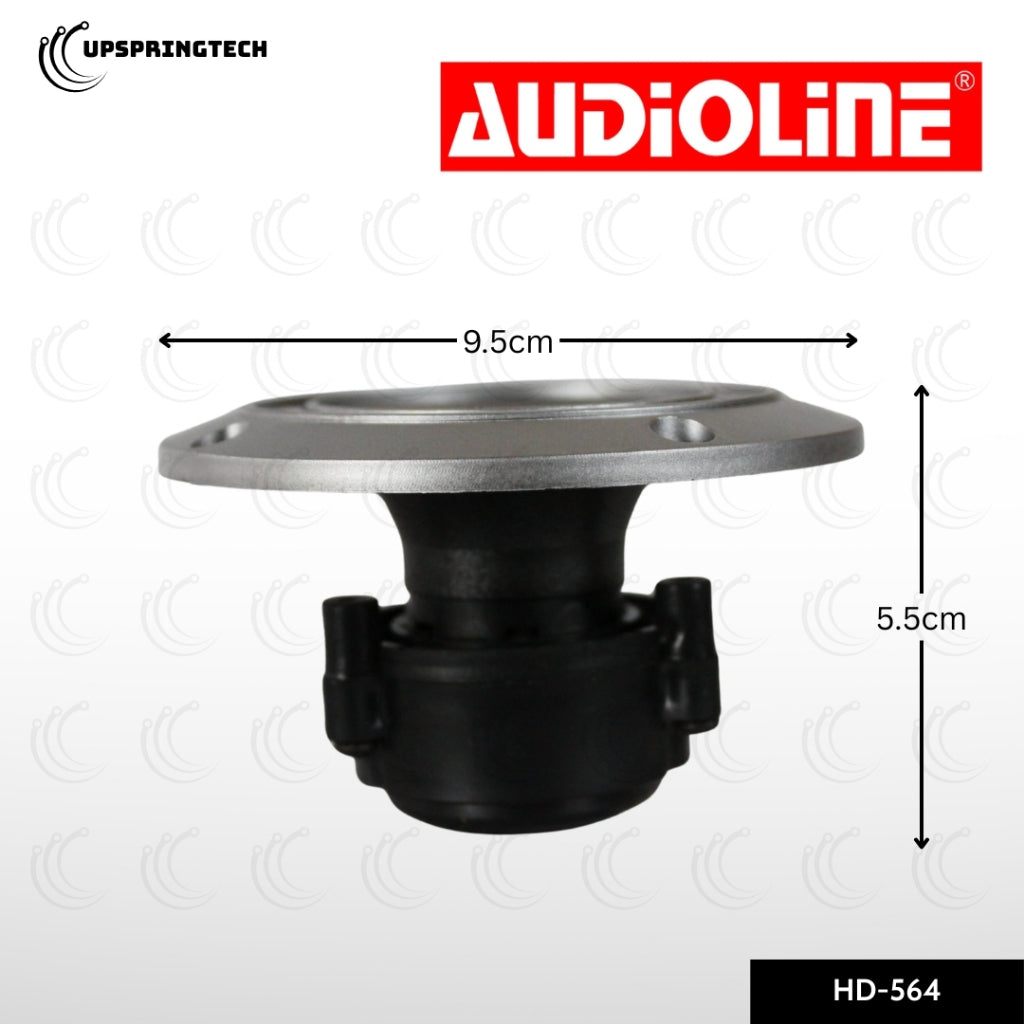

The Audioline HD-564 Piezoelectric Tweeter is a professional-grade high-frequency driver designed to deliver clear, sharp, and powerful treble output for PA speakers, DJ systems, and custom speaker enclosures. With a wide frequency response of 5kHz–20kHz, this tweeter enhances vocal clarity and high-end detail even at high volume levels.
Built for high efficiency and durability, the HD-564 supports up to 700W maximum power, making it ideal for mobile DJs, church sound systems, stage monitors, and sound reinforcement applications. It supports flexible installation using capacitors and optional resistor protection depending on system power.
🔊 Features & Benefits
• 700W Max Power Handling – Strong and crisp high-frequency performance
• Wide Frequency Response (5kHz–20kHz) – Clear vocals and detailed highs
• High Sensitivity Design – Loud output with efficient power use
• Piezoelectric Tweeter Technology – Durable and low distortion
• 4–8 Ohms Impedance Compatibility – Works with various PA systems
• Flexible Installation Setup – Suitable for heavy, medium, or small woofers
• Ideal for PA, DJ, Church & Speaker Builds
🛠️ Specifications
Specification
Brand: Audioline
Model: HD-564
Type: Piezoelectric Tweeter
Power (RMS / Max): 150W / 700W
Frequency Response: 5kHz – 20kHz
Sensitivity: Up to 107 dB (1m / 1W)
Impedance: 4–8 Ohms
Capacitor Type: 63V Non-Polarized Electrolytic
Application: PA Speakers, DJ Systems, Speaker Cabinets
