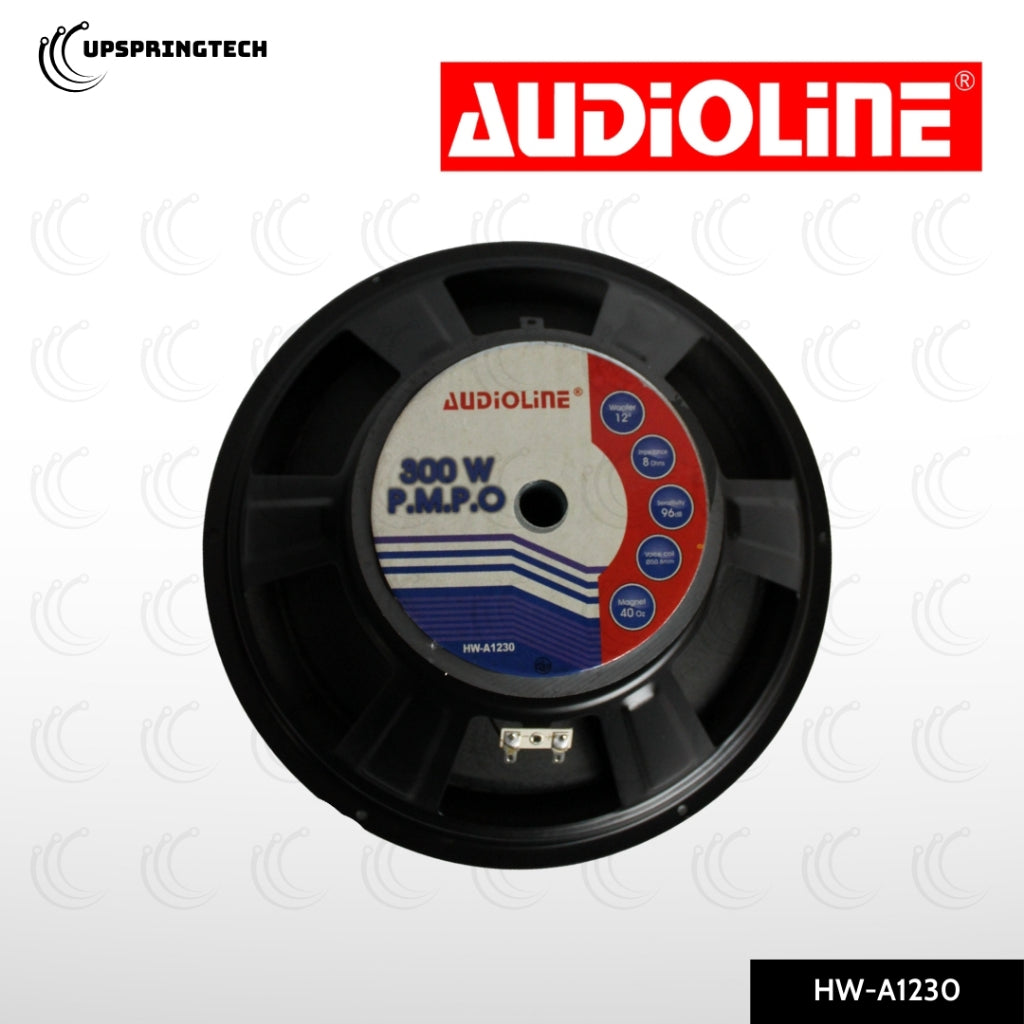

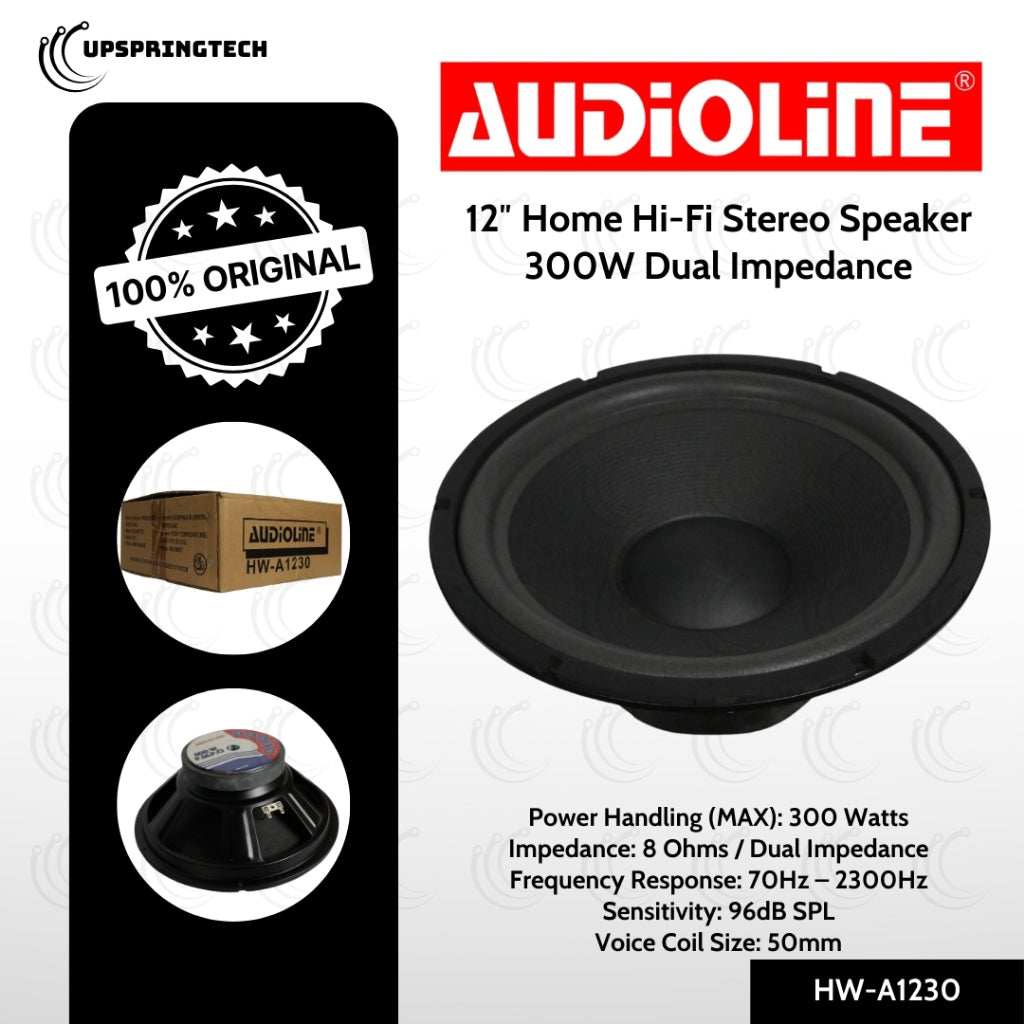

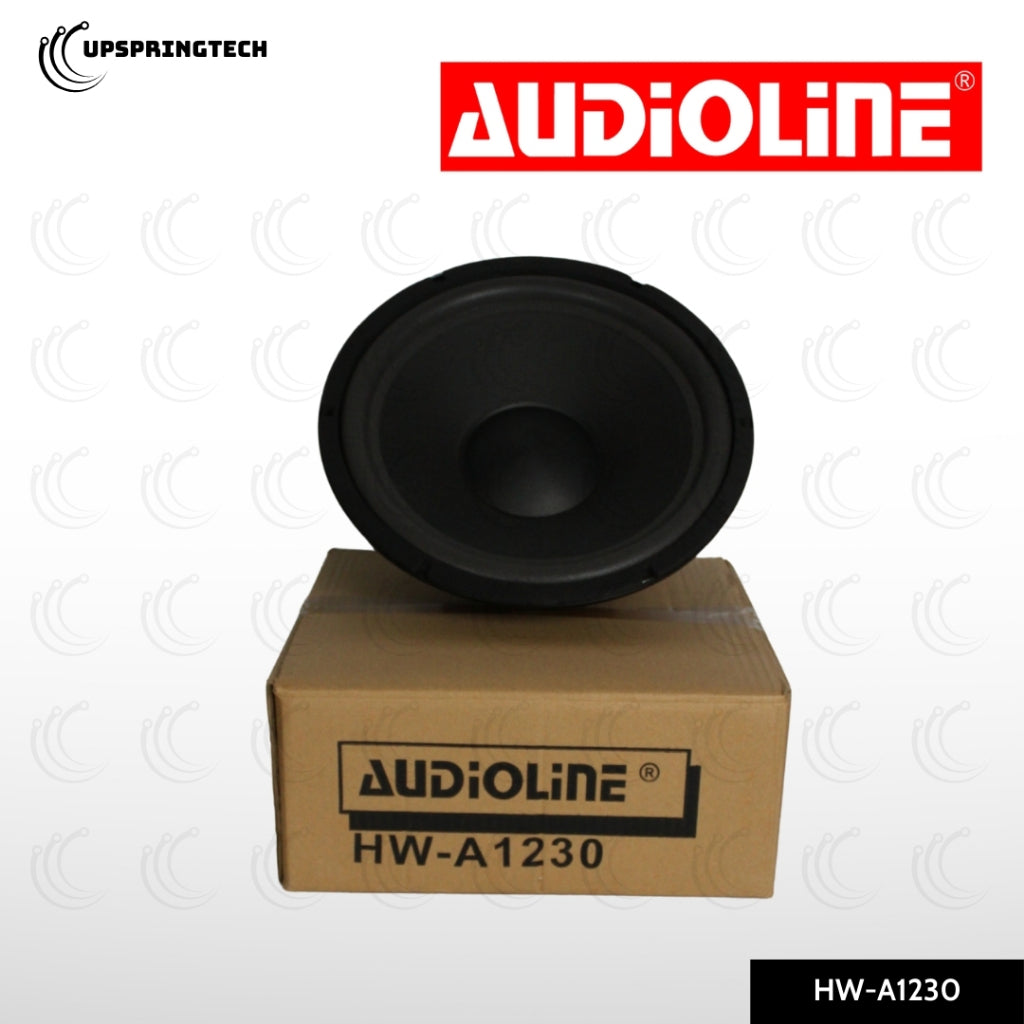

The Audioline HW-A1230 12-Inch Home Hi-Fi Stereo System Speaker is engineered to deliver powerful, clear, and balanced sound for home audio systems and custom speaker enclosures. With a maximum power handling of 300 watts and high sensitivity at 96dB SPL, it provides strong output with efficient performance.
Built with a high damping rubber surround, 50mm high-temperature PASV voice coil, and a robust 40 oz. magnet, the HW-A1230 ensures controlled bass, clean midrange response, and stable operation. Its dual impedance design offers flexibility for different amplifier and system configurations, making it an excellent choice for home Hi-Fi stereo setups.
⭐ Key Highlights
✅ 12″ Home Hi-Fi Stereo Speaker – Full and dynamic sound
✅ 300W Max Power Handling – Strong audio performance
✅ 96dB SPL Sensitivity – High efficiency output
✅ 70Hz–2300Hz Frequency Response – Clear bass & mids
✅ Dual Impedance Design – Flexible system matching
✅ High Damping Rubber Surround – Clean, controlled sound
✅ 50mm High-Temp PASV Voice Coil – Heat-resistant durability
✅ 40 oz. Heavy Magnet – Stable and punchy audio output
📊 Complete Specifications
General Information
Brand: Audioline
Model: HW-A1230
Product Type: Home Hi-Fi Stereo System Speaker
Audio Specifications

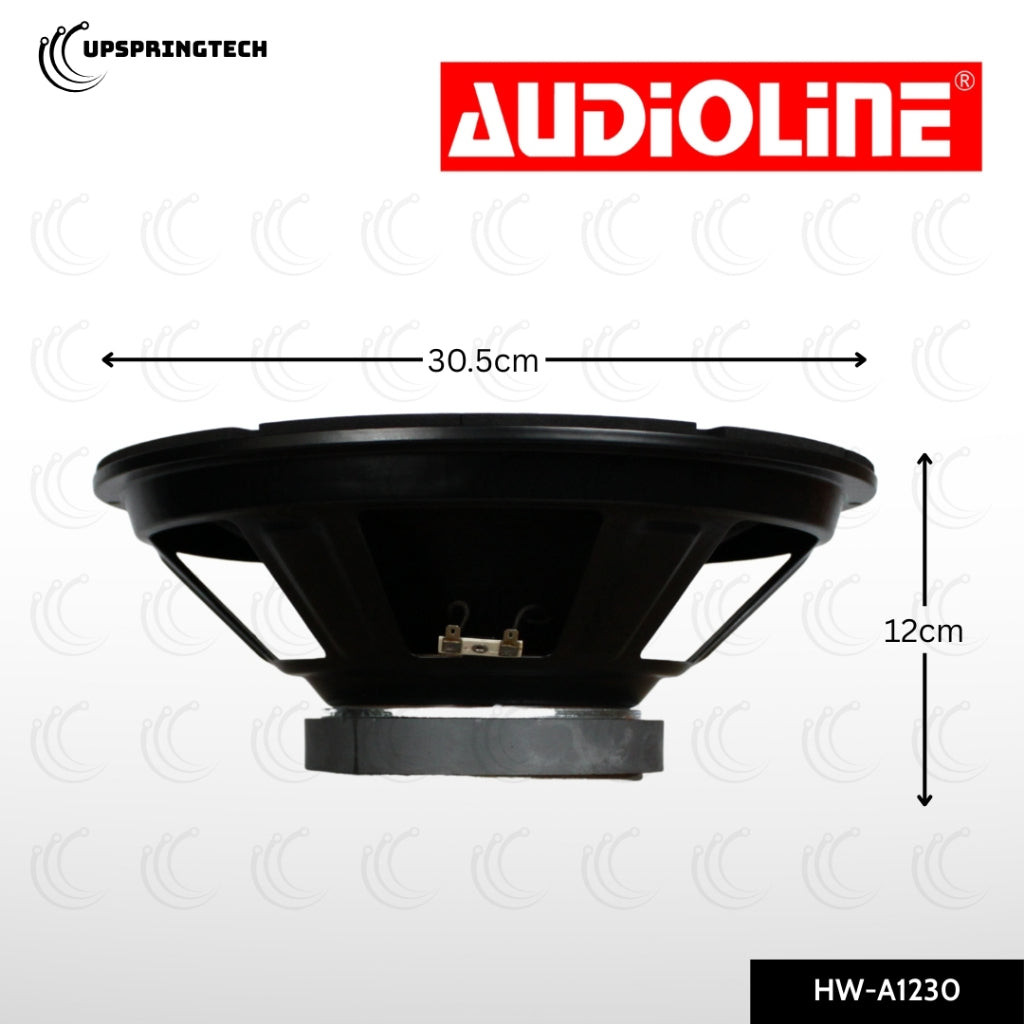

Speaker Size: 12 Inches
Power Handling (MAX): 300 Watts
Impedance: 8 Ohms / Dual Impedance
Frequency Response: 70Hz – 2300Hz
Sensitivity: 96dB SPL
Speaker Type: Passive speaker
Voice Coil & Magnet
Voice Coil Size: 50mm
Voice Coil Type: High-Temperature PASV Voice Coil
Magnet Weight: 40 oz.
Magnet Type: High-strength ferrite magnet
Cone & Surround
Cone Material: Audio-grade speaker cone
Surround: High Damping Rubber Surround
Damping Control: Enhanced vibration control for clean output
Design & Build
Frame Material: Reinforced metal frame
Basket Structure: Durable heavy-duty design
Performance & Usage
High output with low distortion
Stable performance at higher volume levels
Designed for indoor home audio use
Recommended Applications
Home Hi-Fi stereo systems
Custom speaker enclosures
Music and entertainment setups
Home audio upgrades
