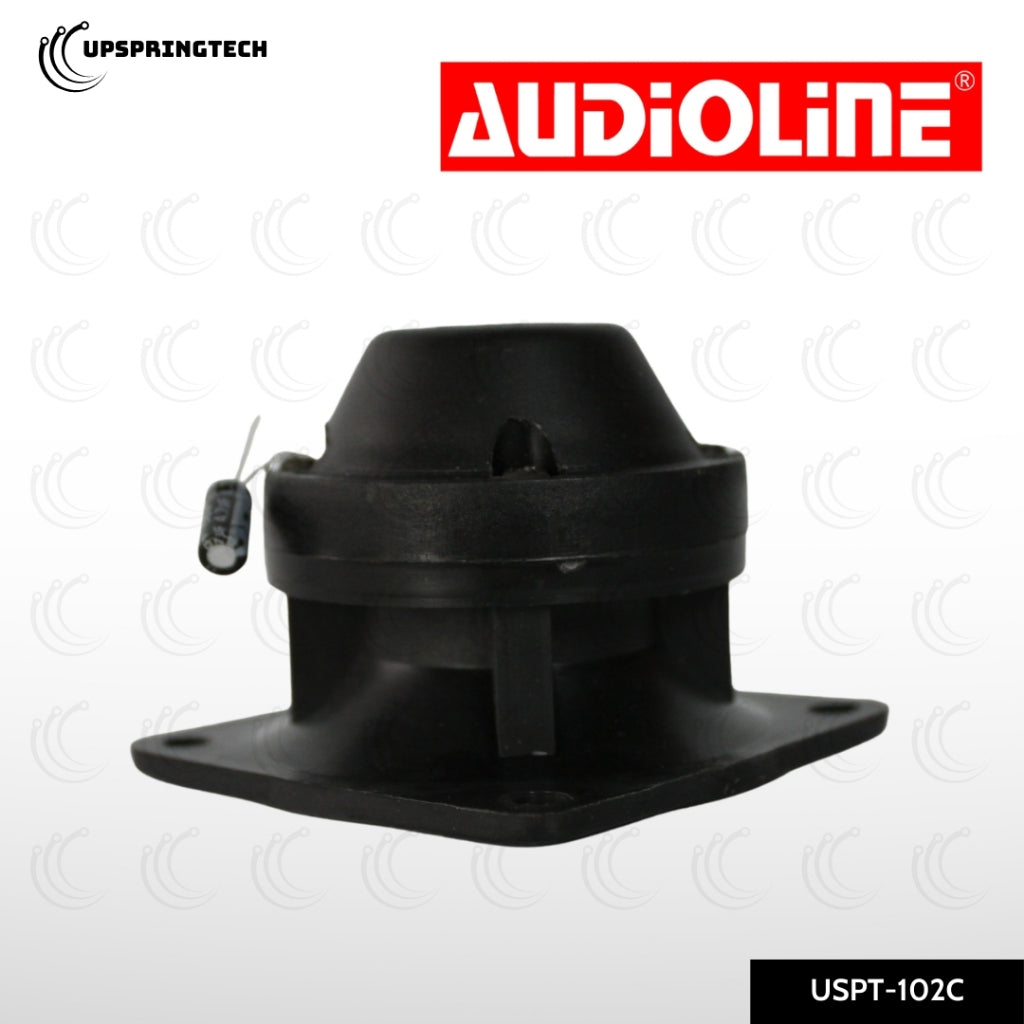

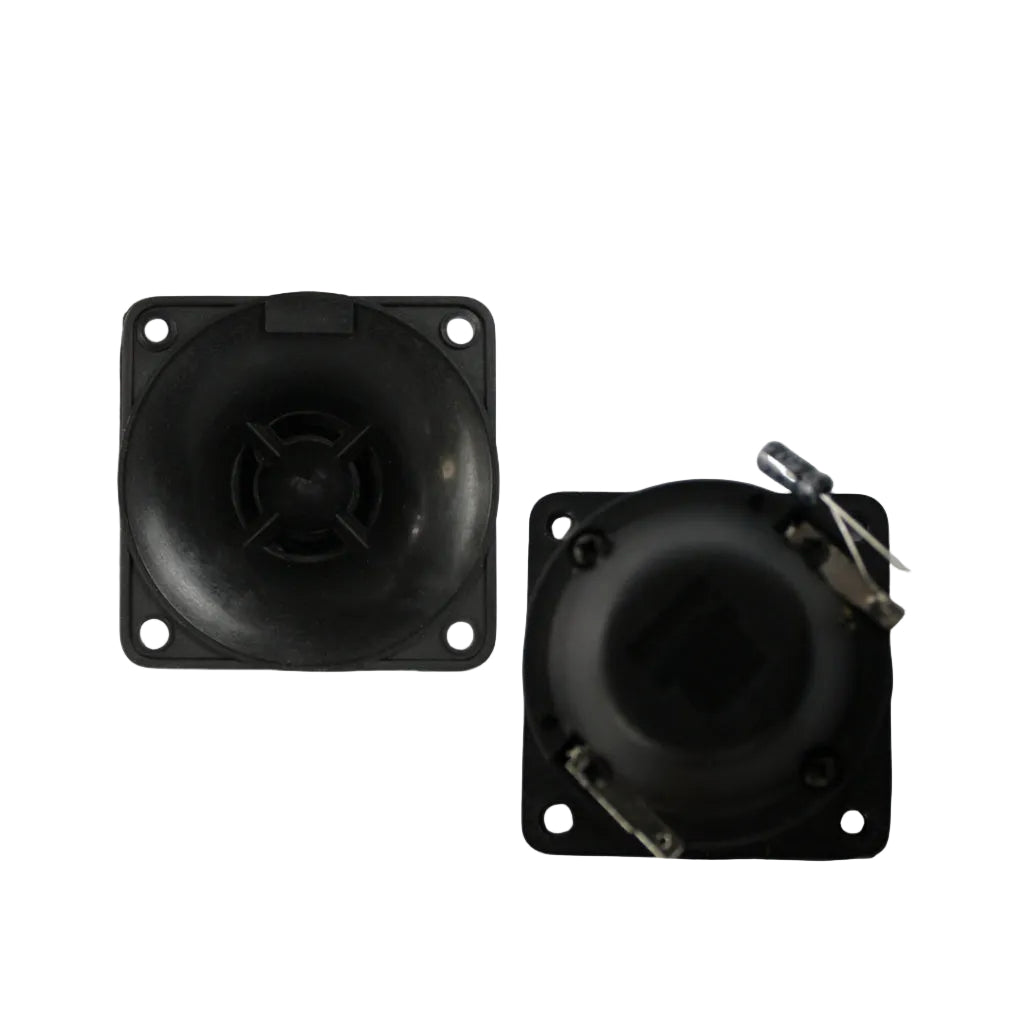

The Audioline USPT-102C Tweeter is designed for high-output, crystal-clear high-frequency performance in PA systems, speaker cabinets, and custom audio builds. With an exceptional 107dB sensitivity, this tweeter delivers bright, powerful highs that cut through loud mixes, making it ideal for professional and high-power sound systems.
Built to handle up to 700W, the USPT-102C ensures stable operation when properly installed using the recommended capacitor and resistor configurations, protecting the tweeter while maintaining accurate sound reproduction across different speaker setups.
🔊 Key Features & Benefits
• High-Power Tweeter (700W Max) – Designed for professional PA and speaker systems
• Wide High-Frequency Response (5kHz–20kHz) – Crisp highs and detailed sound clarity
• 4Ω Impedance – Compatible with most PA and audio amplifiers
• Very High Sensitivity (107dB) – Loud output with minimal power input
• Optimized for Speaker Builds – Ideal for upgrading or replacing cabinet tweeters
• Stable & Reliable Performance – Works efficiently with proper capacitor protection

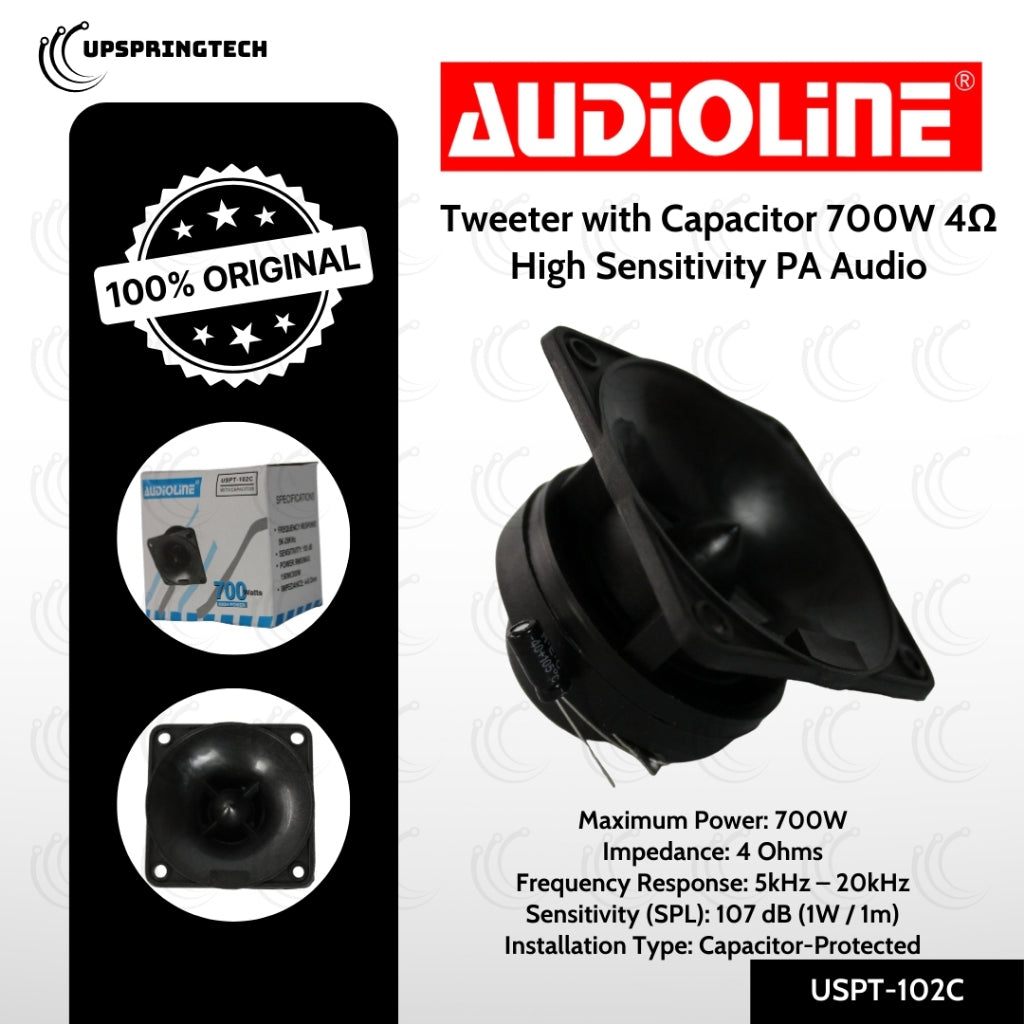

🛠️ Specifications
Specification
Brand: Audioline
Model: USPT-102C
Speaker Type: Tweeter
Maximum Power: 700W
Impedance: 4 Ohms
Frequency Response: 5kHz – 20kHz
Sensitivity (SPL): 107 dB (1W / 1m)
Installation Type: Capacitor-Protected
Application: PA System, Speaker Cabinet, Audio Builds
⚙️ Installation & Capacitor Guide
• Recommended Capacitor: 63V Non-Polarized Electrolytic
• For Heavy Woofers: 4.7 µF
• For Medium Woofers: 3.3 µF
• For Small Woofers: 2.3 µF
🔧 Additional Protection
• For 150W systems, use a 15Ω / 20W resistor connected in series with the capacitor
(Proper installation is required to protect the tweeter and ensure long-term performance.)
