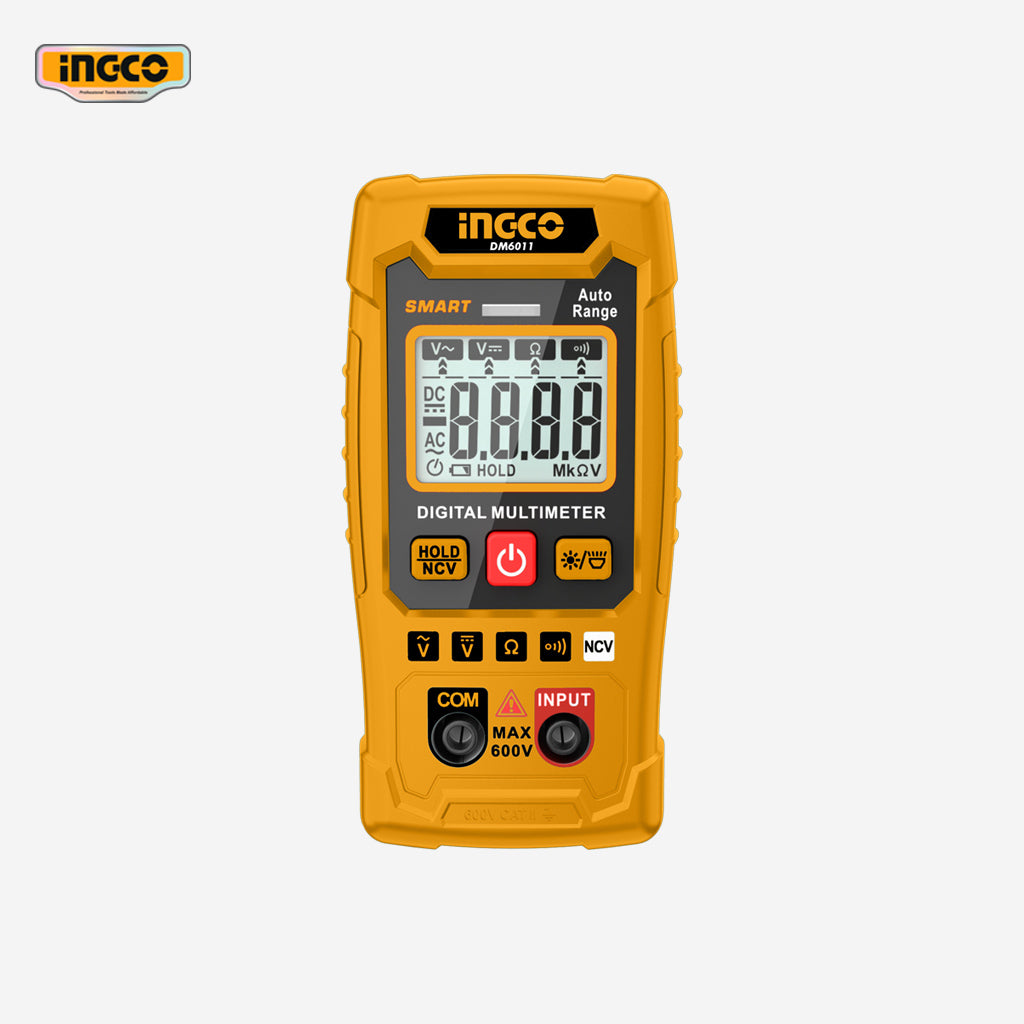

Model: DM6011
Specification
Environment:
Category: CAT.II 600V
Pollution Level: 2
Altitude: < 2000m
Working Temperature & Humidity: 0~40°C (<80% RH, <10°C non-condensing)
Storage Temperature & Humidity: -10~60°C (70% RH, remove battery)
Temperature Coefficient: 0.1 x accuracy / °C (<18°C or >28°C)
Maximum Voltage (Terminal to Earth Ground): 600V
Sampling Rate: Approximately 3 times per second
Display: 4000 counts
Over Range Indication: "OL"
Low Battery Indication: Displayed
Input Polarity: Automatically displayed
Power Requirements: 2 x 1.5V AAA batteries
Accuracy:
Accuracy Applies Within: One year after calibration
Reference Conditions: Environment temperature 18°C to 28°C, relative humidity ≤ 80%
Accuracy Rating: ± (%reading + digits)
Other:
Power Supply: 2 x AAA alkaline batteries
Dimensions (LxWxH): 6 x 2 x 11.5 cm
Features:
-
Auto-Ranging: Automatically selects the appropriate measurement range for convenience.
-
Smart Design: Provides essential features for various electrical testing tasks.
-
Durable Construction: Built for reliable and long-lasting performance.
-
User-Friendly Interface: Simple to operate and read.
-
Versatile Applications: Suitable for a wide range of electrical testing, including:
- Voltage measurement (DC and AC)
- Current measurement (DC and AC)
- Resistance measurement
- Continuity testing
- Diode testing
- Capacitance measurement
- Frequency measurement
