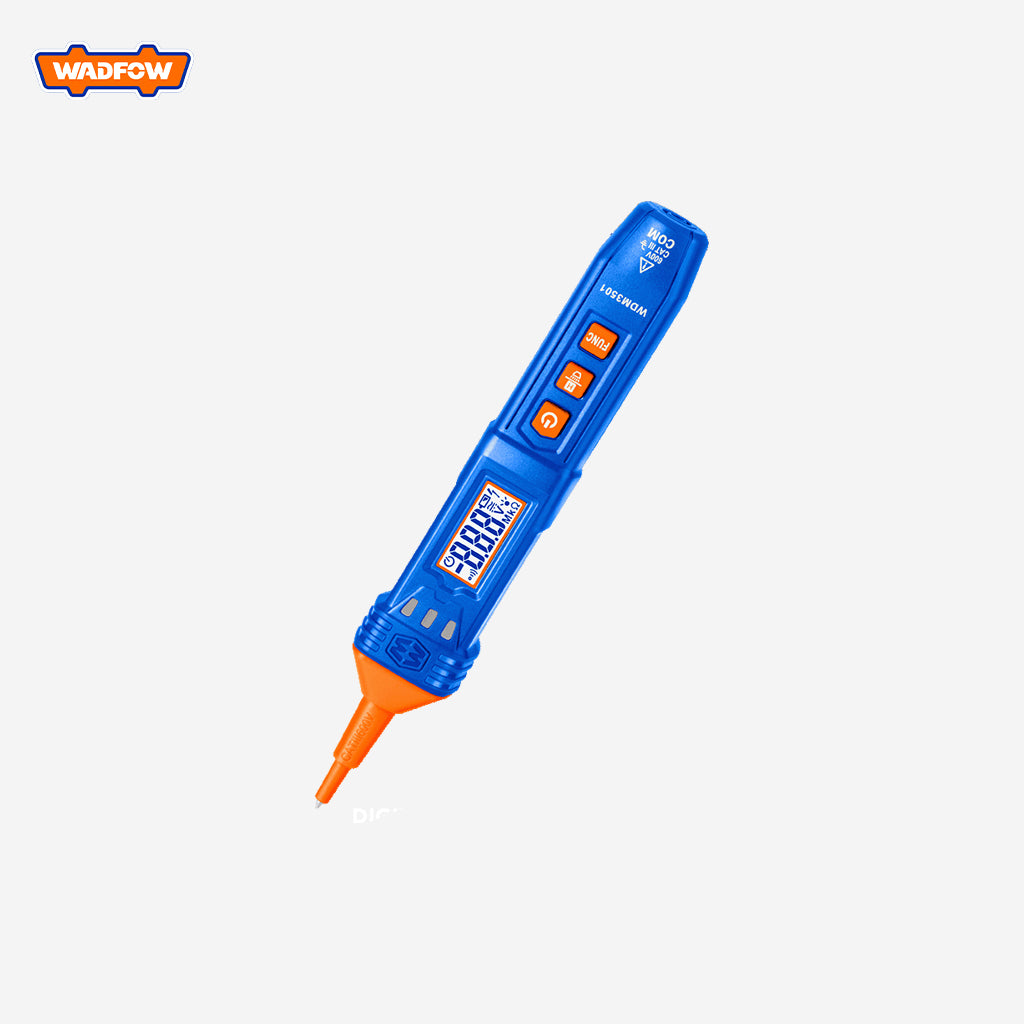

Model: WDM3501

Specification

Display: True RMS, 4000 counts

Measurement Functions:

DC Voltage: 4V / 40V / 400V / 600V

AC Voltage: 4V / 40V / 400V / 600V

Resistance: 400Ω / 4kΩ / 40kΩ / 400kΩ / 4MΩ / 40MΩ

Capacitance: 4nF / 40nF / 400nF / 4µF / 40µF

Frequency: 40Hz / 400Hz / 4kHz / 40kHz / 400kHz / 4MHz

Phase Sequence

Smart Function (specific function not detailed)

Auto Range

Diode Test

Live Wire Test

Data Hold

Low Battery Indication

Auto Power Off

Features:

  • Accurate Measurements: True RMS (Root Mean Square) measurement provides accurate readings for both sinusoidal and non-sinusoidal waveforms.
  • Multi-Functional: Offers a wide range of measurement capabilities for electrical troubleshooting and testing.
  • Smart Function: Includes a smart function for enhanced functionality
  • Phase Sequence Detection: Allows for determining the phase rotation in three-phase systems.
  • User-Friendly: Features auto-ranging, data hold, and clear digital display for convenient operation.
