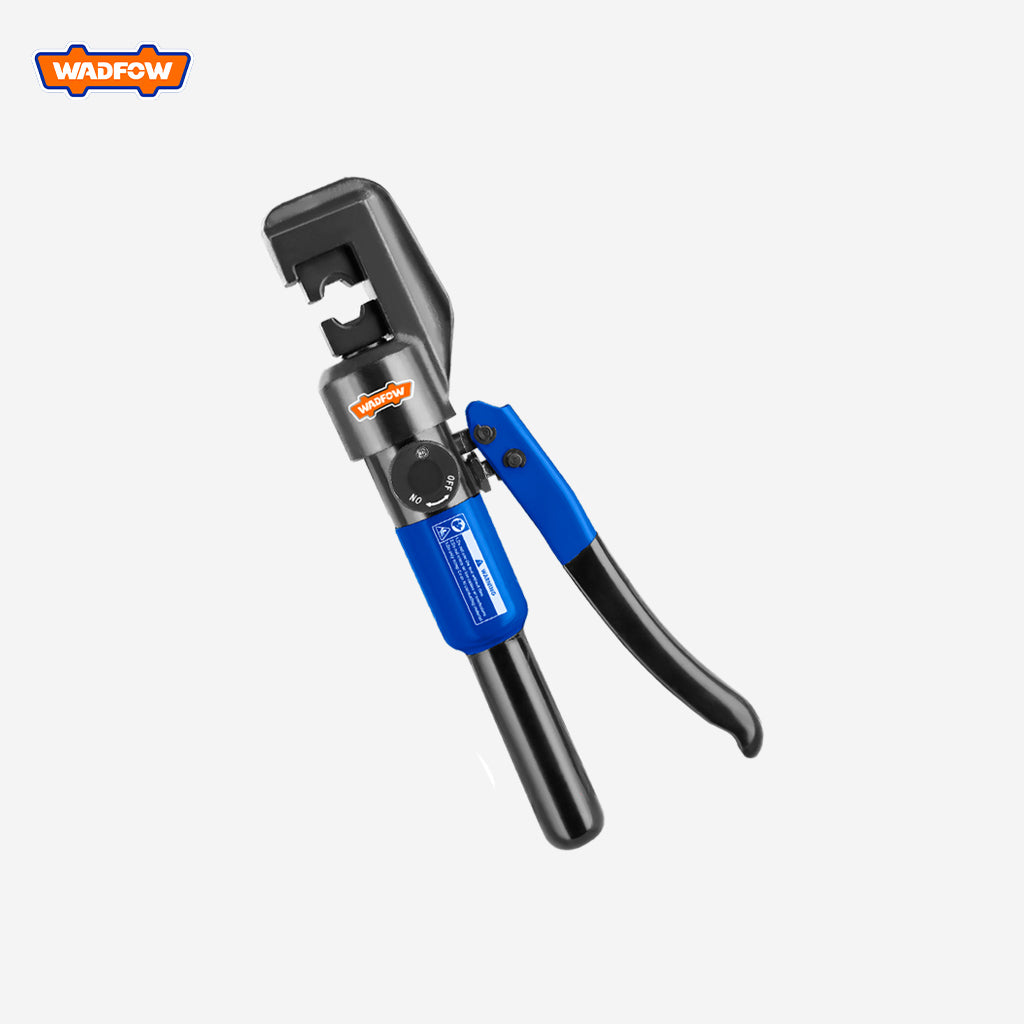

Model: WHT1D70

Specification

Crimping Range: Copper (Cu) 4-70 mm²

Crimping Force: 45 kN

Crimping Type: Hexagon Crimping

Stroke: 11 mm

Length: Approximately 310 mm

Weight:

Tool: Approximately 1.80 kg

Box: 1.1 kg

Packaging: BMC (Bulk Molding Compound) case

Accessories Included:

  • Crimping Dies: 9 dies - 4, 6, 8, 10, 16, 25, 35, 50, 70 mm²
  • Sealing O-ring Set: 1 set

Features:

  • High-Capacity Crimping: Suitable for crimping a wide range of copper cable sizes, from 4 mm² to 70 mm².
  • Powerful Performance: Delivers a strong crimping force of 45 kN for secure and reliable connections.
  • Hexagon Crimping: Creates hexagon-shaped crimps for a strong and lasting hold.
