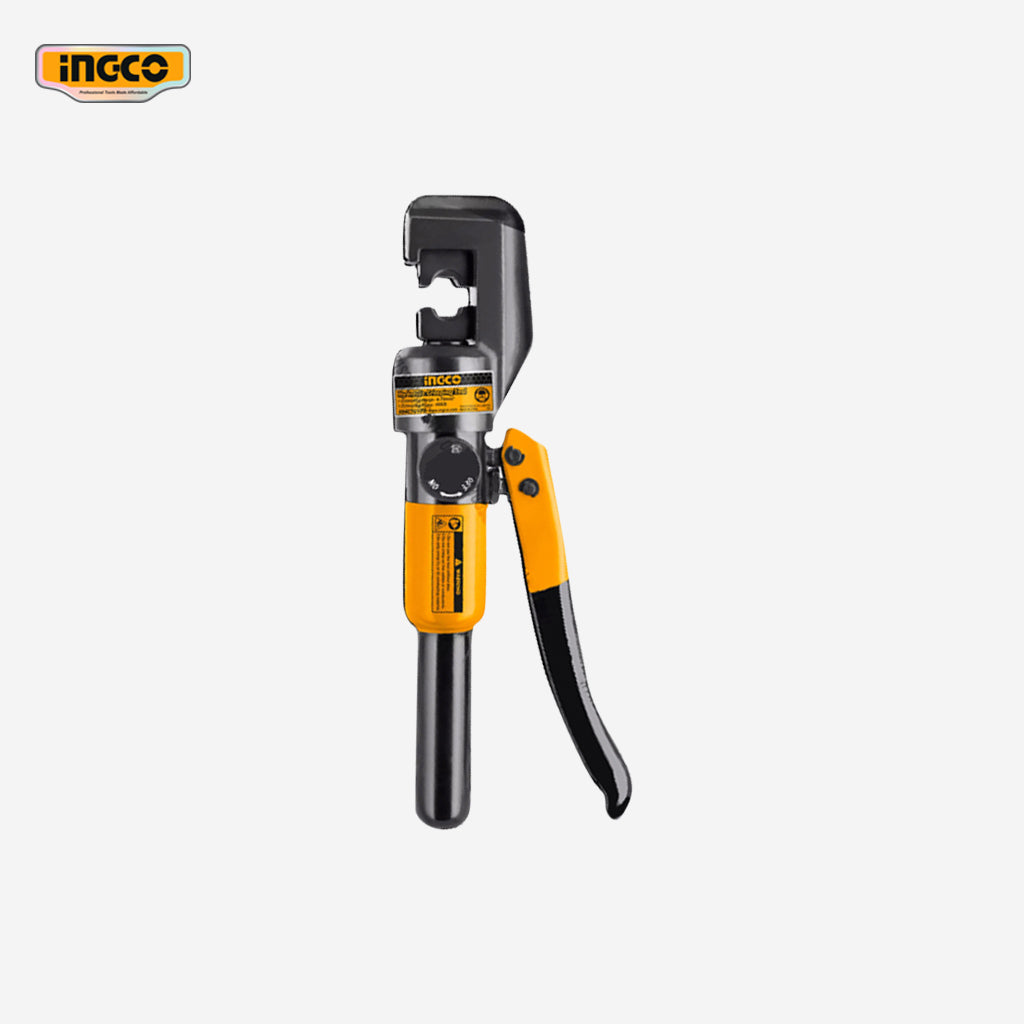

Model: HHCT0170

Specification

Crimping Range: 4-70 mm²

Stroke: 14 mm

Crimping Force: 45 kN

Crimping Type: Hexagon Crimping

Length: Approximately 310 mm

Hydraulic Oil: T15#

Working Temperature: 20°C - 40°C

Accessories Included:

  • Crimping Die: 4 mm², 6 mm², 8 mm², 10 mm², 16 mm², 25 mm², 35 mm², 50 mm², 70 mm²
  • Sealing O-Ring (1 set)
  • Manual
  • Carrying Case

Features:

  • Capable of crimping a wide range of cable sizes from 4 to 70 mm²
  • High crimping force of 45 kN ensures secure connections
  • Hexagon crimping design provides uniform pressure and reliable performance
  • Includes a variety of crimping dies for different cable sizes
  • Compact design for easy handling and portability
  • Suitable for use within specified temperature range for optimal performance
