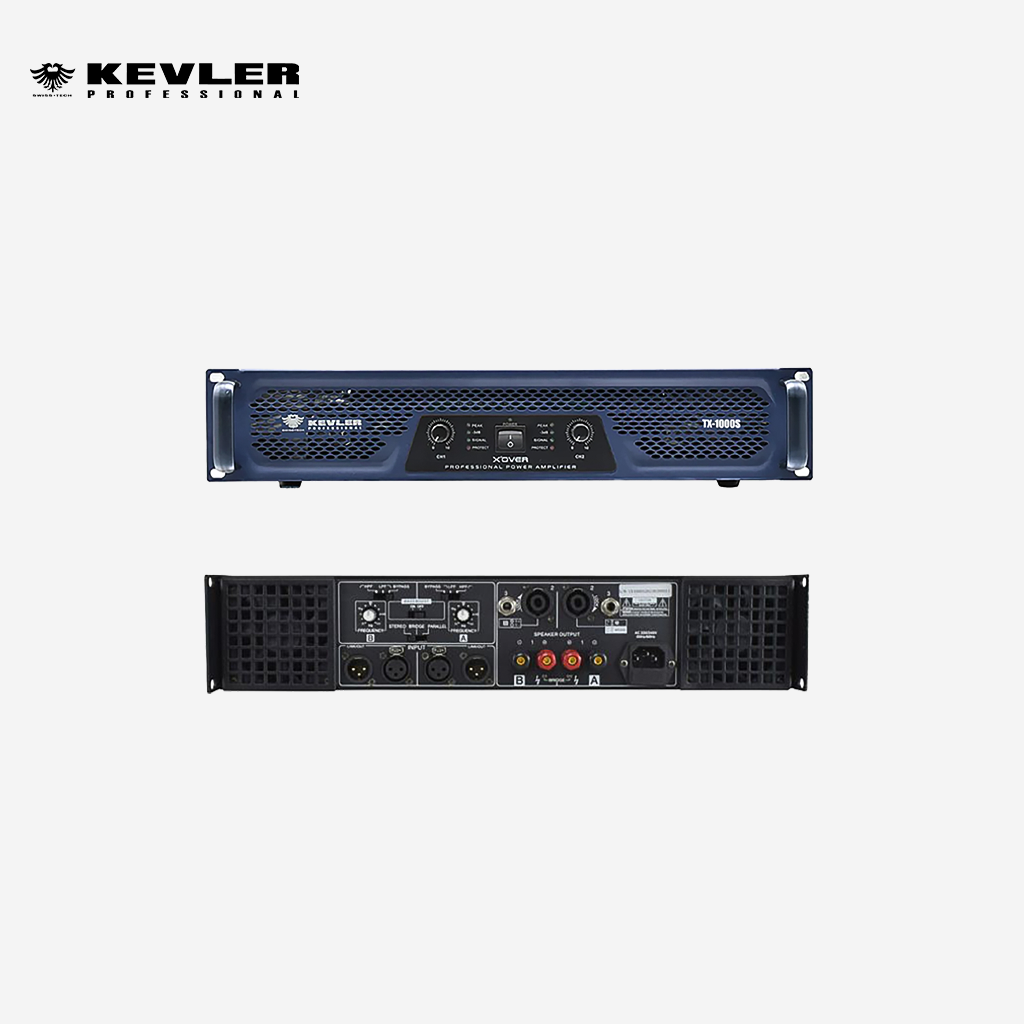

Model: TX-1000S
Specification:
Stereo Power @ 8Ω: 2 x 1000W
Stereo Power @ 4Ω: 2 x 1500W
Stereo Power @ 2Ω: 2 x 2000W
Bridge Mono Power @ 8Ω: 2500W
Bridge Mono Power @ 4Ω: 3000W
Signal to Noise Ratio: 105dB
Slew Rate: 80v/us
Damping Factor: 500:1
Frequency Response: ± 0.1dB, 20Hz-20KHz
Total Harmonic Distortion: ≤0.06% @ Rated Power, 8Ω, 1KHz
Input/Output Connectors: Female XLR Balanced / Male CLR Balanced (thru)
Input Sensitivity: 0.775V, 1.0V, 1.44V
Input Impedance: 20KΩ Balanced or 10KΩ Unbalanced
Crosstalk: ≤0.7dB
LED Indicators: Signal, Protect, Peak
Class: H
Power Supply & Fuse: 220V / 60Hz T20A
Net Weight: 20.4kg
Dimensions: 48.5(W) x 48(D) x 9.5(H)cm
Features:
- High current toroidal transformer, stable at 2Ω
- Independent level control per channel for better sound customization
- Dual variable speed fans for effective cooling
- Stereo, Parallel, and Bridge mode selection for flexible operation
- HPF/BYPASS/LPF selection for each channel with adjustable crossover frequency (25Hz-150Hz)
- Bass boost feature for enhanced low-frequency performance
- Balanced XLR input and output (thru)
- Speak-on, PL, and binding post speaker output options
- Robust all-steel 2U rackmount chassis for durability
- Built-in active crossover to optimize subwoofer and driver unit performance
