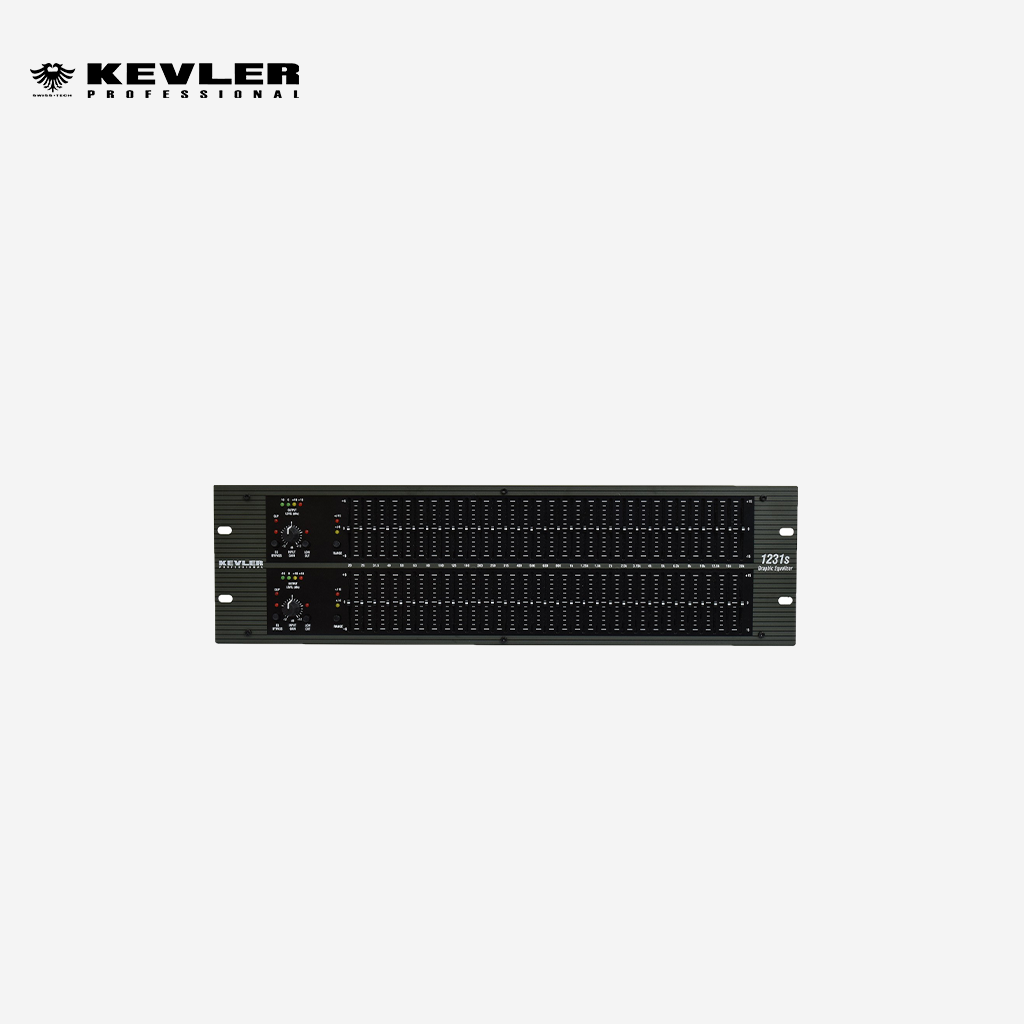

Kevler Professional 1231s Dual 31 Band Graphic Equalizer

Model
1231S

Specification

• Faders: Dual 31 Band with precise 45mm fader control for accurate sound adjustments
• Boost/Cut Range: Switchable boost/cut range of +/- 6dB or +/- 15dB
• RF Filter: Integrated RF filter on input and output
• Connectors: XLR, Barrier Strip, and TRS connectors for flexible audio input and output
• Input Gain: +/- 12 dB input gain for fine-tuning levels
• Low-Cut Filter: 18dB/Octave, 40Hz Bessel low cut filter to eliminate unwanted low frequencies
• Power Supply: Internal shielded power supply for stable performance
• Slider Design: Center detent position on all sliders for easy reset to neutral position
• Meters: 4-stage gain reduction and 4-stage input/output meter for monitoring levels
• Limiter: PeakPlus limiting to protect against signal overload and clipping
• Noise Reduction: bdx Type III noise reduction, providing up to 20dB improved signal-to-noise ratio
• Dimensions:
  • Length: 48.5 cm
  • Width: 20 cm

Accessories Included
None specified.

Features

• RF filter for clean audio signal
• Multiple input/output options including XLR, 1/4", and barrier strip
• Precise fader control for detailed equalization
• PeakPlus limiting for system protection
• Type III noise reduction for enhanced signal clarity
