Konzert 8-Channel Professional Mixer is an easy-to-use audio mixer made for live shows, events, or home use. It lets you play music through Bluetooth or USB and includes 99 built-in sound effects like echo and reverb. Each channel has tone controls, and it has special outputs for a subwoofer (with low-pass filter) and aux send for extra speakers or effects. It's strong, portable, and great for anyone needing clear sound and simple controls.
Features
Aux output for extra speakers or effects

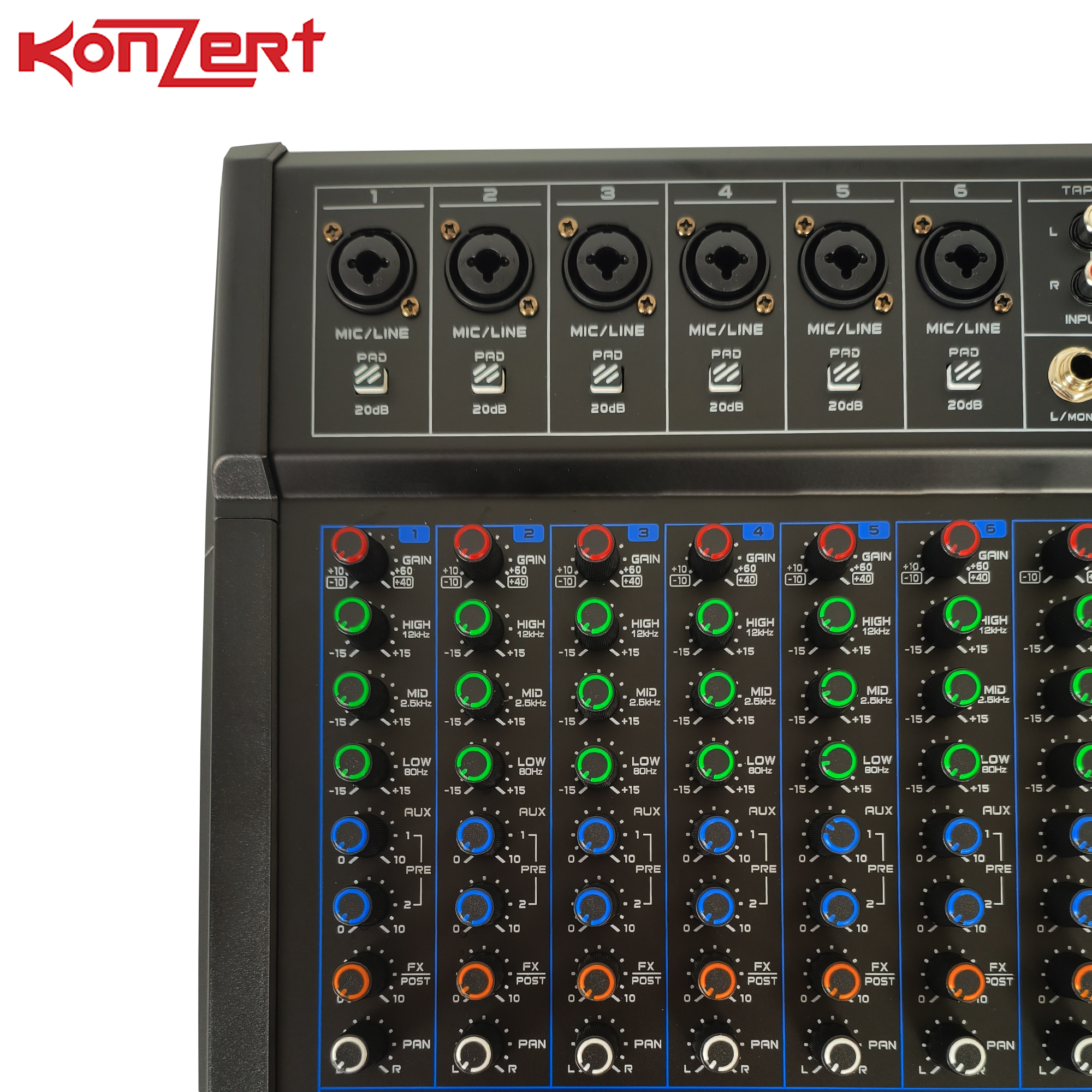

Tone controls (bass, mid, treble) on each channel
Strong and durable metal body
Phantom power for condenser microphones
Main and headphone outputs for monitoring
Bluetooth for wireless music streaming
USB port for music playback and recording
Specification
Frequency Response : 20Hz–20kHz ±1dB ±4dBu@1kHz
Total Harmonic Distortion : <0.5% @ +4dBu (22Hz–22kHz)
MIC/LINE Input Channels : 6 (Combo Jack)
STEREO Input : 1 (7/8)
TAPE (RCA) : L/R
MP3 : 1
USB Sound Card : 2.0 Type-A
Bluetooth : 1
REC (RCA) : L/R
Main (XLR) : L/R
Phones (6.35 Jack) : 1
Monitor Output : L/R (6.35 Jack)
Subwoofer Output : L/R (6.35 Jack)
AUX Send 1 : 1 (6.35 Jack)
AUX Send 2 : 1 (6.35 Jack)
FX Out : 1 (6.35 Jack)
MUTE/PFL : For each channel
EQ (3-Band)
-High: ±15dB @ 12kHz
-Mid: ±15dB @ 2.5kHz
-Low: ±15dB @ 80Hz
Peak LED : Lights up when post EQ signal reaches 3dB below clipping
Level Meter : 2×12-segment LED meter (CLIP, +10, +7, +4, +2, 0, -2, -4, -7, -10, -20, -30dB)
Effects/FX : 99 Digital Effects
Phantom Power Voltage : +48V DC

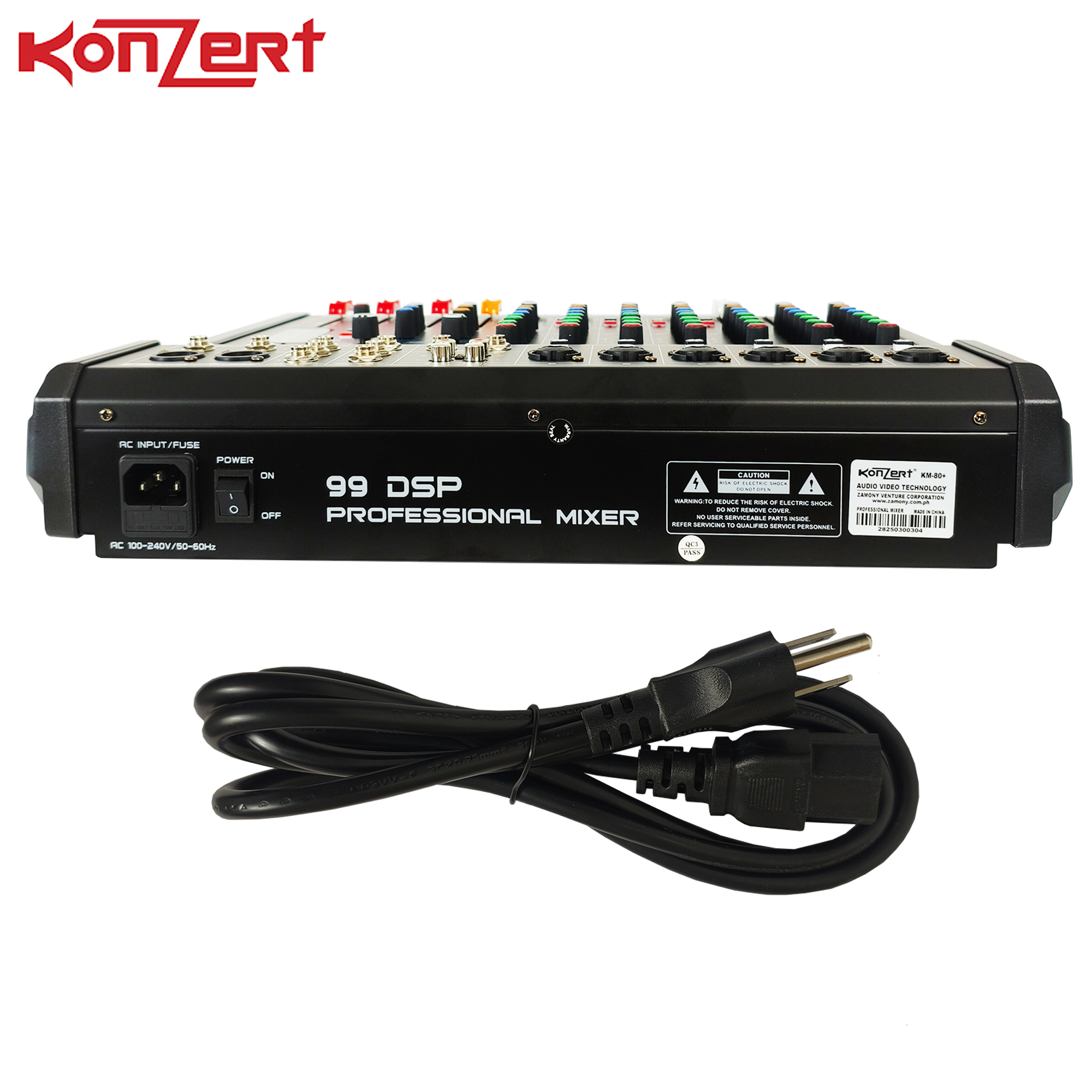

Power Source : AC 100–240V (50–60Hz)
Power Consumption : 25W
Package Includes:
1x Power Cord
1x User Manual
