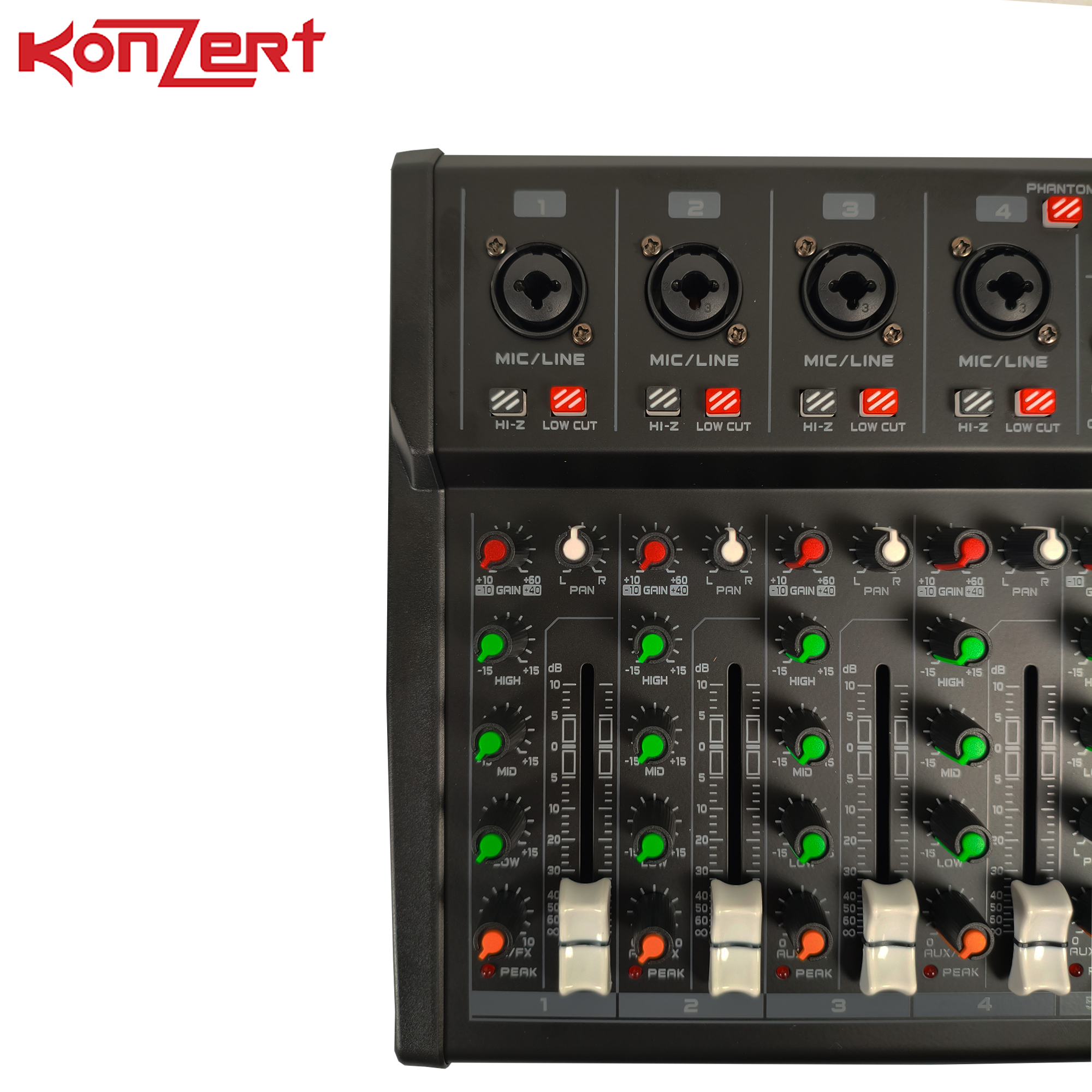

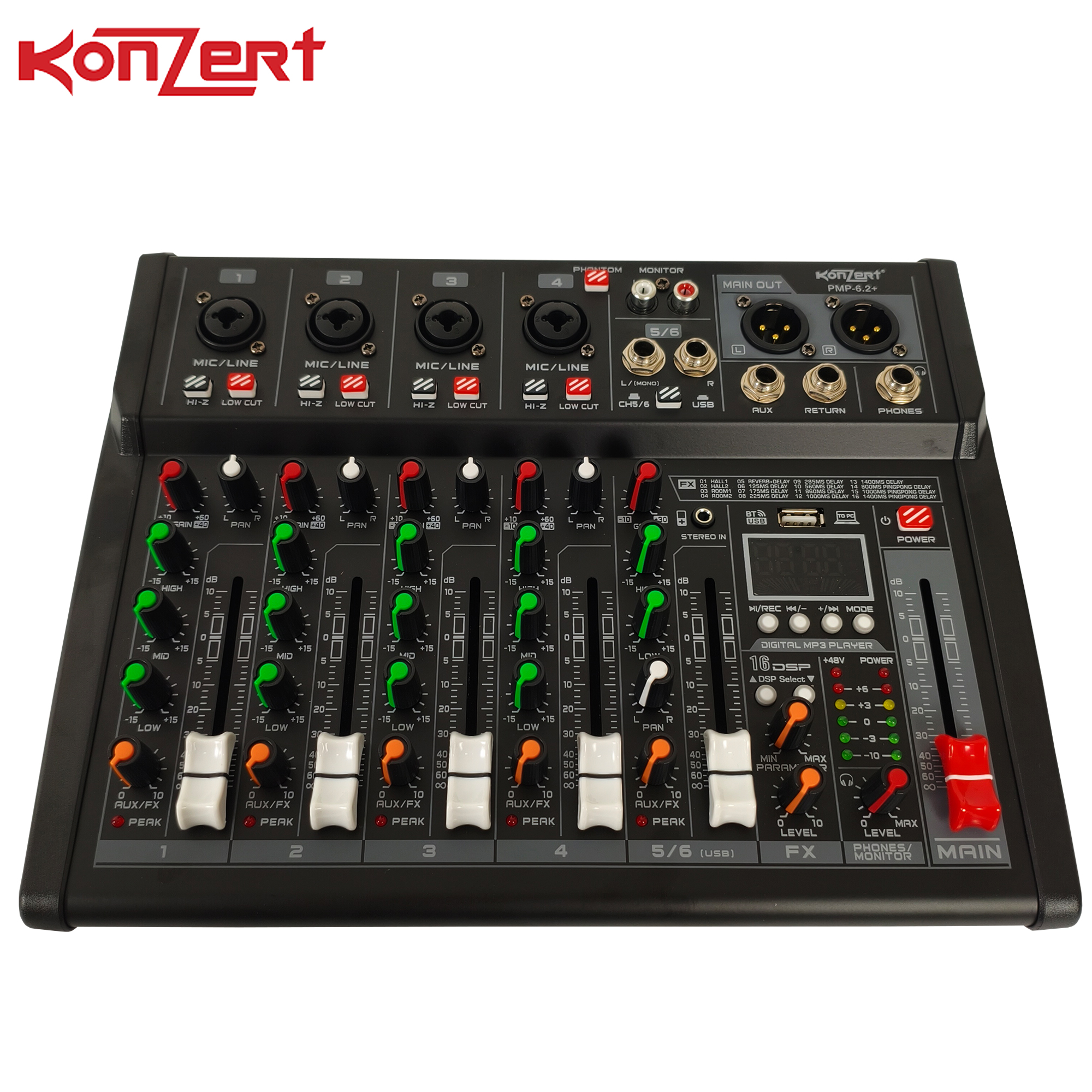

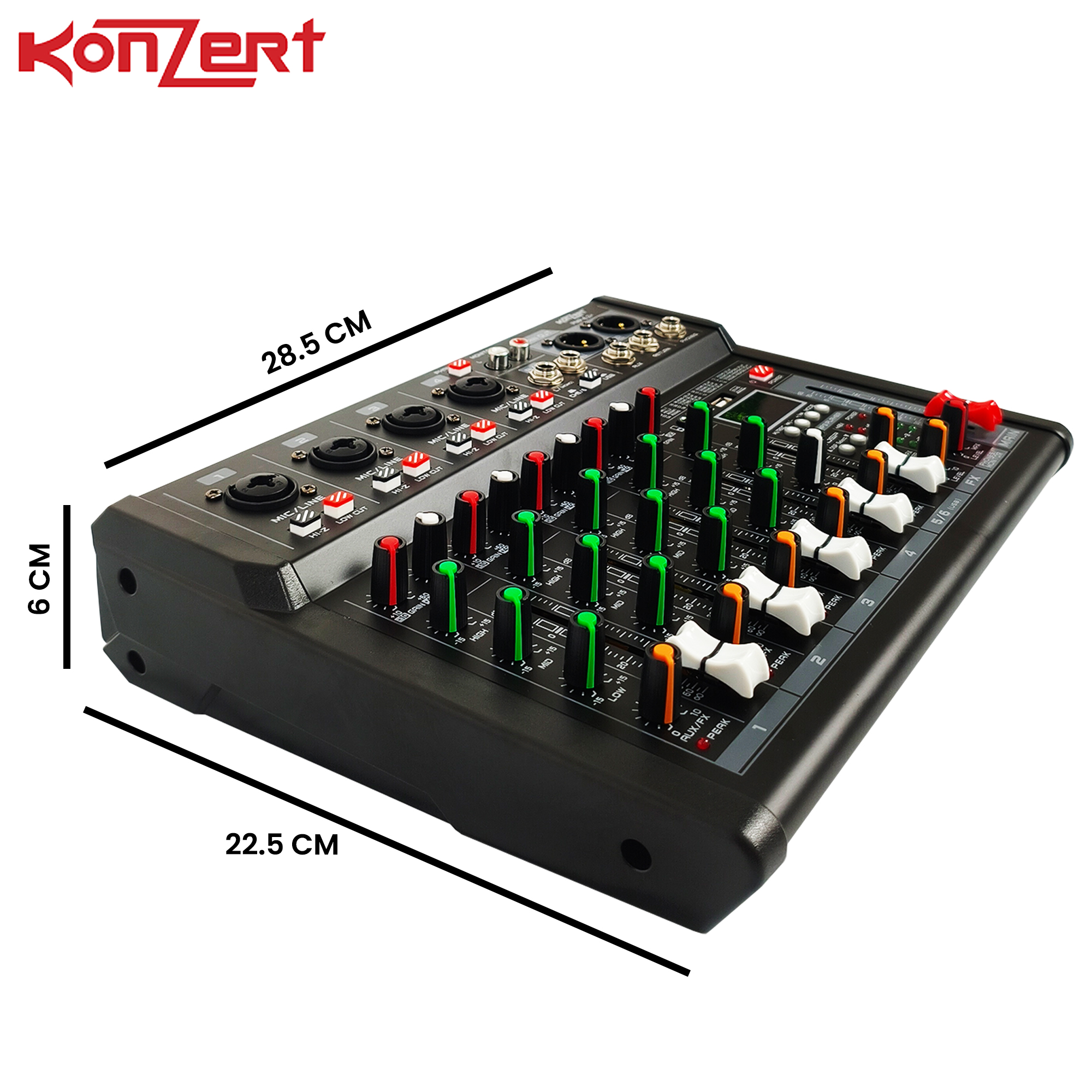

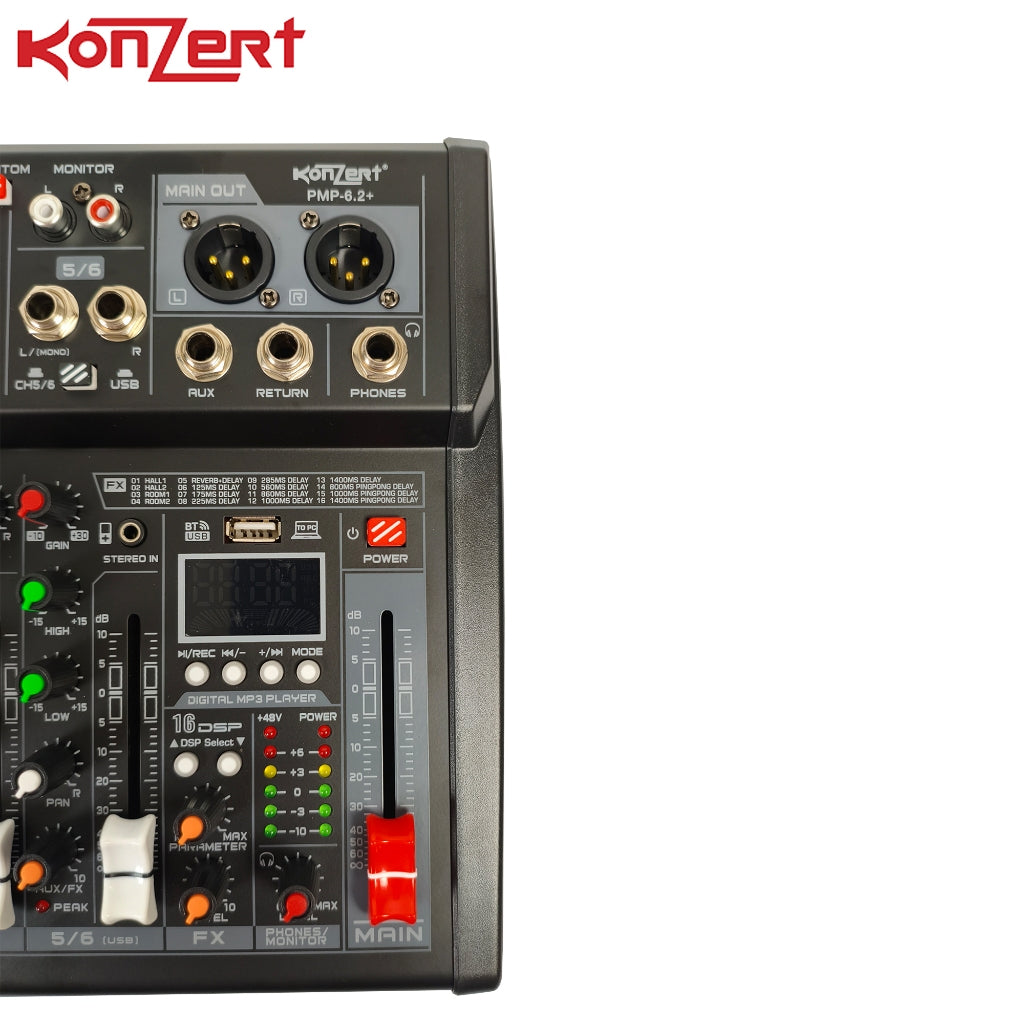

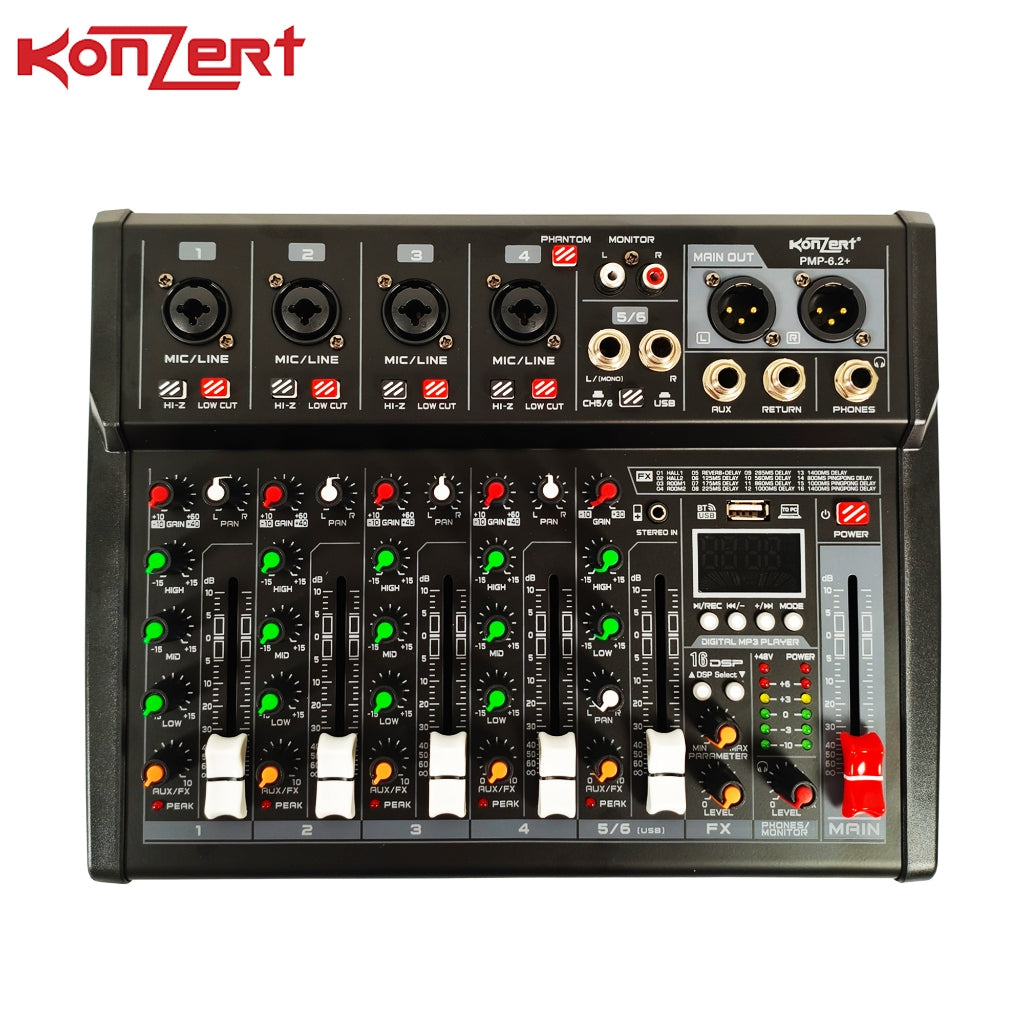

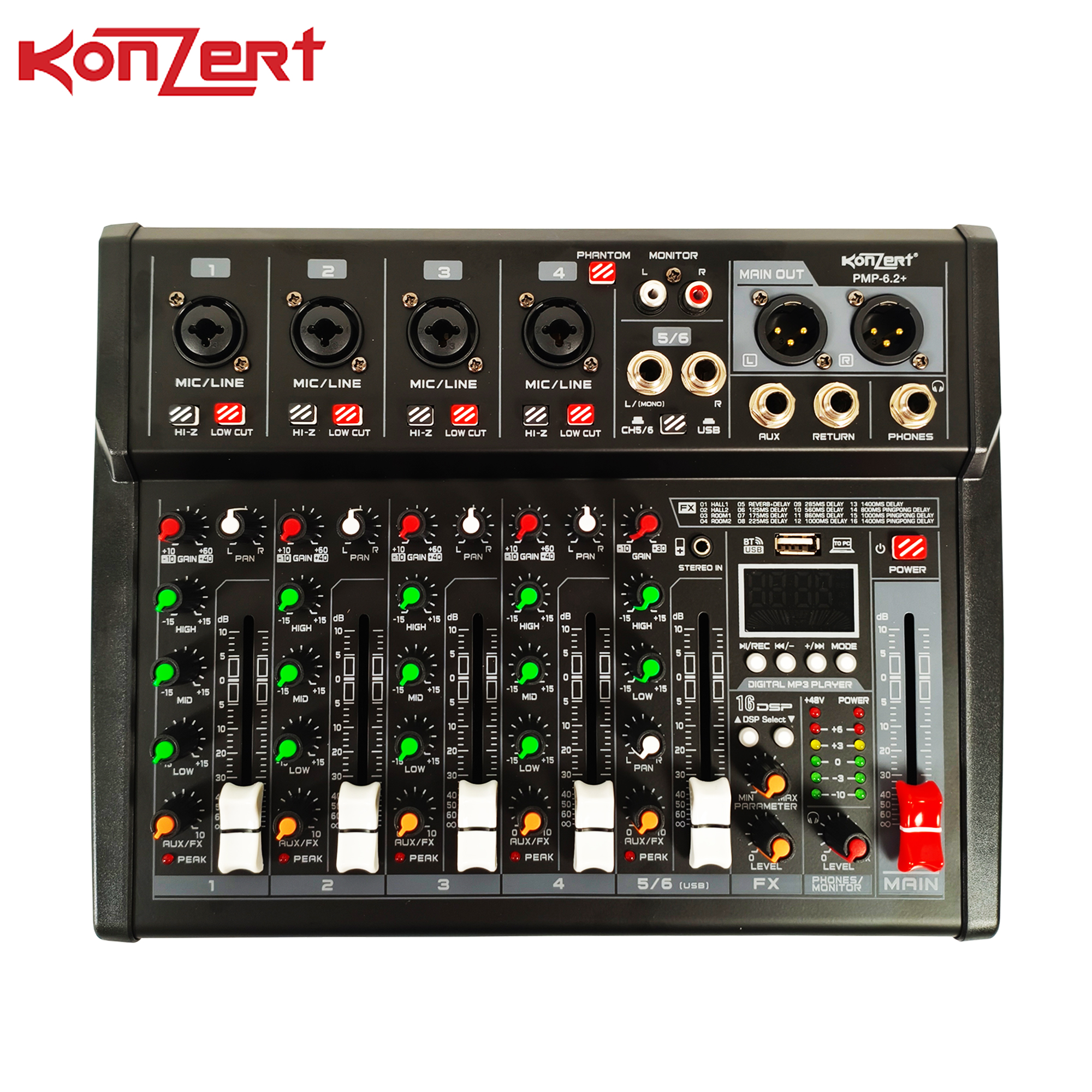

Konzert 6 CH Portable Mixer is a small and easy-to-use audio mixer perfect for live shows, home use, or recording. It has inputs for both mics and
instruments, built-in EQ and 16 sound effects, and lets you play music through USB or Bluetooth. It also works as a PC sound card for recording or
streaming. The mixer uses XLR/PL combo jacks for flexible connections.
Features
Aux output for extra speakers or effects
Tone controls (bass, mid, treble) on each channel
Strong and durable metal body
Phantom power for condenser microphones
Main and headphone outputs for monitoring
Bluetooth for wireless music streaming
USB port for music playback and recording
Specification
Model : PMP-6.2+
Frequency Response : 20Hz–20KHz ±1dB ±4dBu @1KHz
Total Harmonic Distortion : <0.5% @+4dBu (22Hz–22KHz)
Input Channels : MIC/LINE: 2/4 (Combo jack)
- STEREO: 1 (6.35 Jack)
- MP3: 1
- USB Sound Card: 2.0 Type-A
- Bluetooth: 1
Output Channels : CTRL ROOM/MONITOR: L/R (RCA Jack)
- Subwoofer Out: 1
- Phones: 1 (6.35 Jack)
- Main Out: L/R (XLR Jack)
- 2-Track (RCA): 1
Auxiliary : AUX Stereo In: 1 (3.5 Jack)
- AUX Mic In: 1 (6.35 Jack)
- AUX Out: 1 (6.35 Jack)
- Return: 1 (6.35 Jack)
Input Channel Function : EQ:
- High: ±15dB @12KHz shelving
- Mid: ±15dB @2.5KHz shelving
- Low: ±15dB @80Hz shelving
Peak Function : LED turns on when signal is too high
Level Meter : 2×5-segment LED meter (+6, +3, 0, -3, -10)
Effects : 16 DSP (Hall, Room, Reverb, etc.)
Phantom Power Voltage : +48V DC
Power Input : EXT. DC IN: 5V–1A/Type-C
Power Consumption : 5W
Package Includes:
1x Power Cord
1x User Manual
