Specification

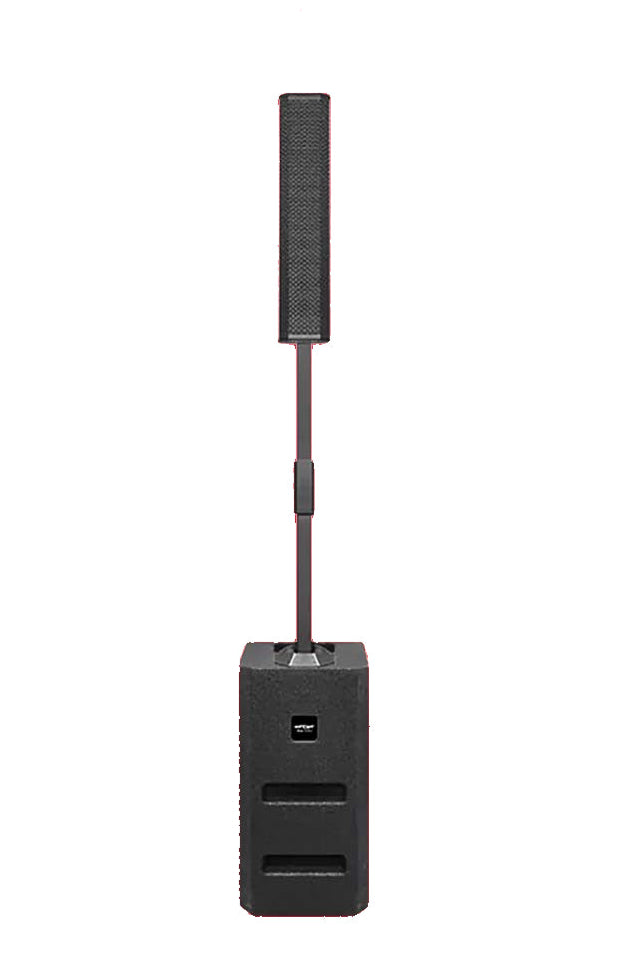

Model: SOUNDPOST 8+
Professional Column Speaker
Frequency Response (-3dB): 42Hz-20Khz
Frequency Range (-10dB): 40Hz-20Hz
Low-Frequency Design: 8" bandpass
Mid-High Design: 4x2.3" linear array design
Low-Frequency Driver: 8" with 25mm coil
High-Frequency Driver: 2.3" with 19mm coil fullrange
Maximum SPL: 122dB
Coverage (HxV): 100° x 40°
Amplifier Rating: 300W
Low-Frequency Channel Rating: 150W
High-Frequency Channel Rating: 150W
Crossover Frequency: 4th / 200hz DSP
Connectors:
2x XLR/TRS Combo Jack Input
1x Stereo RCA Input
1x Wireless Bluetooth Audio Input
1x LR THRU Output
ENCLOSURE:
SUB: 12mm MDF
Column: 12mm MDF
Pole: Aluminum
Grille: Steel with Black or white powder coat
Color: Black or white
Dimensions: (W x H x D)
SUB: 258 x 517 x 330
Column: 96 x 472 x 103
Pole: 35 x 800 x 50
Total Height: 1595mm
NET WEIGHT:
SUB: 10KG
Column: 1.95KG
Pole: 0.9KG
Power Consumption: 220V AC, 50-60Hz, 1.5 - 0.6A
Model: SOUNDPOST 15+
Professional Column Speaker
Frequency Response (-3dB): 36Hz-20Khz
Frequency Range (-10dB): 30Hz - 20Hz
Low-Frequency Design: 15" bandpass
Mid-High Design: 8 x 3.5” line source with phase plug
Low-Frequency Driver: 15" with 65mm coil
High-Frequency Driver: 3.5" with 25mm coil fullrange
Maximum SPL: 130dB
Coverage (HxV): 140° x 40°
Amplifier Rating: 1200W
Low-Frequency Channel Rating: 600W
High-Frequency Channel Rating: 600W
Crossover Frequency: 4th / 200hz DSP
Connectors:
2x XLR/TRS Combo Jack Input
1x Stereo RCA Input
1x Wireless Bluetooth Audio Input
1x LR THRU Output
ENCLOSURE:
SUB: 15mm Plywood
Column: 9mm Plywood
Pole: Aluminum
Grille: Steel with Black or white powder coat
Color: Black or white
Dimensions: (W x H x D)
SUB: 350 x 710 x 500
Column: 103 x 808 x 180
Pole: 35 x 800 x 50
Total Height: 112000mm
NET WEIGHT:
SUB: 29.9KG
Column: 5.2KG
Pole: 0.9KG
Power Consumption: 220V AC, 50-60Hz, 1.5 - 0.6A
Model: SOUNDPOST 10+
Professional Column Speaker
Frequency Response (-3dB): 42Hz-20Khz
Frequency Range (-10dB): 40Hz-20Hz
Low-Frequency Design: 10" bandpass
Mid-High Design: 8 x 3.5” line source with phase plug
Low-Frequency Driver: 10" with 38mm coil
High-Frequency Driver: 3.5" with 25mm coil fullrange
Maximum SPL: 126dB
Coverage (HxV): 140° x 40°
Amplifier Rating: 1000W
Low-Frequency Channel Rating: 500W
High-Frequency Channel Rating: 500W
Crossover Frequency: 4th / 200hz DSP
Connectors:
2x XLR/TRS Combo Jack Input
1x Stereo RCA Input
1x Wireless Bluetooth Audio Input
1x LR THRU Output
ENCLOSURE:
SUB: 15mm Plywood
Column: 9mm Plywood
Pole: Aluminum
Grille: Steel with Black or white powder coat
Color: Black or white
Dimensions: (W x H x D)
SUB: 315 x 625 x 410
Column: 103 x 808 x 180
Pole: 35 x 800 x 50
Total Height: 112000mm
NET WEIGHT:
SUB: 15.5KG
Column: 5.2KG
Pole: 0.9KG
Power Consumption: 220V AC, 50-60Hz, 1.5 - 0.6A
Model: SOUNDPOST 12+
Professional Column Speaker
Frequency Response (-3dB): 42Hz-20Khz
Frequency Range (-10dB): 36Hz - 20Hz
Low-Frequency Design: 12" bandpass
Mid-High Design: 8 x 3.5” line source with phase plug
Low-Frequency Driver: 12" with 51mm coil
High-Frequency Driver: 3.5" with 25mm coil fullrange
Maximum SPL: 128dB
Coverage (HxV): 140° x 40°
Amplifier Rating: 1200W
Low-Frequency Channel Rating: 600W
High-Frequency Channel Rating: 600W
Crossover Frequency: 4th / 200hz DSP
Connectors:
2x XLR/TRS Combo Jack Input
1x Stereo RCA Input
1x Wireless Bluetooth Audio Input
1x LR THRU Output
ENCLOSURE:
SUB: 15mm Plywood
Column: 9mm Plywood
Pole: Aluminum
Grille: Steel with Black or white powder coat
Color: Black or white
Dimensions: (W x H x D)
SUB: 365 x 625 x 450
Column: 103 x 808 x 180
Pole: 35 x 800 x 50
Total Height: 112000mm
NET WEIGHT:
SUB: 19.5KG
Column: 5.2KG
Pole: 0.9KG
Power Consumption: 220V AC, 50-60Hz, 1.5 - 0.6A
