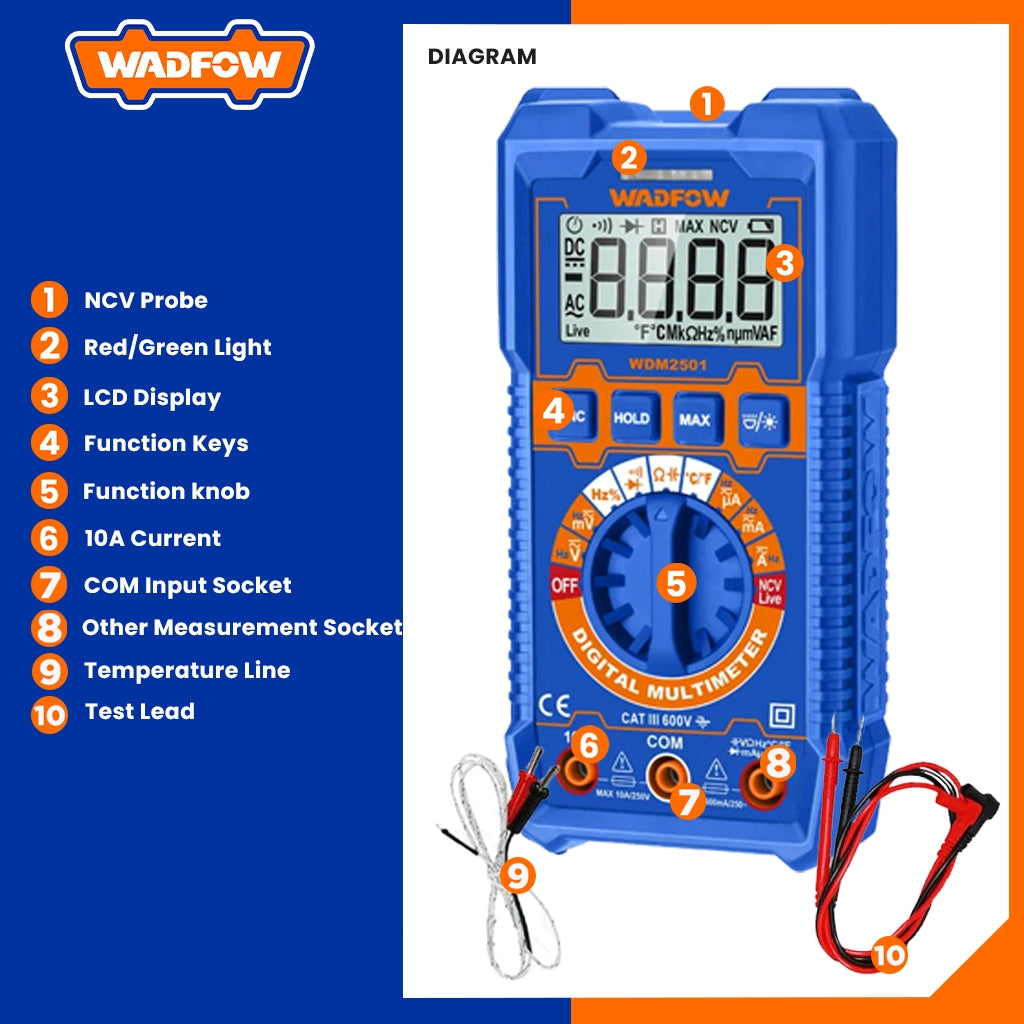

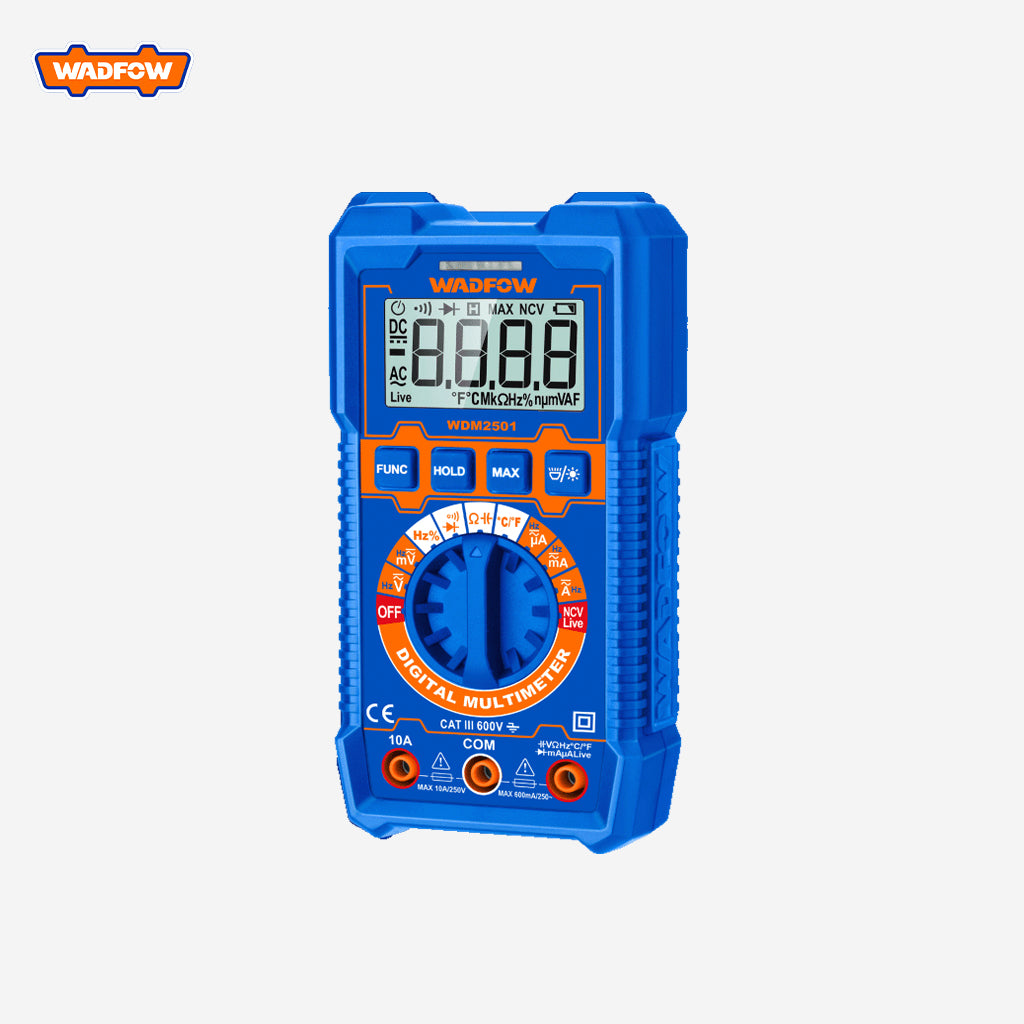

Model: WDM2501

Specification

Display: True RMS, 6000 counts

Resistance: 600Ω/6kΩ/60kΩ/600kΩ/6MΩ/60MΩ

Capacitance: 10nF/100nF/1µF/10µF/100µF /1mF/10mF /100mF

Frequency: 10Hz/100Hz/1kHz/10kHz/100kHz/1mHz/10mHz

Voltage Measurement:

  • DC Voltage: 600mV/6V/60V/600V
  • AC Voltage: 600mV/6V/60V/600V

Current Measurement:

  • DC Current: 600μA/6000μA/60mA/600mA/10A
  • AC Current: 600μA/6000μA/60mA/600mA/10A

Features:

  • Non-contact voltage detection
  • Diode test, Live test, Phase sequence measurement
  • Auto range, Data hold, Low battery indication
  • Auto power-off, Backlight, Temperature measurement
  • Battery measurement



Model: WDM2502

Specification

Display: True RMS, 4000 counts

Resistance: 400Ω/4kΩ/40kΩ/400kΩ/4MΩ/40MΩ

Capacitance: 10nF/100nF/1000nF/10µF/100µF/1000µF/10mF/100mF

Frequency: 10Hz/100Hz/1000Hz/10kHz/100kHz/1000kHz/10MHz

Voltage Measurement:

  • DC Voltage: 400mV/4V/40V/400V/1000V
  • AC Voltage: 4V/40V/400V/750V

Current Measurement:

  • DC Current: 40μA/40mA/400mA/10A
  • AC Current: 40mA/400mA/10A

Features:

  • Non-contact voltage detection, Live line or neutral line distinguish
  • Diode test, Max/Min, Data hold, Low battery indication
  • Auto power-off, Flashlight function, Input jack LED indicator
