MPLUS by Winland 1000VA/600W 8 Sockets UPS (Uninterruptible Power Supply Backup Power Supply M-5810C

Specification

Model: M-5810C

Input :

Normal Voltage: 220/230/240Vac

Voltage Range: -30%, +25%

Frequency: 50/60Hz Auto-sensing

Output:

Voltage Range: +/-10%

Frequency: 50/60Hz +/-1Hz

Waveform: Simulated sinewave

Transfer time: <6ms (typical)

Battery

Recharge time: 5hrs to 90% after complete discharge

Safety protection: Over discharge protection

Function

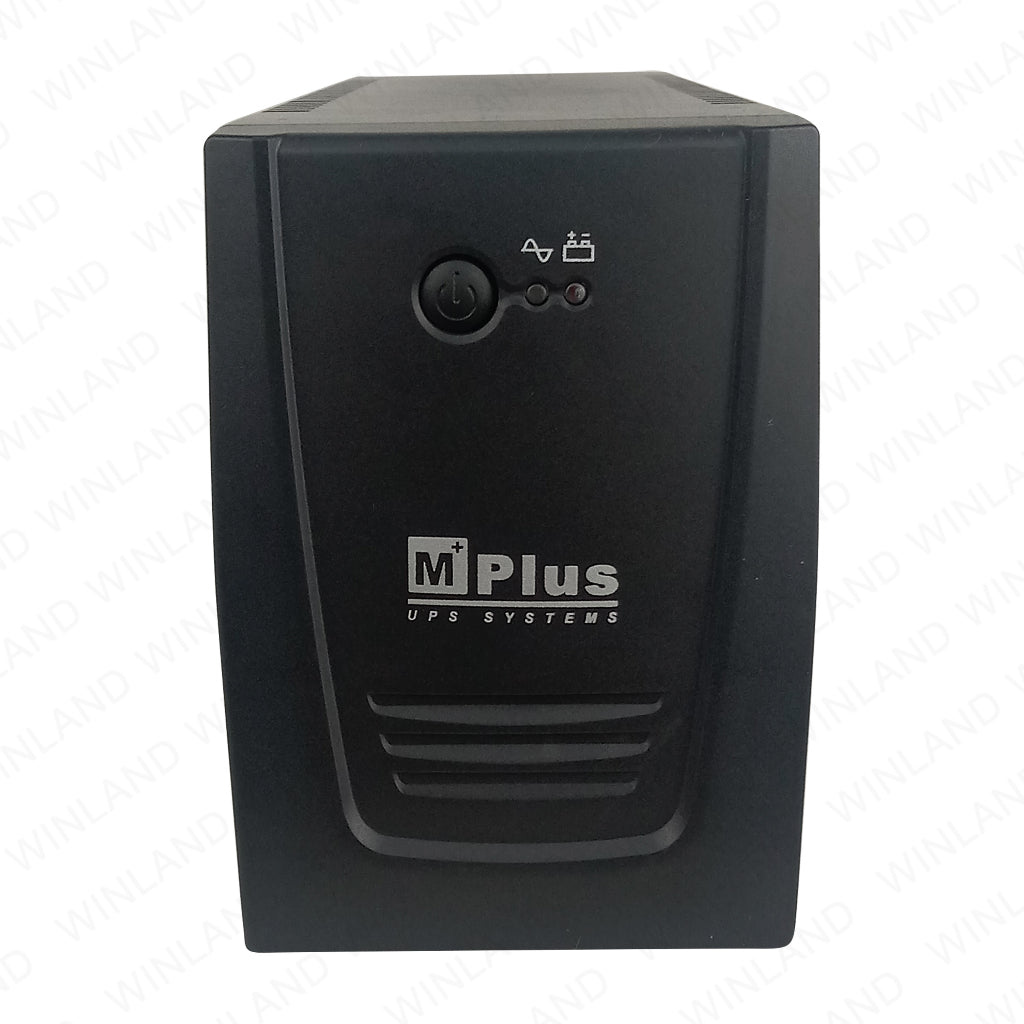

LED display: AC normal (green), battery (red)

Alarm: Buzzer on for back-up mode, battery low, overload

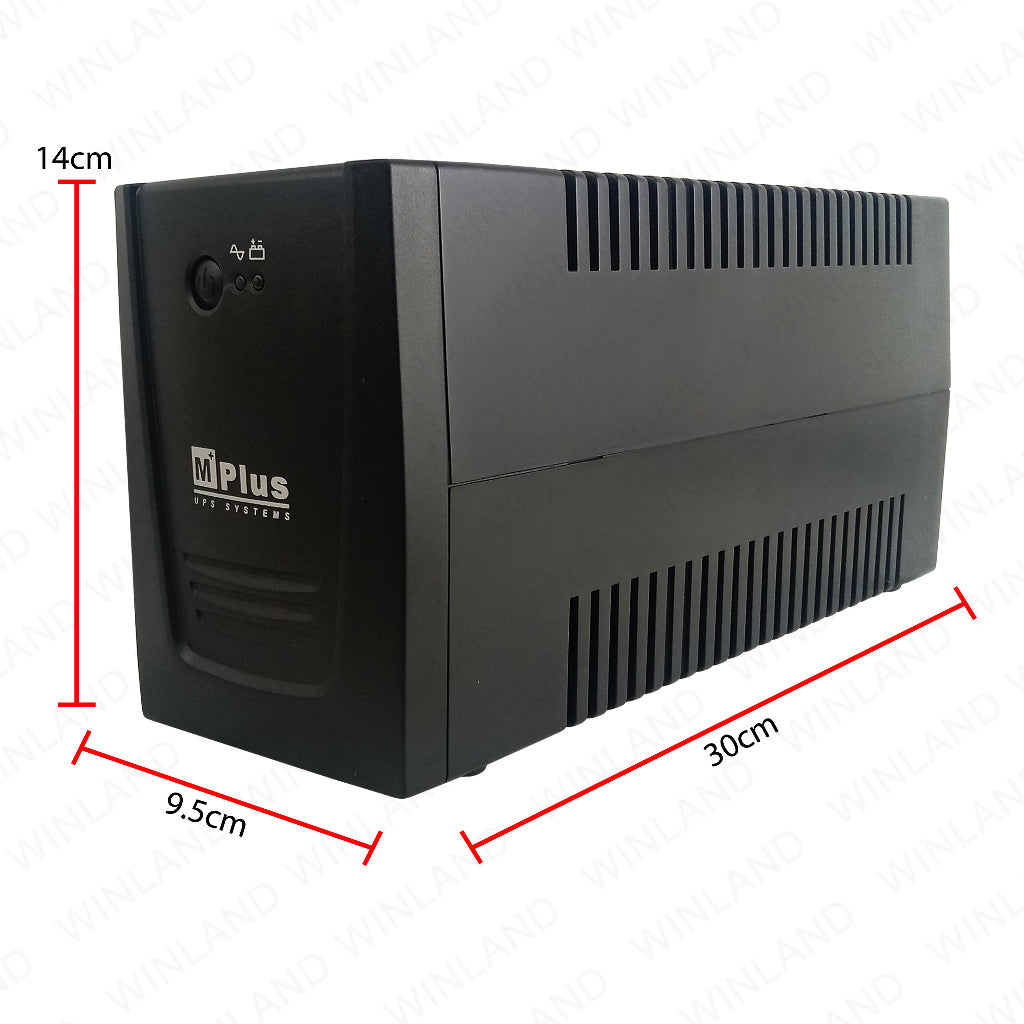

Physical Dimension: 30(L) x 9.5(W) x 14(H)cm

Weight: 5.4kg

Environment

Operating temperature: 0~40°C, 32~104°F

Noise level: <40dB at 1M

Relative Humidity: <95% (non-condensing)

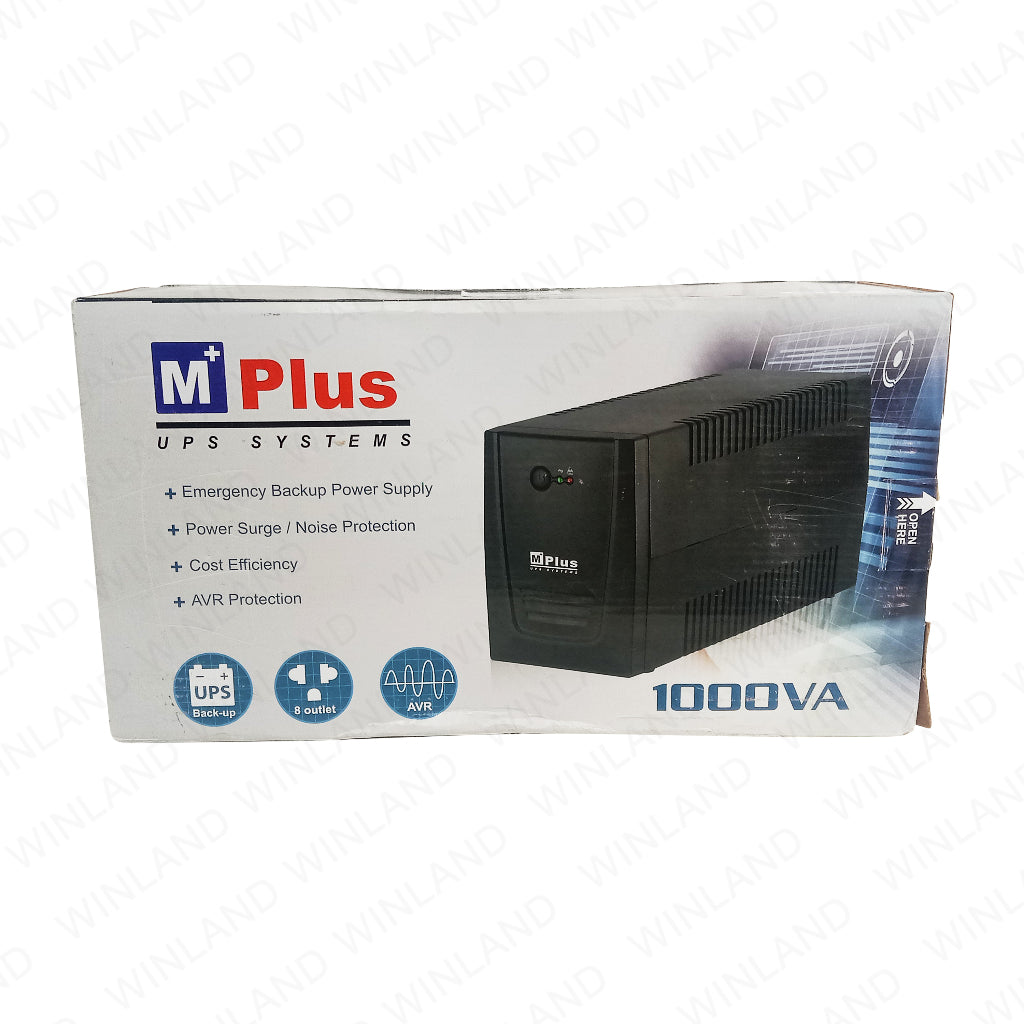

UPS SYSTEMS

_ Emergency back up power supply

_ Power surge / noise protection

_ Cost efficiency

_ AVR protection

Features:

Line interactive UPS design

Controlled by a technologically advanced microprocessor guaranteeing

Equipped with 2-steps boost & 1-steps buck AVR to stabilize output voltage

Built-in DC start function enables UPS to be started without AC power supplied

Constant current, constant voltage battery charger (CCCV battery charger)

No-load shutdown function (UPS green mode)

UPS will charge itself even though power switch is off (off mode charging)

Over / under voltage protection (UPS will go to battery mode)

Cold start function (DC power on)
