Specification

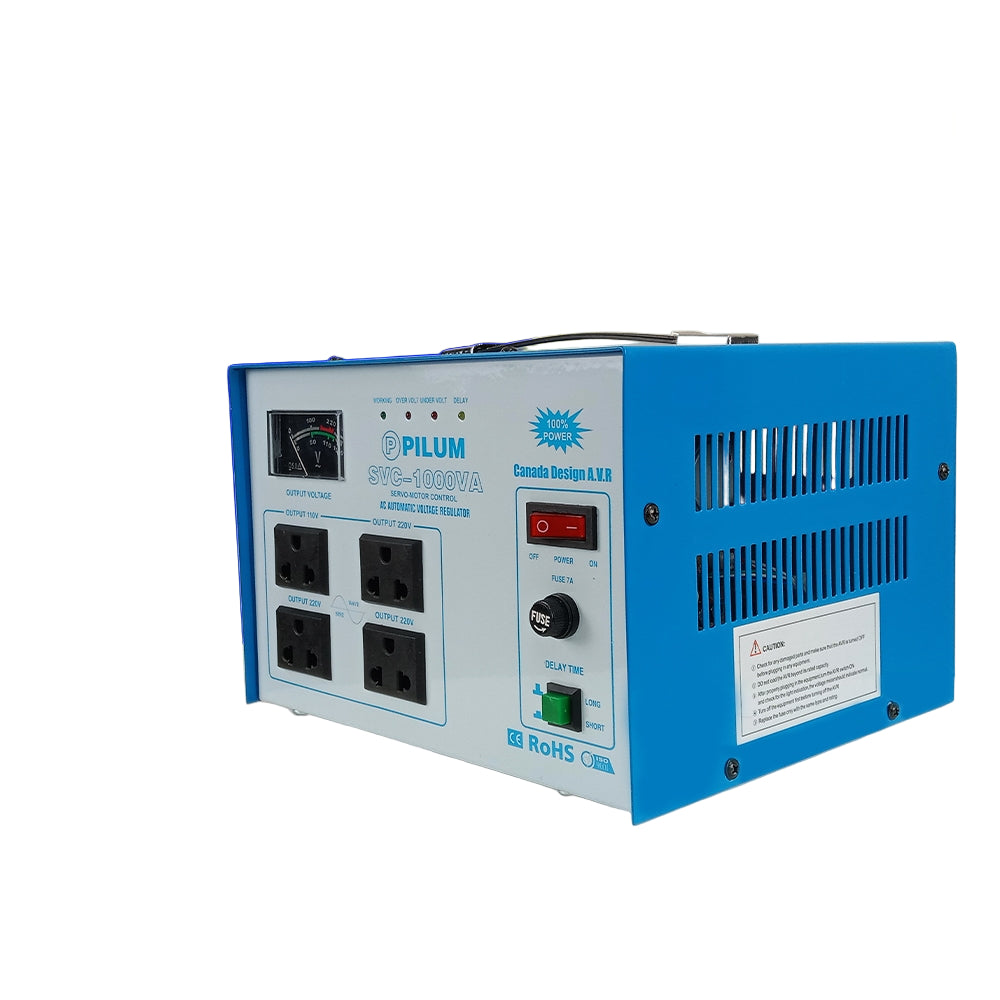

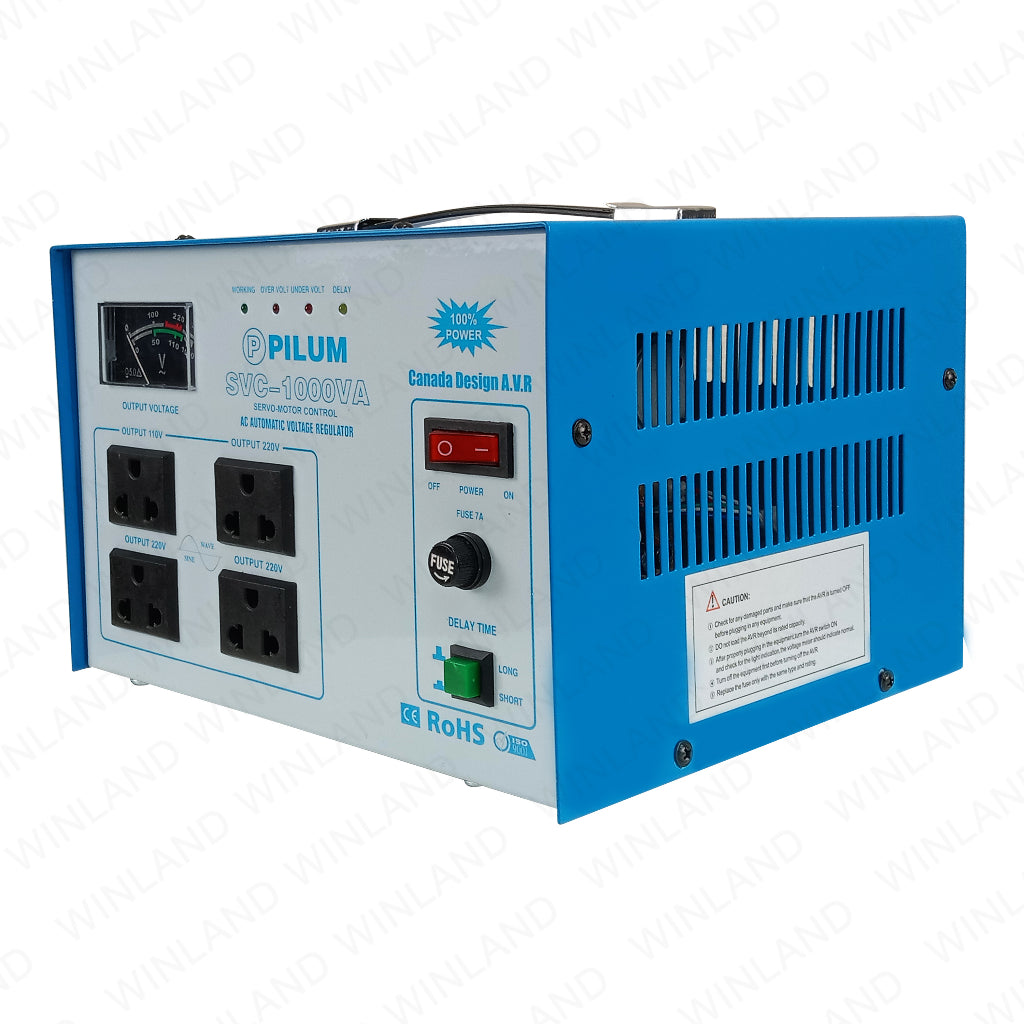

Model: PLSVC-1000VA
100% Efficiency
Rating of output capacity: 1000W

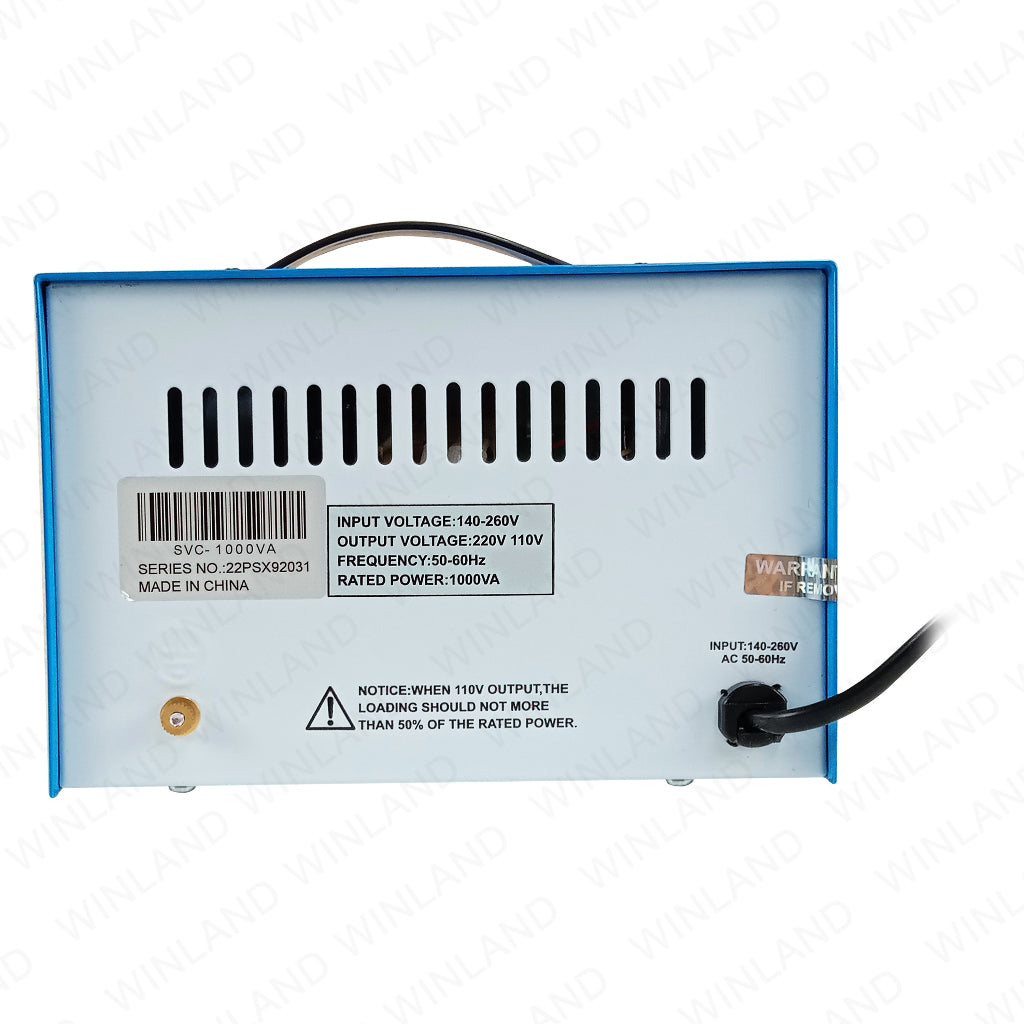

Input Voltage: 140V-260V for 500V-10KVA / 150V-260V for 15KVA-60KVA
Output Voltage: 220V/110V for 500V-10KVA / 220V for 15KVA-60KVA
Accuracy of voltage stabilization: 220V ± 3%; 110V ± 6%
Over-voltage protection value: Phase voltage 246 ± 4V
Under-voltage protection value: Phase voltage 184 ± 4V
Frequency: 50Hz/60Hz
Waveform distortion: No additional waveform distortion
Load power factor: 0.8
Efficiency: ≥ 90%
Adjustable Time: <1.5s (when input voltage has a change of 10%)
Delay time: Long time delay: 5 ± 2min; short time delay: 5 ± 2s
Ingress protection of enclo: IP20
Sure Insulation and thermal endurance class: Class B
Electrical Strength: No flashover or breakdown when at 2000V/min
Insulation resistance: ≥ 5M Ω
Normal service conditions
Ambient temperature: -5°C~+40°C
Relative humidity: less than 95% (at 25°C);
Atmospheric pressure: 86-106kPa;
Working environment; indoor environment where are far away from chemical deposition, dirt, harmful corrosive medium, or flammable/explosive gas
Besides, the altitude is not higher than 1,000m
4 universal sockets
Short circuit protection
Overload Protection
Time Delay Function
Servo Motor Control System

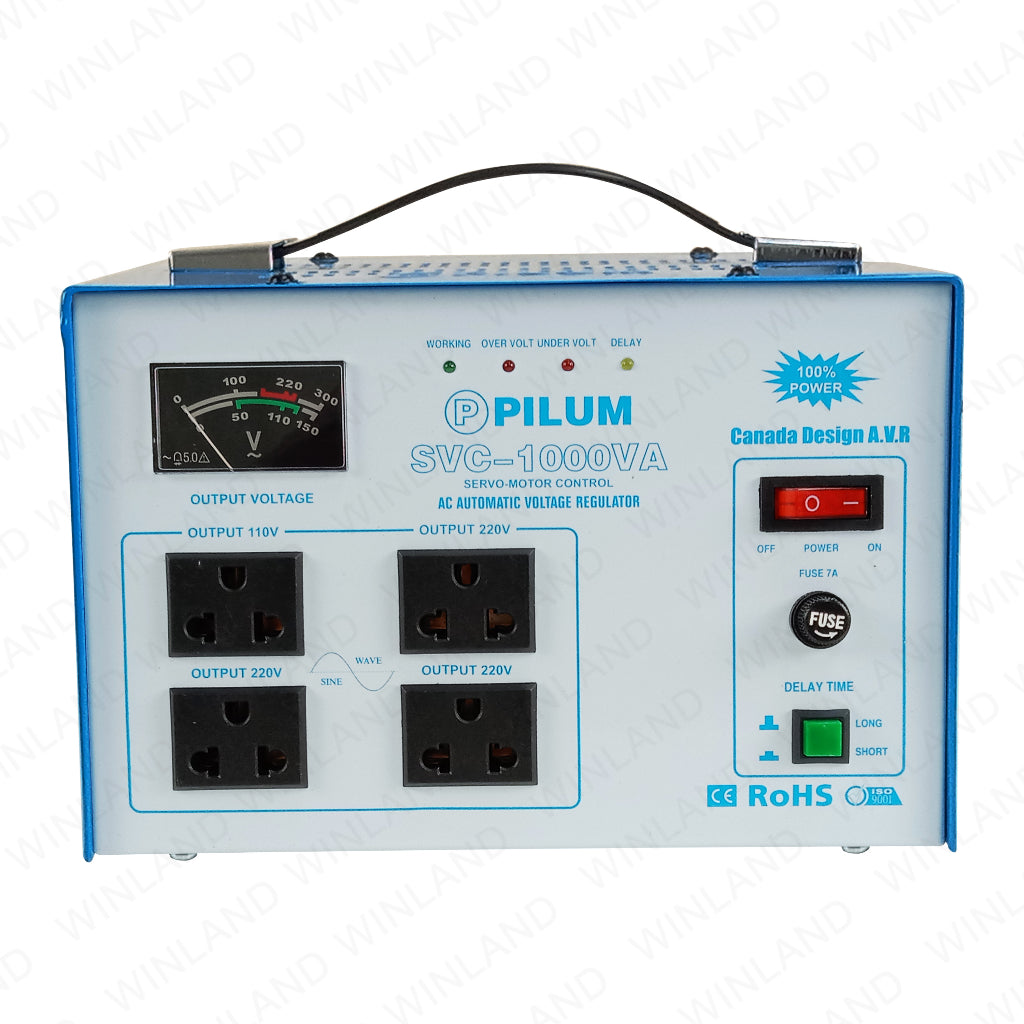

Analog Volt Meter
Weight: 5.45kg
Cord Length: 1.5m

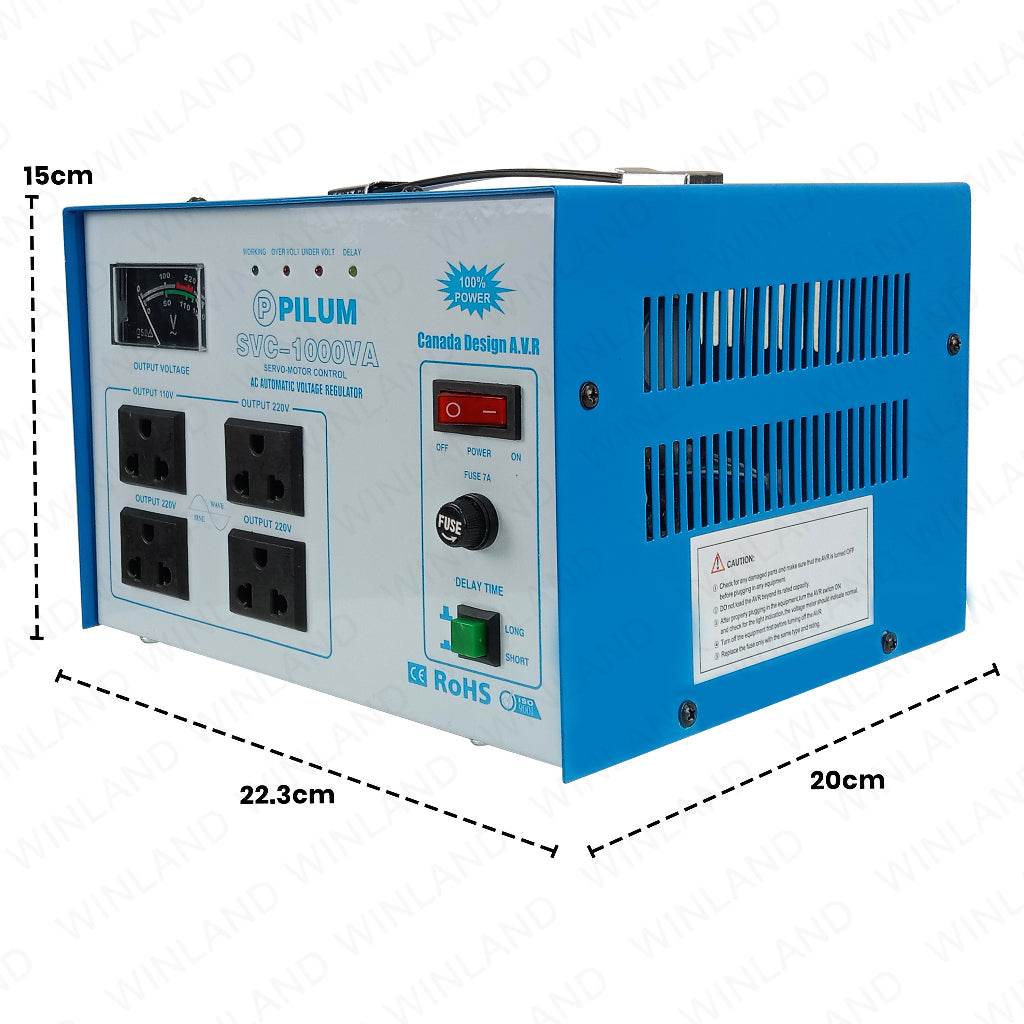

Product Dimension: 22.3(L) x 20(W) x 15(H)cm
