Overview

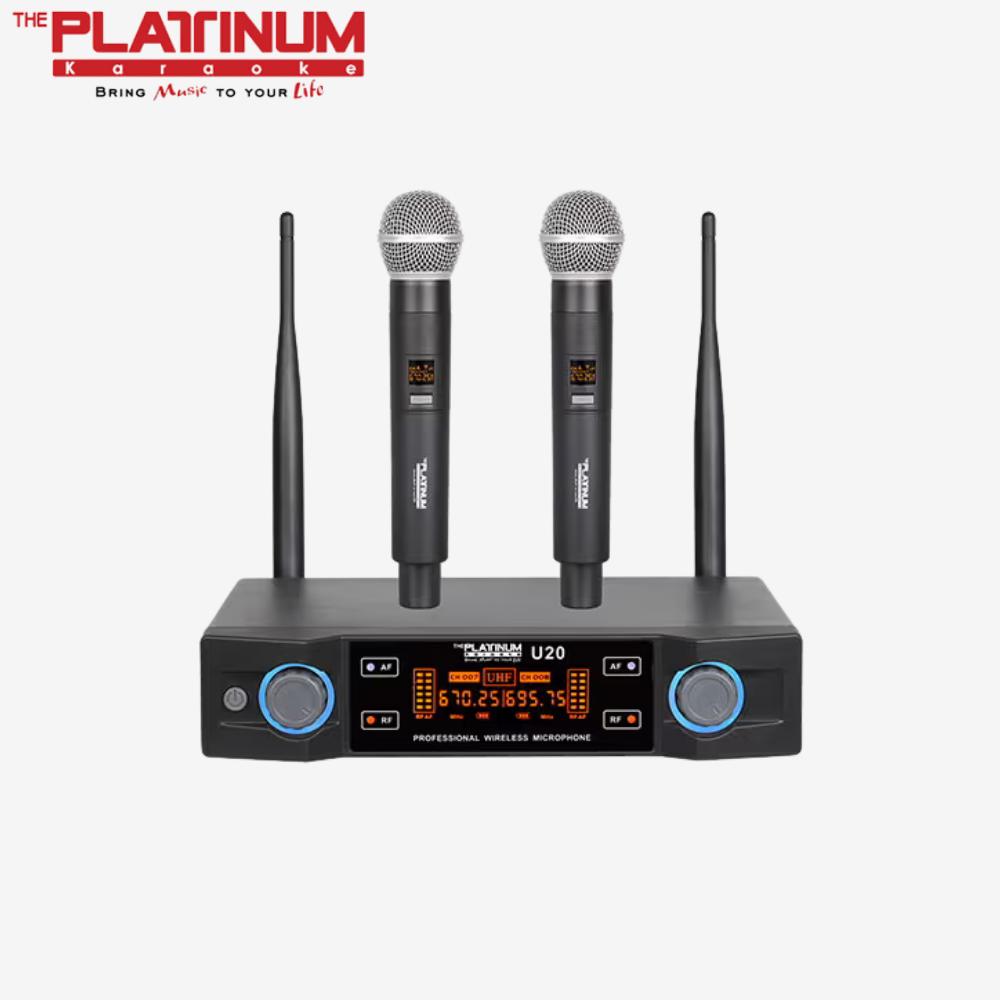

The Platinum U20 2-Channel UHF Wireless Microphone System is built for crystal-clear sound and reliable performance — perfect for karaoke, live performances, events, and public speaking.
With dual handheld microphones and a stable UHF signal, the U20 delivers clear, low-distortion audio even at long range.
Designed for convenience and quality, it features up to 8 hours of battery life, a low-profile receiver, and robust build quality ideal for both home and professional use.
Whether you’re performing on stage or singing at home, the Platinum U20 ensures consistent, high-fidelity wireless sound every time.
Key Features

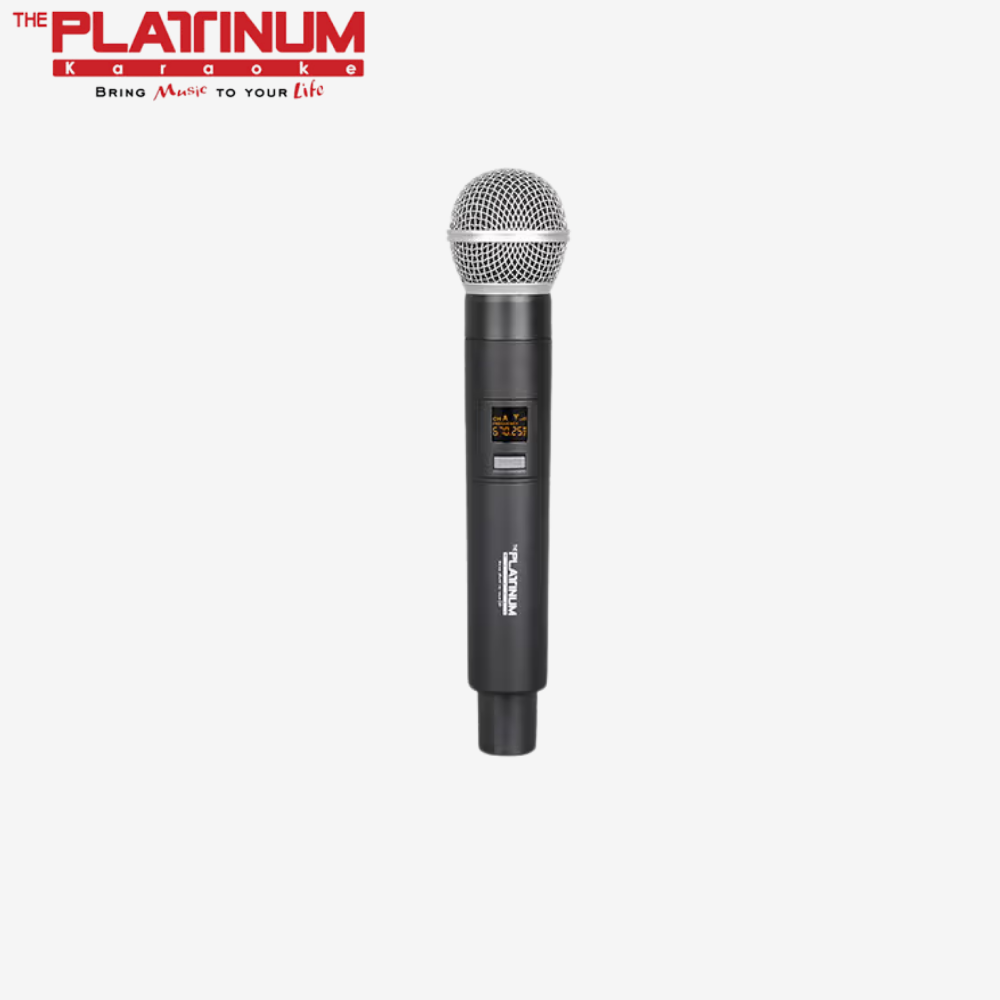

Dual 2-Channel UHF Microphones
Enjoy stable wireless connectivity with two microphones operating on UHF frequencies for reduced interference and clearer vocals.
Clear and Powerful Sound
Delivers a dynamic range of over 110dB with minimal distortion (<0.5%) for studio-quality audio clarity.
Long Battery Life
Each transmitter runs up to 8 hours on AA batteries — perfect for extended performances or karaoke sessions.
Reliable 20-Meter Operating Range
Maintains a strong connection even at distances over 20 meters, giving performers freedom to move.

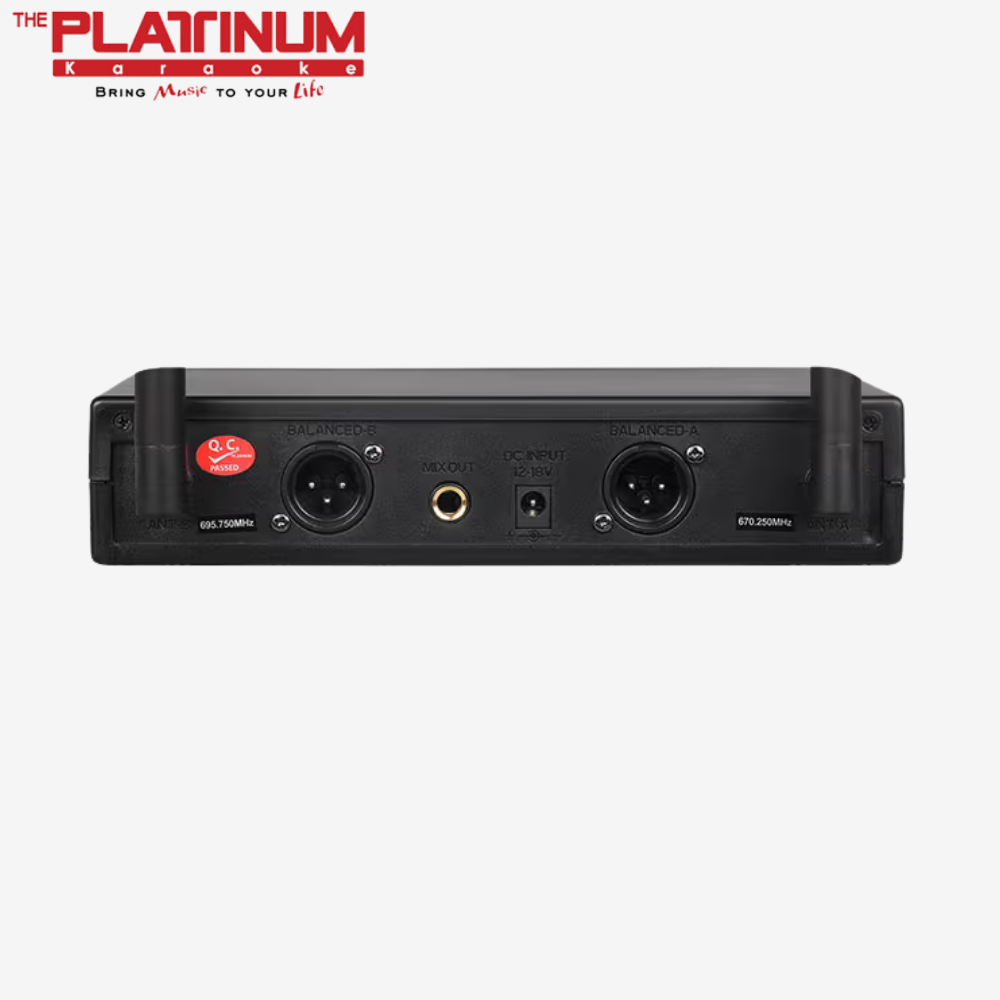

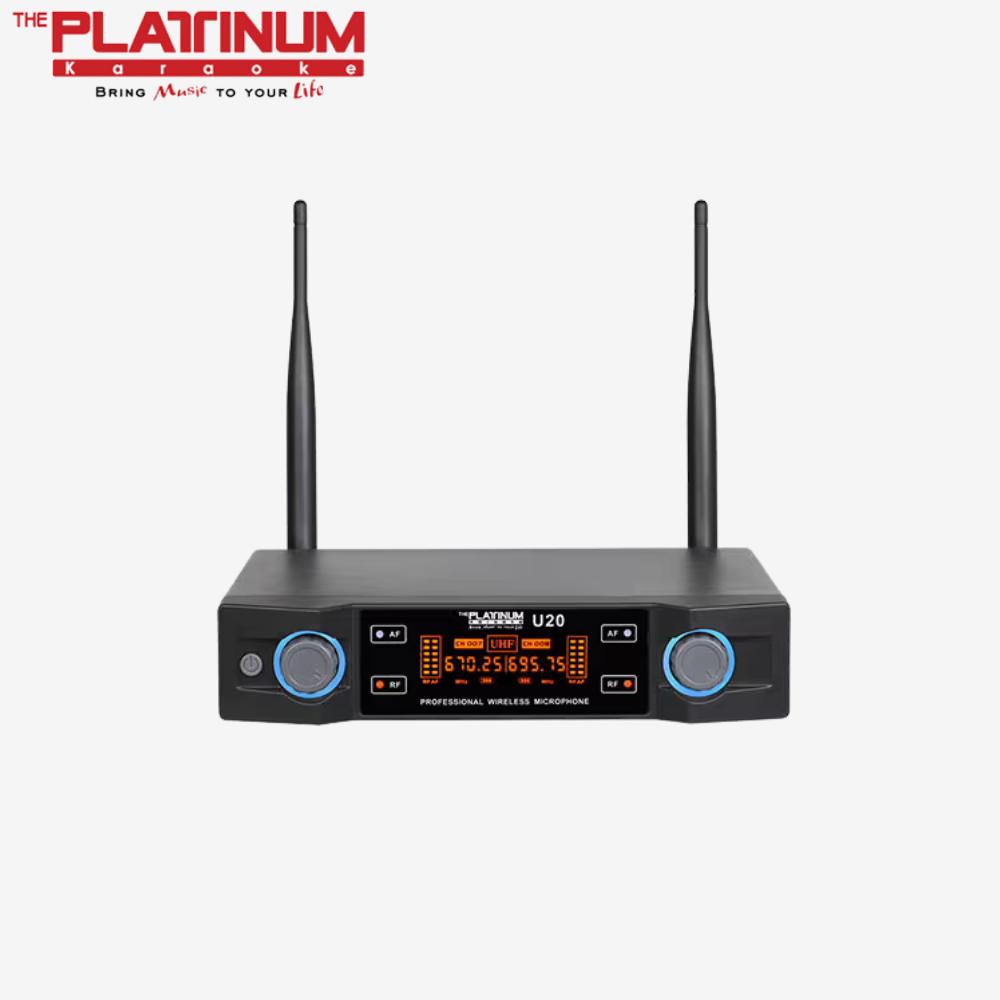

Professional Receiver Design
Features balanced output and 6.35mm mixed output, compatible with most amplifiers, mixers, and PA systems.
Easy Setup & Adjustment
FM adjustment mode and built-in sensitivity control allow seamless configuration for various environments.
Specifications
| Specification |
Details |
| Model |
Platinum U20 |
| Type |
2-Channel UHF Wireless Microphone System |
| Frequency Range |
640MHz – 690MHz |
| Frequency Response |
50Hz – 16KHz ±3dB |
| Dynamic Range |
>110dB |
| T.H.D. |
<0.5% |
| S/N Ratio |
>90dB |
| Operating Range |
>20 meters |
| Transmitter Adjustment Mode |
FM |
| Image Controlment |
>50dB |
| Max Deviation |
<75KHz |
| Transmitter Power |
DC 2.4–3.0V |
| Receiver Sensitivity |
2.0µV |
| Receiver Output |
Balanced Output, 6.35mm Mixed Output |
| Receiver Power |
DC 12V 200mA |
| Battery Life |
Up to 8 hours |
| Microphone Dimension |
Ø55 × 240 mm |
| Receiver Dimension |
210 × 210 × 140 mm |
Inclusions
1× Platinum U20 Receiver Unit
2× Handheld Wireless Microphones
1× Power Adapter
1× 6.35mm Audio Cable
1× User Manual
1× Warranty Card
Ideal For
- Karaoke and home entertainment setups
- Church, school, and corporate events
- Bars, cafés, and small performance venues
- Stage performers, hosts, and public speakers
