Model: MMA-200

Specification:


Rated Voltage: 220V~
Rated Frequency: 60Hz
Rated Max/Output: 8.8KVA
Rated Input Current: 40A
Rated Duty Cycle (at 25°C): 60% @ 200A
No Load Voltage: 66V
Output Current Range: 10-200A
Electrode Size:1.6~3.2mm
Efficiency: 85%
Protection Class: IP21S
Insulation Grade: H
Cooling Type: Fan
Dimensions: 10" (L) x 4.5" (W) x 10" (H) inches

Accessories Included:

  • Electrode Holder
  • Earth Clamp
  • Operator's Manual

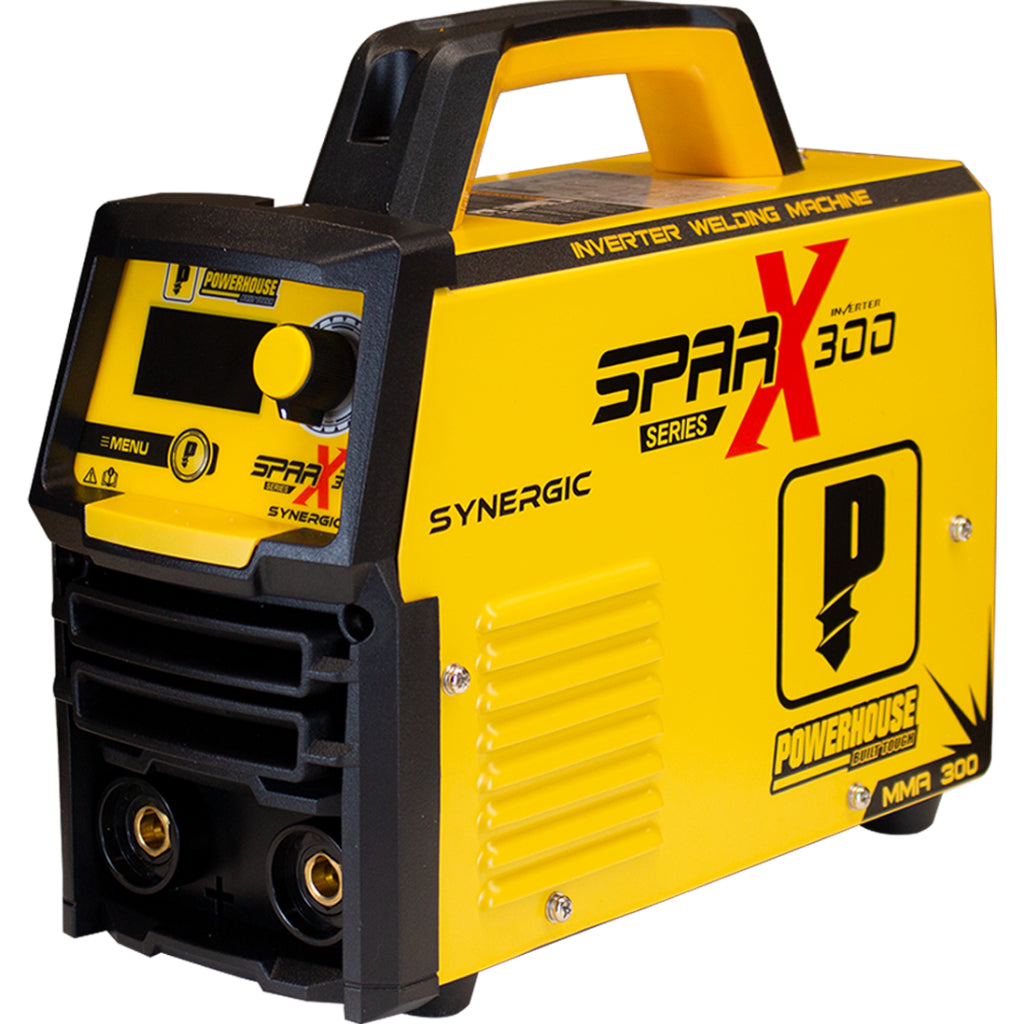

Model: MMA-300

Specification:


Rated Voltage: 220V~
Rated Frequency: 60Hz
Rated Max/Output: 15KVA
Rated Input Current: 68.5A
Rated Duty Cycle (at 25°C): 60% @ 200A
No Load Voltage: 66V
Output Current Range: 10-300A
Electrode Size: 1.6~4.0mm
Efficiency: 85%
Protection Class: IP21S
Insulation Grade: H
Cooling Type: Fan
Dimensions: 10" (L) x 4.5" (W) x 10" (H) inches

Accessories Included:

  • Electrode Holder
  • Earth Clamp
  • Operator's Manual

Features:

  • Anti-Sticking: Prevents electrode sticking during operation.
  • Arc Force: Automatically adjusts the arc for consistent performance.
  • Hot Start: Provides extra current during starting for easier arc initiation.
  • Lift TIG: Enables TIG welding with lift arc functionality for added convenience.
