Royu DC Miniature Circuit Breaker DIN Rail Type Designed for easy and quick DIN rail mounting, this device features a clear ON/OFF status indicator for convenient operation monitoring. It provides dual safety protection against overload and short circuits, ensuring reliable electrical performance and enhanced safety. The product is BPS Approved (Q-5946), meeting recognized quality and safety standards.

Specification

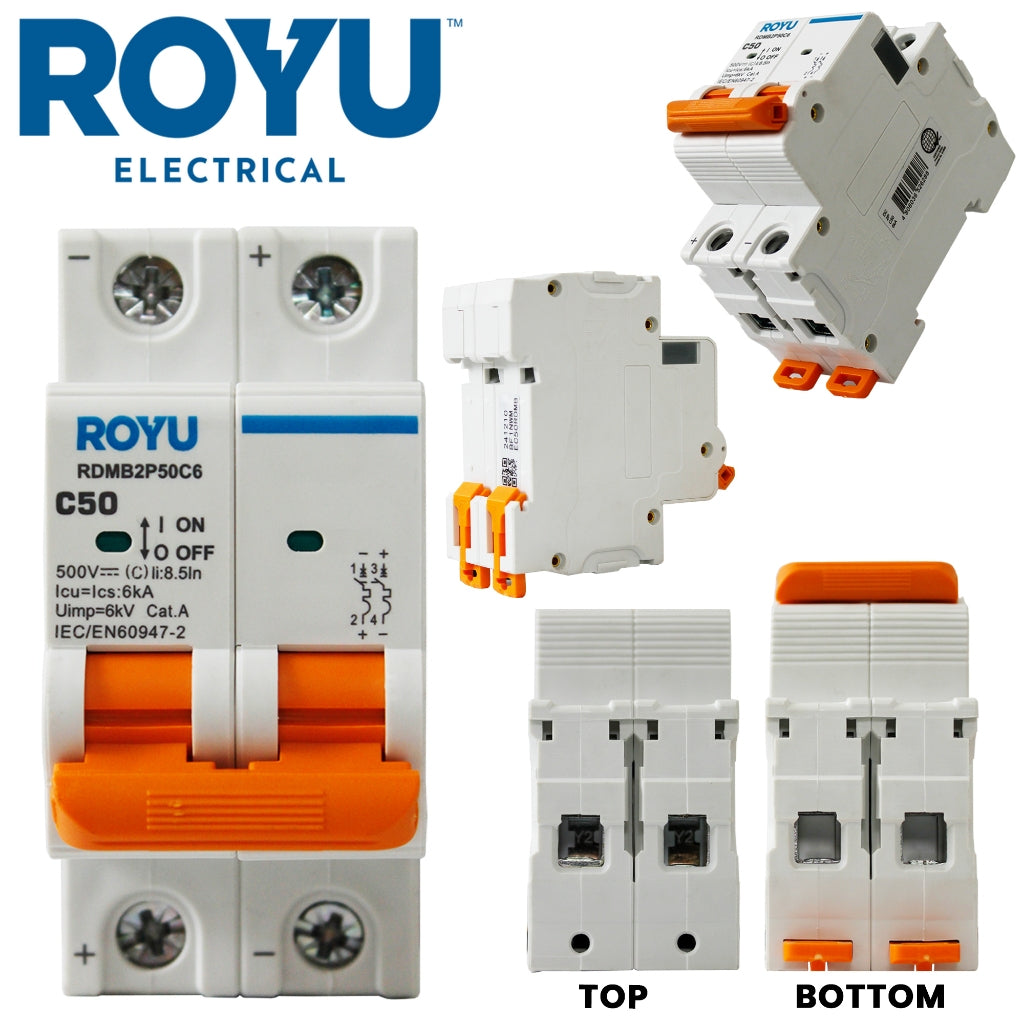

Model:RDMB2P50C6
Poles: 2P
Rated Voltage: 500V⎓
Rated Current: 50A
kAIC Rating: 6
Instantaneous Trip Characteristics: Thermal magnetic trip
Ambient Temp: -5℃~+40℃
Allowable Wire Size: 10.0 mm2
Standard: IEC/EN60947-2

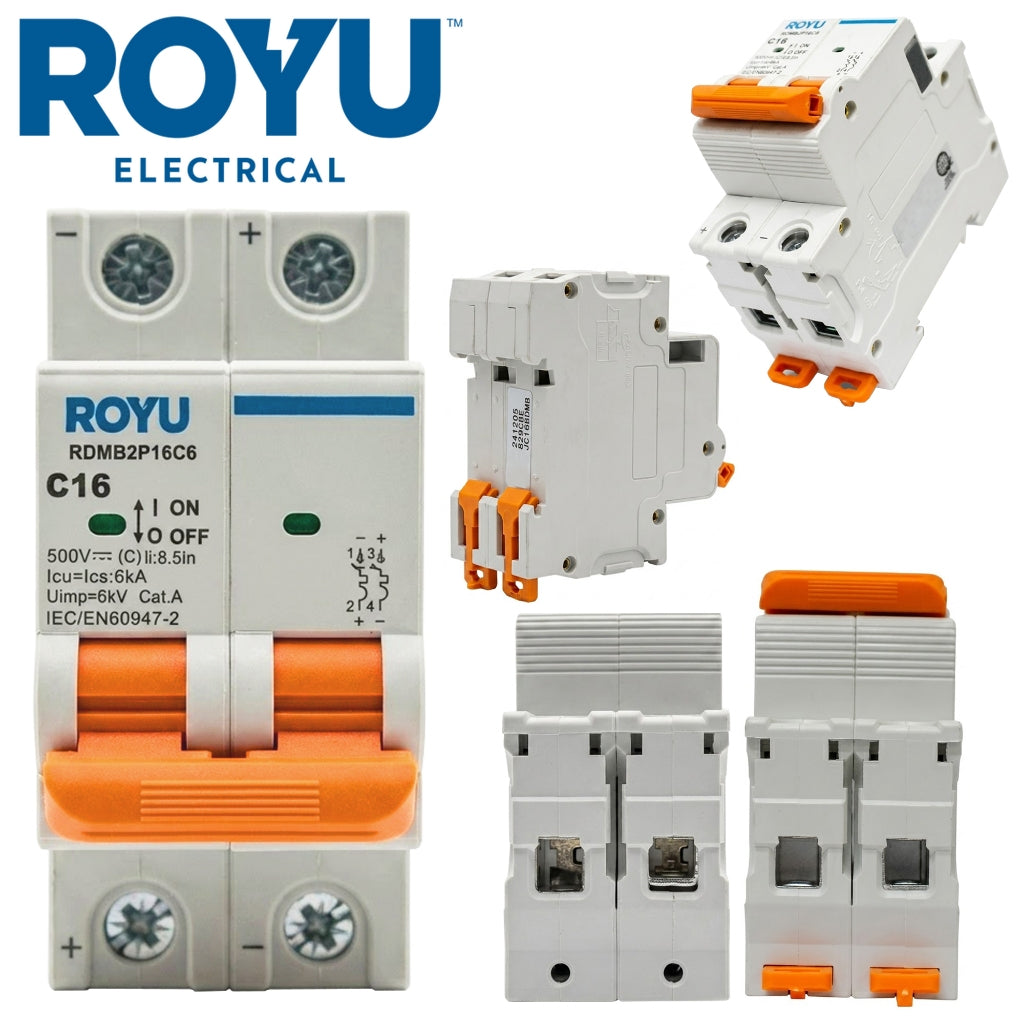

Model:RDMB2P16C6
Poles: 2P
Rated Voltage: 500V⎓
Rated Current: 16A
kAIC Rating: 6
Instantaneous Trip Characteristics: Thermal magnetic trip
Ambient Temp: -5℃~+40℃
Allowable Wire Size: 2.5 mm2
Standard: IEC/EN60947-2

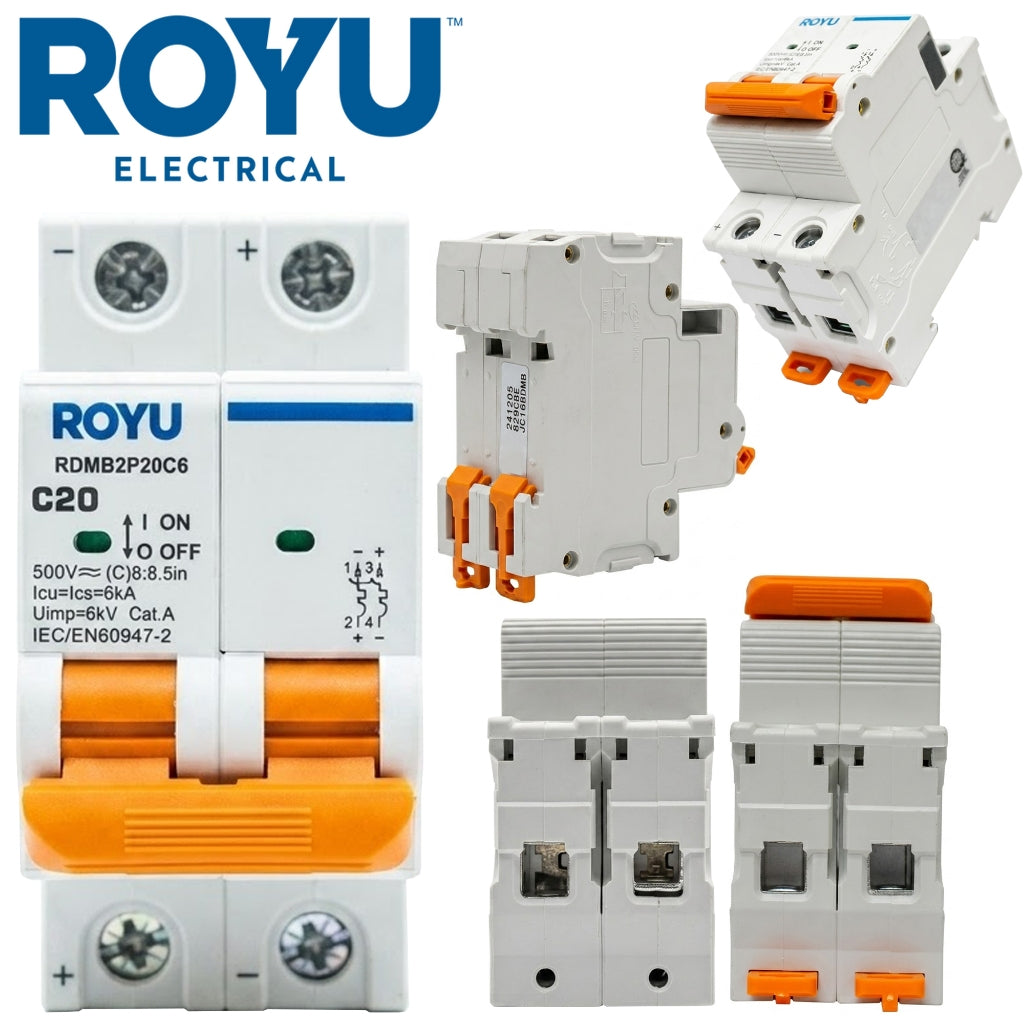

Model:RDMB2P20C6
Poles: 2P
Rated Voltage: 500V⎓
Rated Current: 20A
kAIC Rating: 6
Instantaneous Trip Characteristics: Thermal magnetic trip
Ambient Temp: -5℃~+40℃
Allowable Wire Size: 2.5 mm2
Standard: IEC/EN60947-2
