Specification

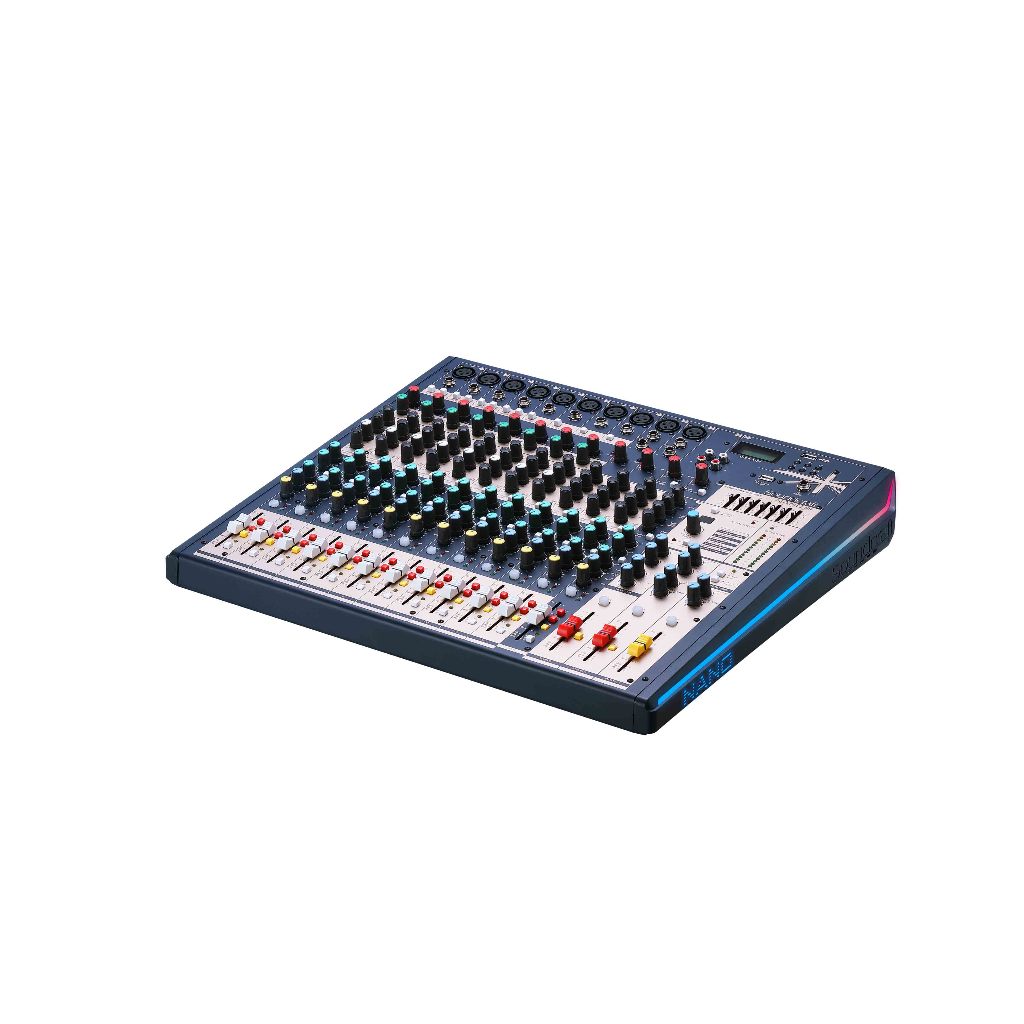

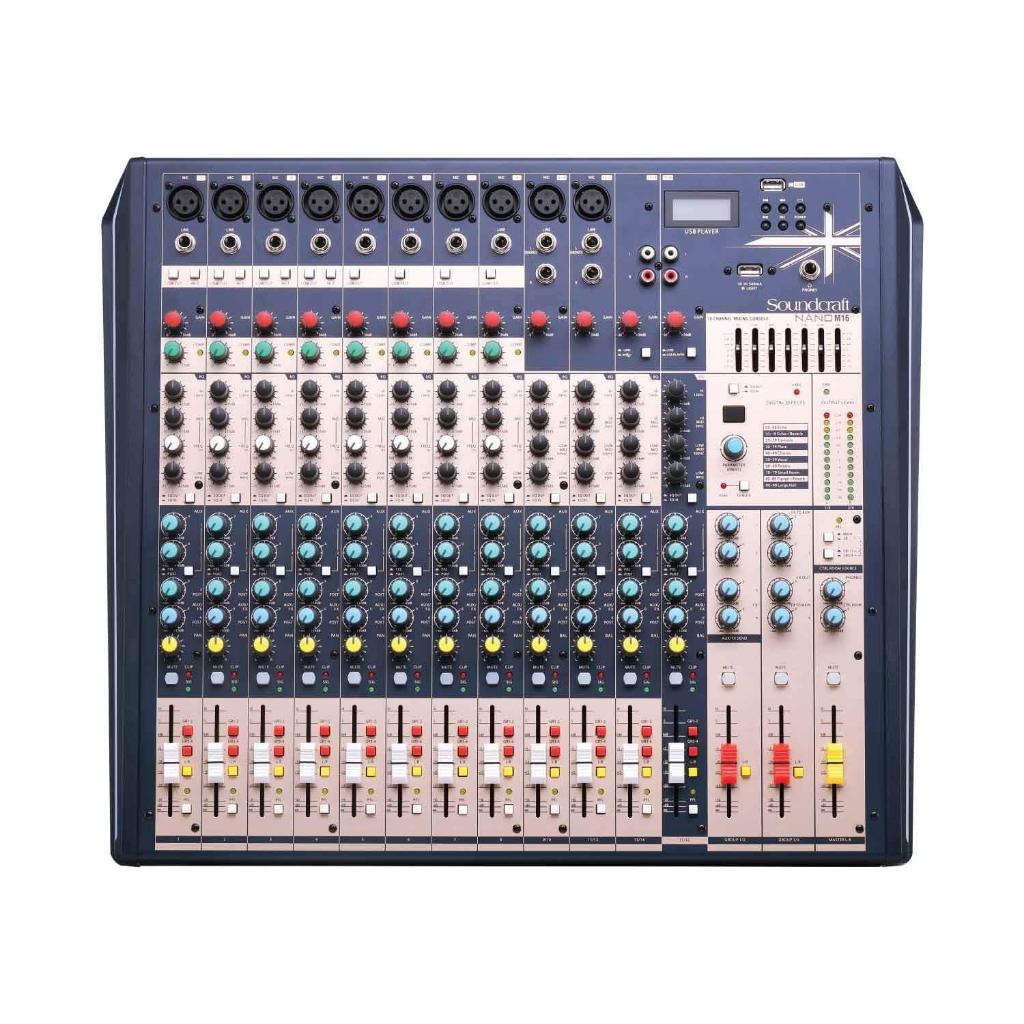

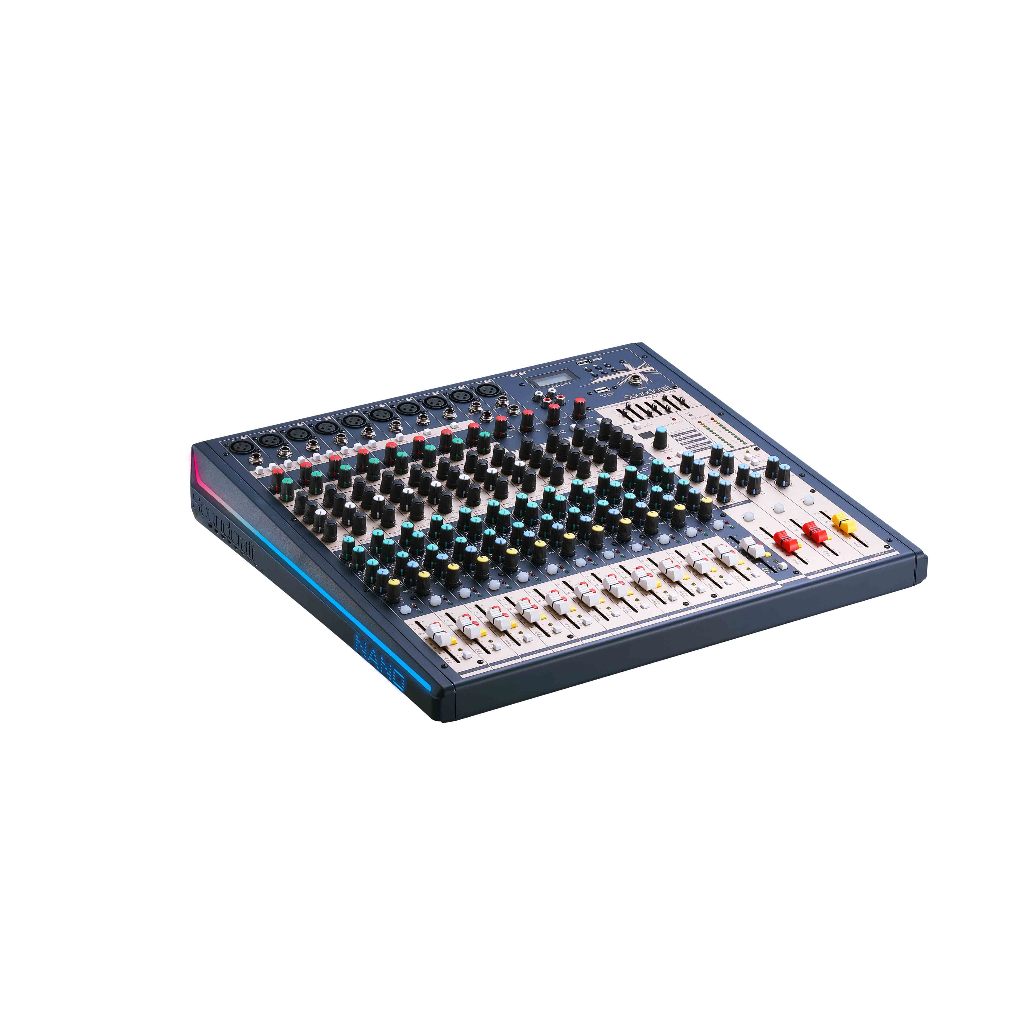

Model: Nano M16
Hum & noise
<-80 dB @ 20 Hz~22 KHz A-weighted, 1 channel & main level: 0 dB, the other: minimum
Crosstalk
<-80 dB @ 0 dB 20 Hz~22 KHz A-weighted, main level: 0 dB, the other: minimum
Frequency Response
Mic/Line Input to any output, 20 Hz-20 kHz / <1 dB
THD + N
Mic sens. -30 dBu, +20 dBu at all outputs @ 1 kHz / <0.006%
CMRR
Typical @ max gain @ 1 kHz / >80 dB
Typical @ any gain @ 50 Hz / >60 dB
Input & Output Impedance
Mic Input: 1.8 kΩ
Line Input: 23.6 kΩ
Stereo Input: 20 kΩ
Mix, Aux and Insert Sends: 120 Ω
Input & Output Levels
Mic Input max. level: +20 dBu
Line Input max. level: +30 dBu
Stereo Input max. level +30 dBu
Headphones (@ 200 Ω): 150 mW
Compressor
Gain: 0 - 9 dB
Threshold: 20 dB →↓5 dB
USB 2.0 (Standard B)
Inputs / Outputs: 2-in, 2-out
Bit Depth: 16-bit
Sampling rate: 32 kHz / 44.1 kHz / 48 kHz
USB Player
Inputs / Outputs: 2-in, 2-out
Record sampling rate: 44.1 kHz
Power Consumption
Mains voltage
100 V-240 VAC, 50/60 Hz, universal input
100 V-240 VAC, 50/60 Hz, universal input Physical
Net weight:6.59 kg
Gross weight: 8.2 kg
Dimensions: 50.462 x 42.5 x 8.834 cm
Features
Ultra-low noise discrete MIC preamp with +48V phantom power.
8 / 16 mono input channels and 4 stereo input channels.
Each input channel accepts balanced XLR MIC input and TRS LINE input.
Low cut for each MIC input.
Each mono input channel is equipped with 3-band EQ, sweepable MID and PEAK LED.
2 stereo input channels accept mono XLR or TRS input; 2 stereo input channels accepts RCA input.
Each stereo input channel is equipped with 4-band EQ and PEAK LED.
8 compressor controls and 8 channel insert points.
AUX 1 & AUX 2 send post/pre-fader signal for monitoring or external effects; AUX 3 & FX send post-fader for internal effects or monitoring.

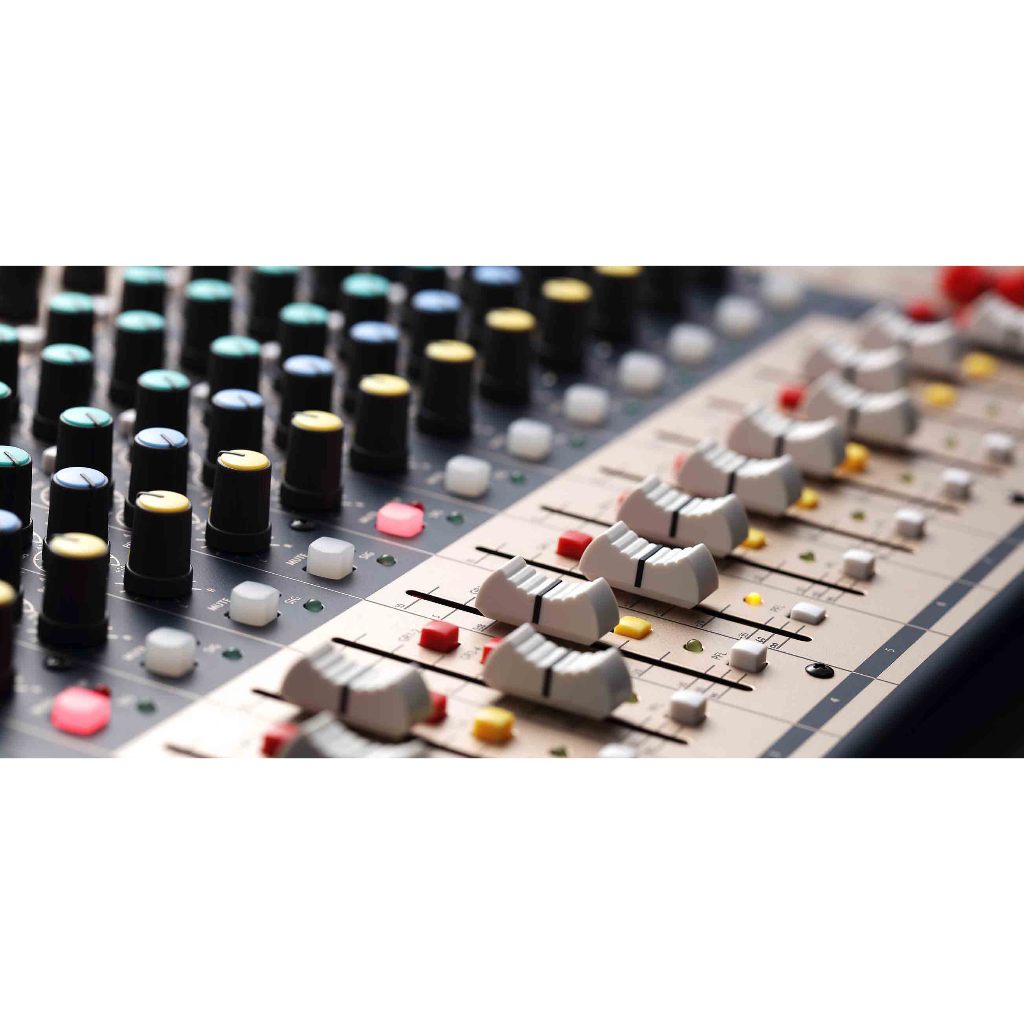

PFL/MUTE and 60mm fader for each channel.
GR1/2, GR3/4 and MAIN L-R buss assignment for each channel.

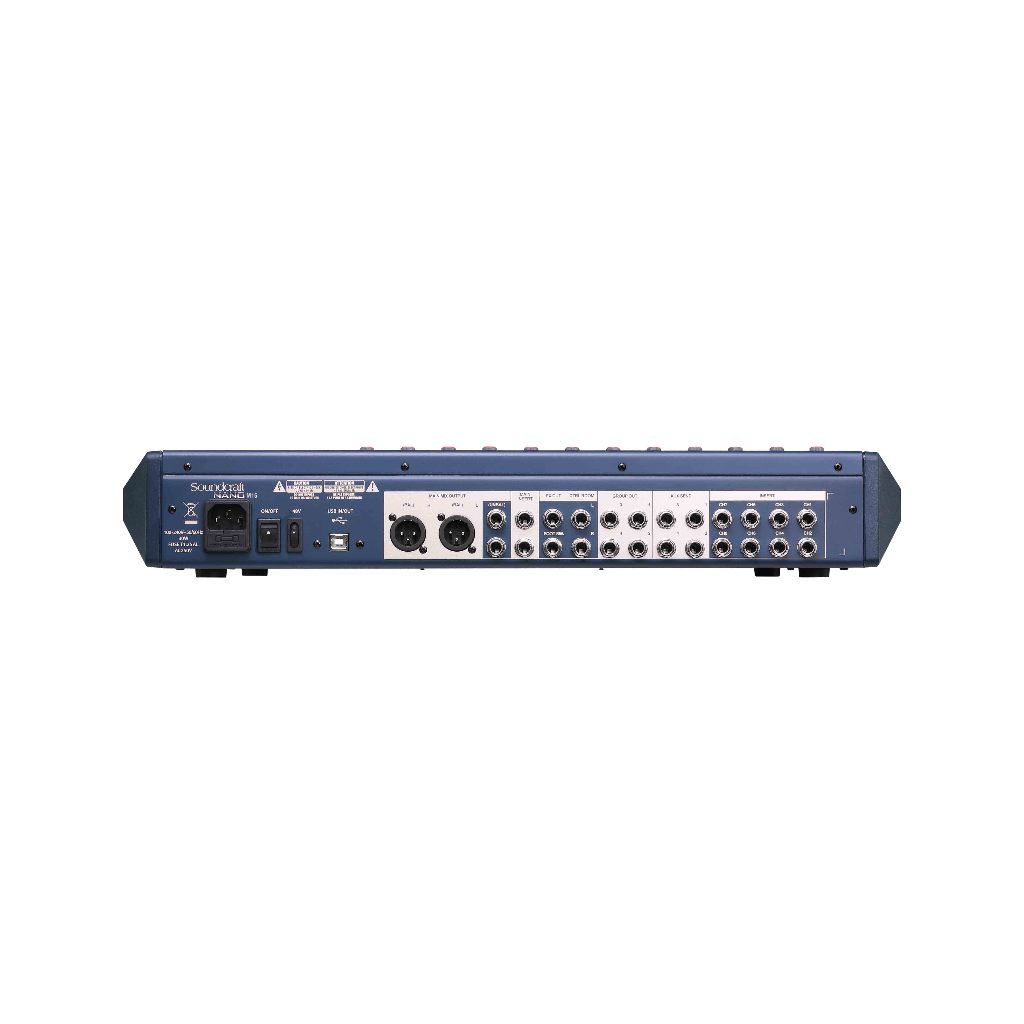

MAIN MIX installs a pair of balanced XLR and a pair of unbalanced TRS connectors and can be equalized via a 7-band GEQ.
MAIN MIX supports external effect insert.
24-bit DSP processor provides up to 100 effect presets.

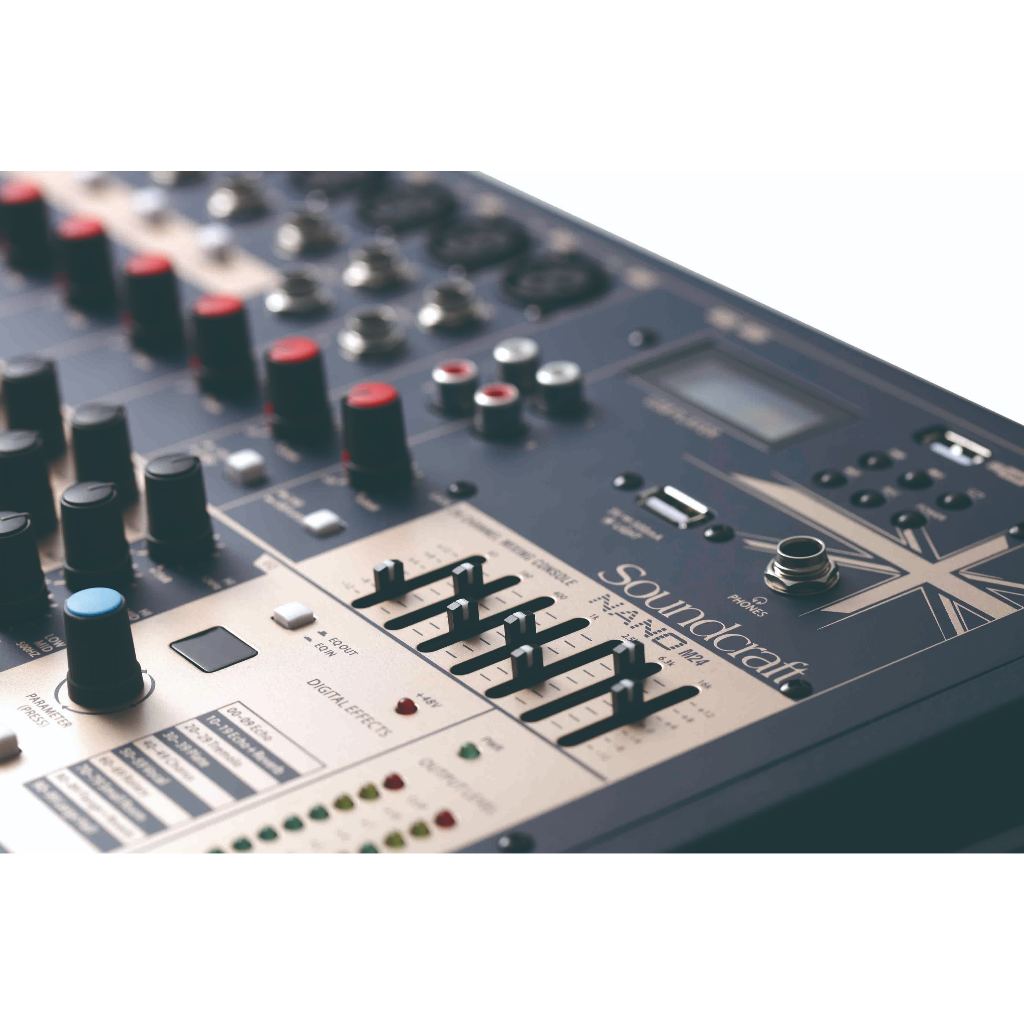

USB player for MP3 playback and recording.
Switch-mode power supply for 100-240Voltage.
USB port for MAIN MIX recording or playback through CH 15/16 (M16) or CH 23/24 (M24).
Cutting-edge and eye-catching design. Uniquely-designed Atmos Meter adds extra visual effects to live performance.
