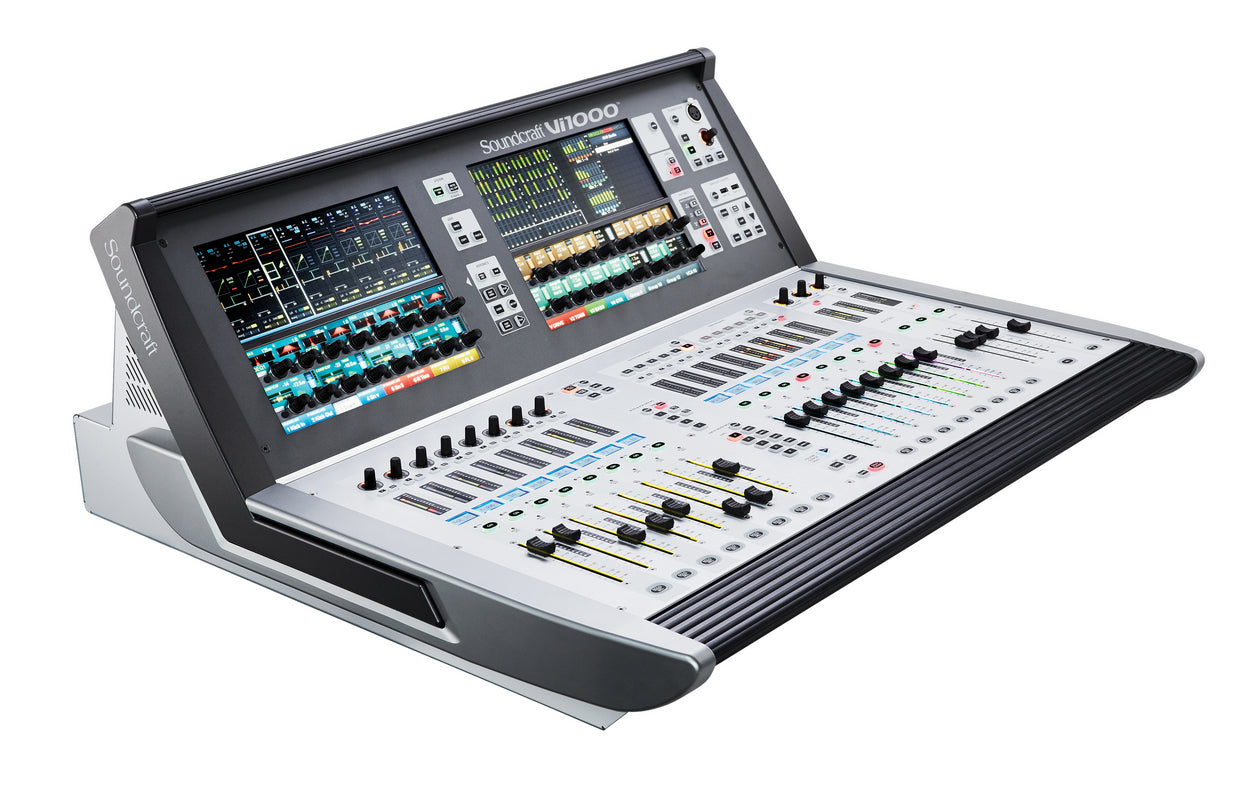

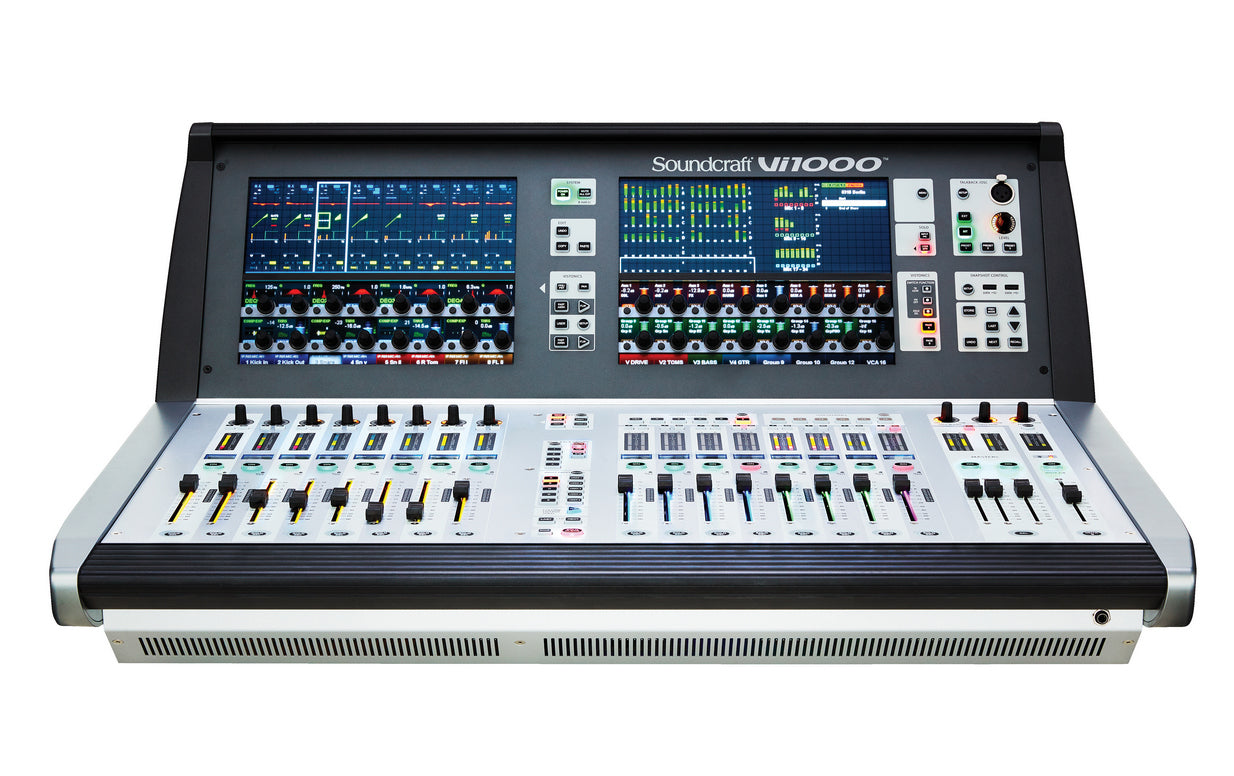

Soundcraft Vi1000 96-CHANNEL COMPACT DIGITAL MIXING CONSOLE

The Soundcraft Vi1000 digital mixing console represents the culmination of the groundbreaking achievements and rich feature set offered by Soundcraft's acclaimed Vi Series—now in a more compact form factor.

The reduced footprint of the Vi1000 makes it ideal for smaller touring projects, rental companies, corporate AV applications, as well as music venue, theater and HOW installations in search of a versatile digital mixer. Among its many features, the Vi1000 incorporates Vistonics II 'knobs-on-glass' functionality, making it easy to see and access the power and versatility of the mixing environment; along with Soundcraft Faderglow™ colour coding, which illuminates the fader slots according to function using clearly defined colours. Offering pristine audio quality, a wealth of functionality, an intuitive user interface for streamlined operation, and the roadworthy reliability that Soundcraft's Vi Series consoles are known for, the new Vi1000 delivers space saving, world-class audio mixing capability.

Sound Craft Vi1000 Features:

• 96 input channels with 24 mono/stereo mix busses, plus LRC master busses
• Vistonics II proprietary ‘knobs-on-glass’ functionality; key to the console’s streamlined, intuitive operational interface and widely praised as the easiest-to-use digital console on the market
• SpiderCore™ integrated DSP engine ensures superior audio performance
• Soundcraft Faderglow color coding illuminates the fader slots according to function
• Integrated Dante™ interface facilitates instant connection to industry standard Dante audio networks
• Two double-slot expansion slots for Stagebox connection or option card installation
• Built-in Lexicon world-class reverb, delay, and pitch effects from the industry’s leading brand
• Onboard BSS DPR901ii dynamic EQ digitally modelled after the original, industry-standard BSS analog unit
• Integrated microphone monitoring for AKG, Shure®, and Sennheiser wireless systems
• Included vMIX automatic microphone mixing for two groups of up to 16 mics in conference or theatrical applications
• Proven electronic and mechanical design delivers the performance and reliability Vi Series consoles are known for

Soundcraft Vi1000 Specifications:

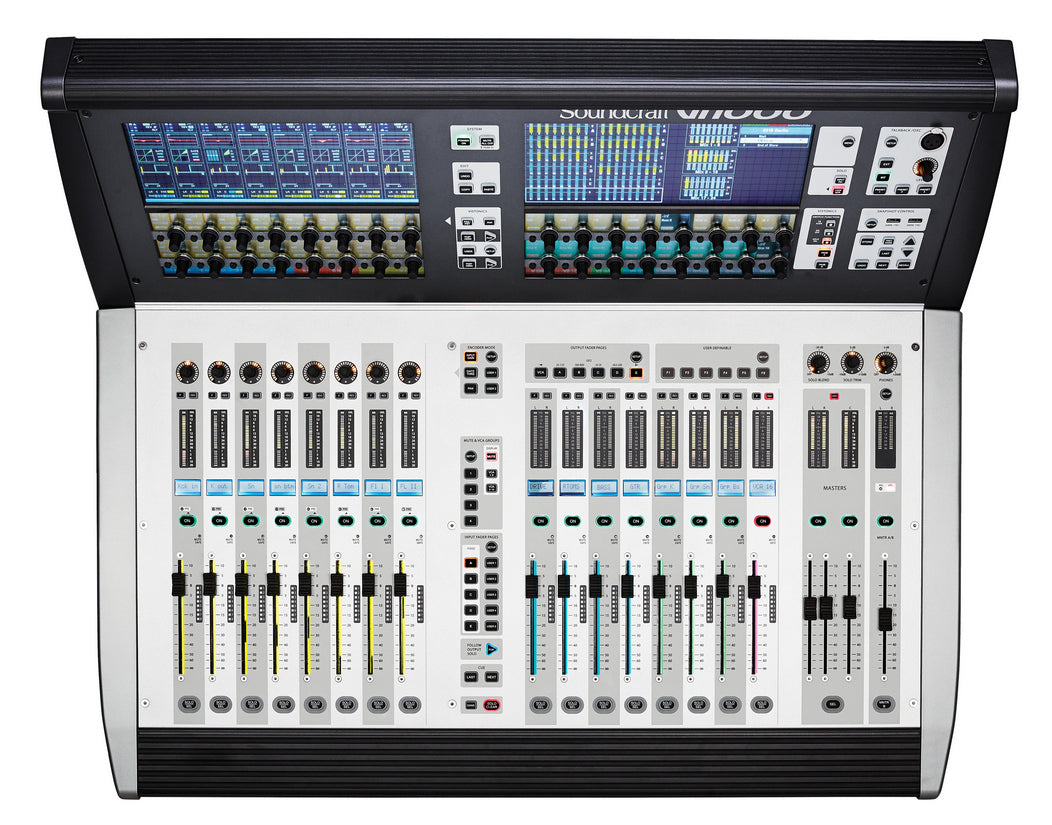

• Contol Surface:
  • Input Faders: 8 (16 when assigned to output faders)
  • Output Faders: 8 + 3 + 1
  • Total Faders: 20
  • Vistonics II screens: 2 (1 input, 1 master)

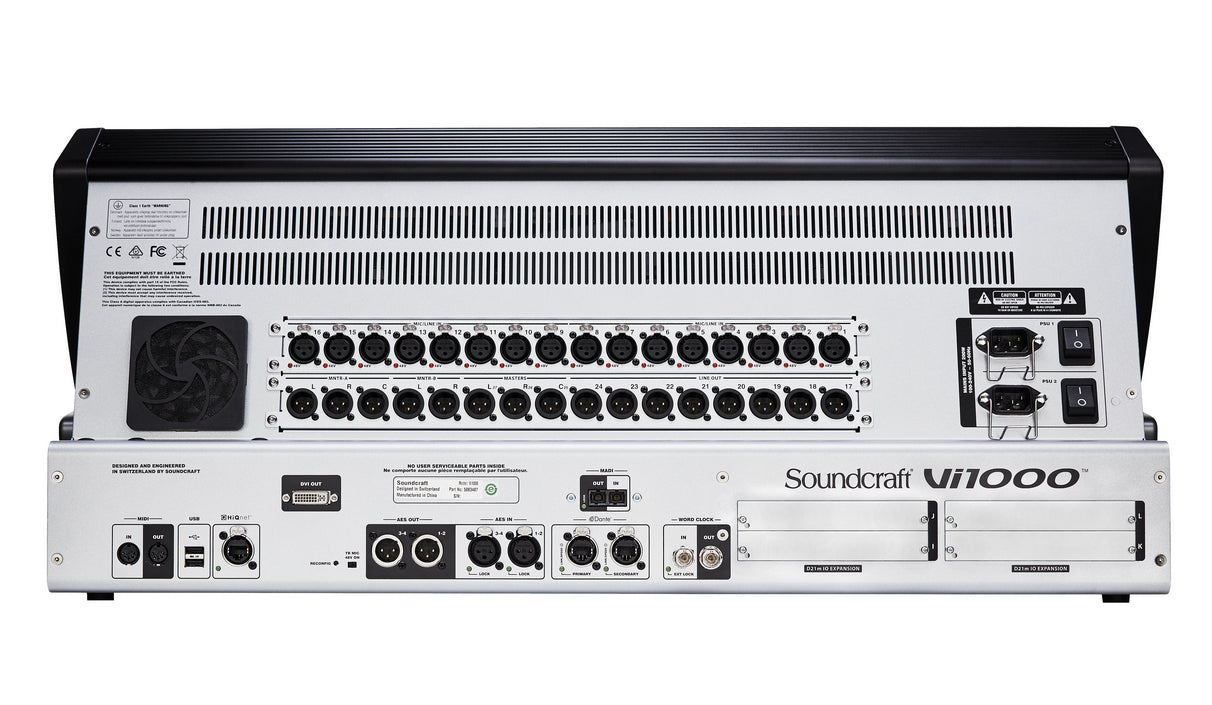

• Local I/0 Physical Connectors:
  • Total I/O count: 212 in/212 out
  • Mic/Line Inputs: 16 Soundcraft HQ preamps
  • Line Outputs: 16
  • AES/EBU In (with SRC): 2 (4ch)
  • AES/EBU Out: 2 (4ch)
  • TB Mic in: 1 front panel with rear panel 48V on/off sw
  • Phones out: 1 stereo jack, under front armrest
  • Dante ports: 1x 64ch
  • MADI Optical: 64 in/64 out
  • D21m Option Slots: 2x double/4 single (total 128ch)
• DSP Mixing Core:
  • Input Channels: 96 mono Pairable to 48 stereo
  • Busses - Aux/Grp: 24 mono or stereo
  • Busses - Matrix: From bus pool – max 16 mono/stereo
  • Busses - Master: 3 (LRC)
  • Assignable Insert Points: 64 external + 8 DEQ + 4FX
  • Lexicon FX: 4 Stereo reverb/delay/pitch effects
  • BSS GEQ: All mono/stereo busses and masters
  • BSS DPR901ii DEQ: 8 instances
  • vMIX Automixing: 2x16ch instances
• External Control Ports:
  • Ethernet: 1 (for Mirroring and external control)
  • MIDI: 1 In 2 Out
  • Mains Input: 2, switched, for redundant PSUs.
  • USB2.0: 4 (2 front, 2 rear)
  • Wordclock: In /Out 2x BNC
• Physical:
  • Weight:
    • Vi1000 console only: 55lbs (25kg)
    • Vi1000 console incl. standard shipping carton: 102lbsx (102lbs)
  • Dimensions: 33.2” x 31.6” x 13.8” (84 x 803 x 351mm)
  • Images are for illustration purposes only. Actual product may vary.
