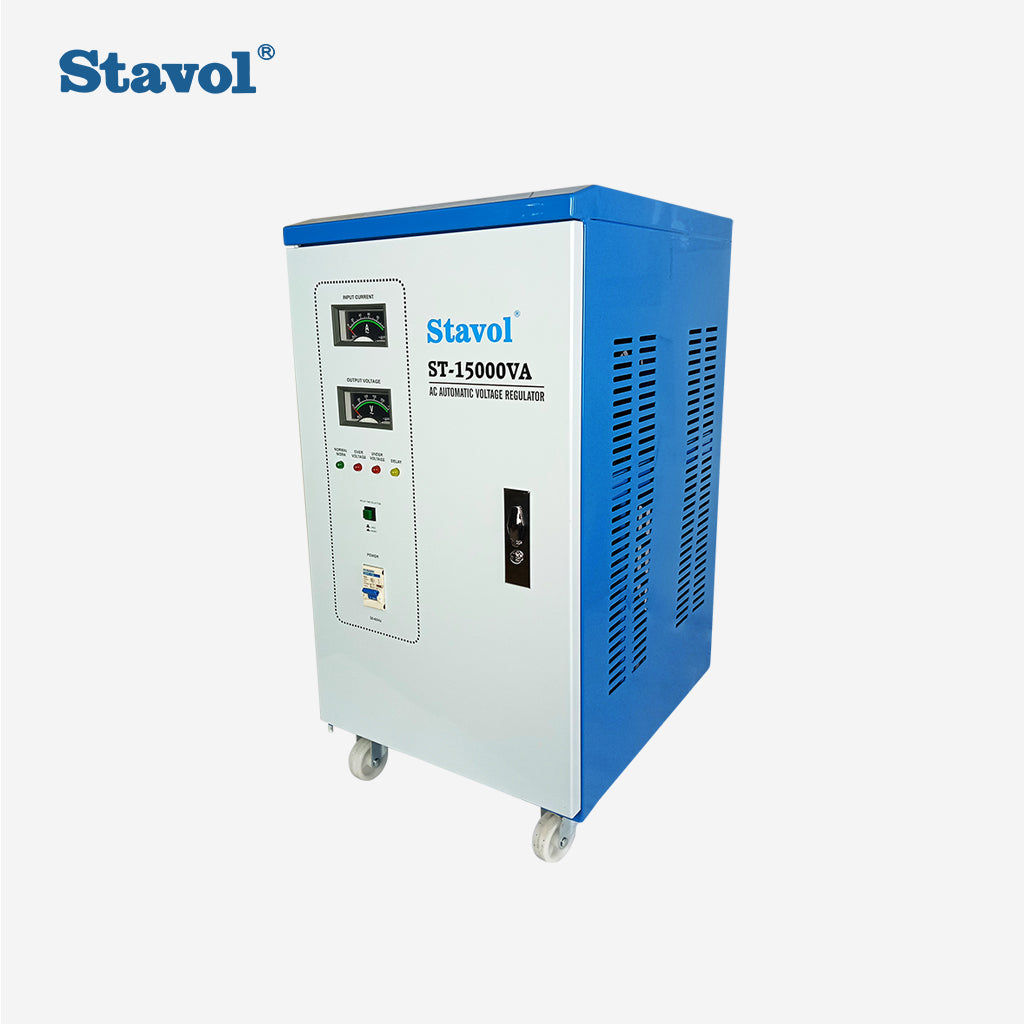

Stavol by Winland 100% Copper 15000W Servo Motor Control Automatic Voltage Regulator AVR ST-15000VA

Model: ST-15000VA
Specification:

• Maximum Power Output: 15,000 VA
• Servo Motor Control
• Input Voltage/Output Voltage:
  • 150V-250V for 15KVA-60KVA (Single-Phase)
  • 277V-430V for ST-3 Series (Three-Phase)
• Output Voltage:
  • 220V for 15KVA-60KVA
  • Wire Voltage: 380V (ST-3 Series), 220V (TNS-3 Series)
  • Phase Voltage: 220V (ST-3 Series), 127V (TNS-3 Series)
• Voltage Accuracy:
  • 220V ± 3%, 110V ± 6%
  • Phase Voltage: 220V ± 3% (ST-3 Series), 127V ± 6% (TNS-3 Series)
• Over-Voltage Protection Value: 246V ± 4%
• Under-Voltage Protection Value: 184V ± 4%
• Frequency: 50~60Hz
• Waveform Distortion: No additional waveform distortion
• Load Power Factor: 0.8
• Efficiency: ≥90%
• Adjusting Time: ≤1.5s (for 10% input voltage change)
• Time Delay:
  • Long-time: 5 ± 2 minutes
  • Short-time: 5 ± 2 seconds
• Enclosure Protection: IP20
• Insulation Thermal Endurance: Class B
• Electric Strength: No flashover or breakdown at 2000V/min
• Insulation Resistance: ≥5MΩ
• Weight: 55 kg
• Dimensions: 33 cm x 40 cm x 65 cm (L x W x H)

Accessories Included:

• 100% Pure Copper Wire Motor

Features:

• Premium Quality
• 100% True Output Power

Applicable Working Conditions:

• Environment Temperature: -5°C to +40°C
• Relative Humidity: <95% (at 25°C)
• Air Pressure: 86-106 kPa
• Suitable for environments without chemical deposition, scaling, harmful or corrosive media, or flammable/explosive gases
• Altitude: <1,000 m
