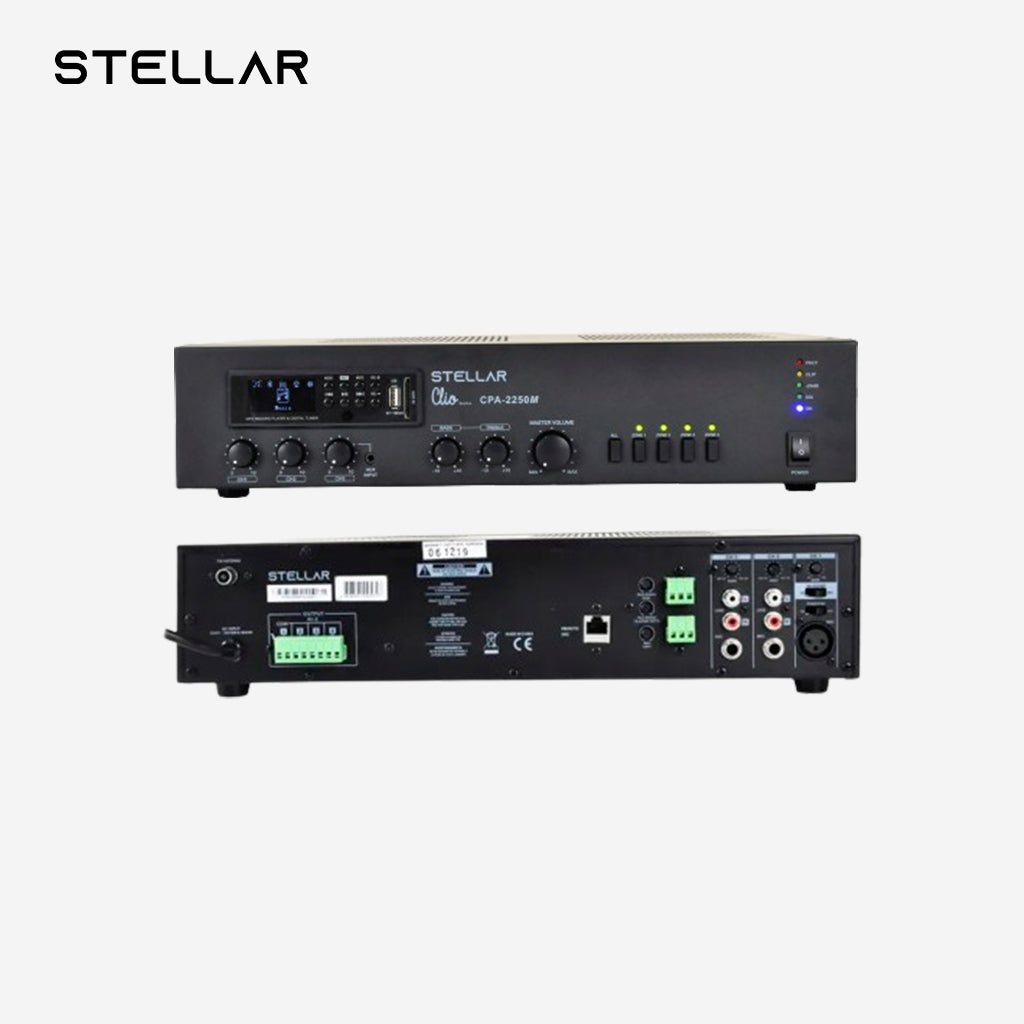

Model: CPA-2250M

Specification:

  • AC Voltage: 230V~ 50/60Hz
  • Input Sensitivity:
    • Balanced Microphone Channels: -50dB ± 3dB
    • Unbalanced AUX Channels: -30dB ± 3dB
    • Tele-Paging: -21dB ± 3dB
  • Frequency Response: 80Hz–18kHz ±1.5/-3dB (at 1 watt from speaker out tap)
  • Tone Channels: 100Hz, 10kHz ±10dB ±3dB
  • Signal to Noise Ratio: Less than 90dB (at rated power output)
  • Crosstalk: -70dB at 1kHz (at all control maximum)
  • Rated Output Power: 450 watts (at THD 0.5%)
  • Total Harmonic Distortion (THD): Less than 0.5% (at 1kHz rated power)
  • Power Bandwidth: 80Hz–18kHz (with less than 0.5% THD, at 1kHz from speaker out tap)
  • DC Output Offset: Less than ±3mV
  • Operating Temperature/Humidity: 0~40°C at 95% humidity (non-condensing)
  • Output Voltage and Impedance: 100V (16Ω)
  • Cooling: Convection Cooled
  • Dimensions (W x H x D): 420mm x 88mm x 320mm

Features:

  • High output power suitable for various audio applications
  • Multiple input sensitivity settings for versatile connectivity
  • Reliable performance with minimal distortion and noise
  • Durable design with convection cooling for extended use
