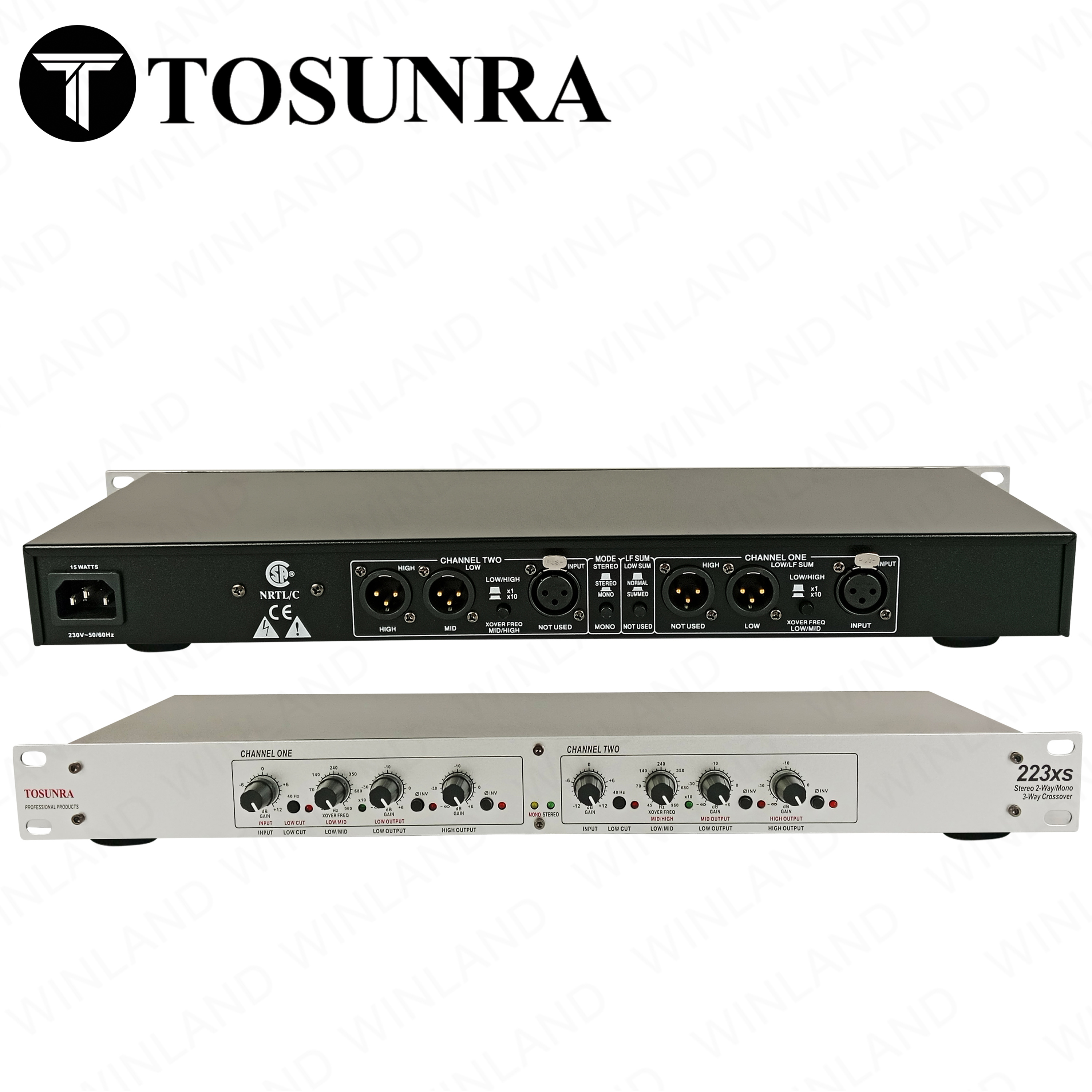

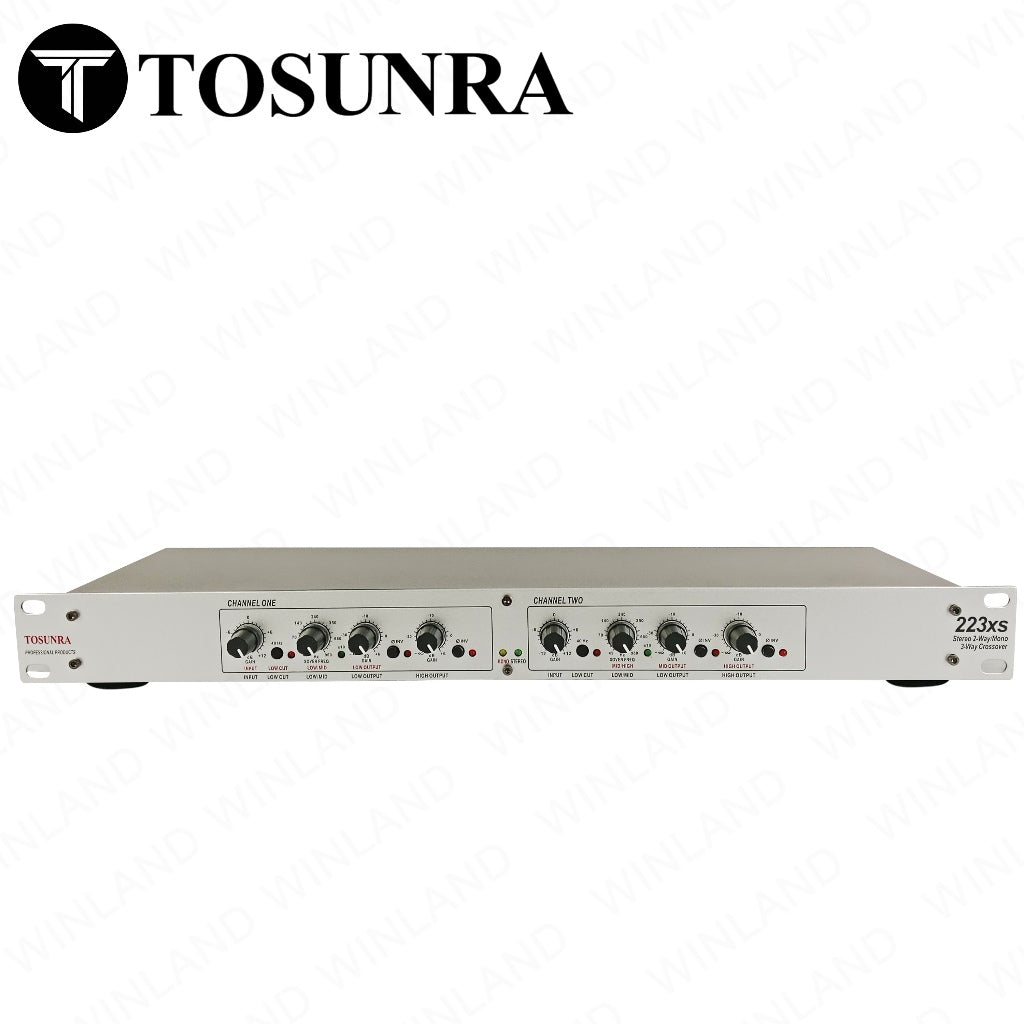

Tosunra Crossover (223XS) is a professional audio tool that helps split your sound into separate frequency ranges for better clarity and performance.
Use it in stereo 2-way mode to send lows and highs to different speakers, or in mono 3-way mode to separate lows, mids, and highs. It has smooth
filters for clean sound, volume controls for each output, and phase switches to adjust speaker timing. A built-in low-cut filter removes unwanted
deep noise, and the frequency range switch gives you more flexibility. With XLR inputs and outputs, LED indicators, and a strong metal case, it’s
perfect for PA systems, live sound, or studio setups.
Features
Splits audio into separate frequency bands for better speaker performance.
Works in stereo 2-way mode or mono 3-way mode.
Smooth filters for clean sound transitions.
Independent volume controls for each output.
Phase switch to adjust speaker timing.
Low-cut filter to remove unwanted deep noise.
Frequency range switch for more flexible settings.
Balanced XLR inputs and outputs for professional connections.
LED indicators to show mode and signal status.
Durable metal rack-mount design for easy installation.
Specification
Model: TOS-223XS
Input Connectors : XLR (pin 2 hot)
Input Type : Electronically balanced/unbalanced, RF filtered
Input Impedance : Balanced >50k ohm, unbalanced >25k ohm
Max Input : >+22dBu balanced or unbalanced
CMRR : >40dB, typically >55dB at 1kHz

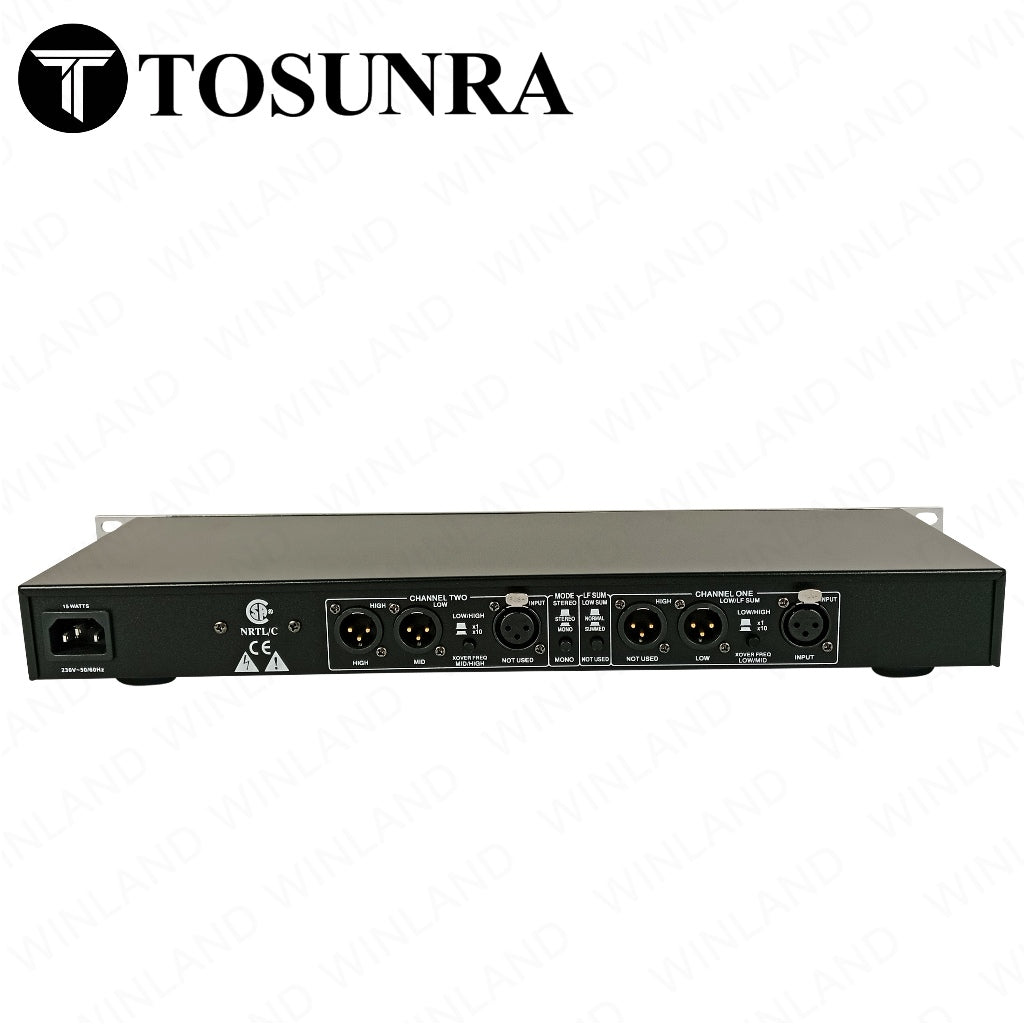

Output Connectors : XLR
Output Type : Impedance-balanced/unbalanced, RF filtered
Output Impedance : Balanced 200 ohm, unbalanced 100 ohm
Max Output : >+21dBu balanced/unbalanced into 2k ohms or greater
Bandwidth : 20Hz to 20kHz, +/-0.5dB
Frequency Response : < 3 Hz to > 90 kHz, +0/-3 dB
Signal to Noise Ratio : Ref: +4 dBu, 22 kHz measurement bandwidth
Signal-to-Noise (Stereo Mode) : >94dB (Low Output), >91dB (High Output)
Signal-to-Noise (Mono Mode) : >94dB (Low Output), >93dB (Mid Output), >91dB (High Output)
Dynamic Range : > 106 dB, unweighted, any output
THD + Noise : < 0.004% at +4 dBu, 1 kHz; < 0.04% at +20 dBu, 1 kHz
Inter channel Crosstalk : < -80 dB, 20 Hz to 20 kHz
Crossover Frequencies (Stereo Mode) : Low/High: 45 to 960 Hz or 450 Hz to 9.6 kHz (x10 setting)
Crossover Frequencies (Mono Mode) : Low/Mid: 45 to 960 Hz or 450 Hz to 9.6 kHz (x10 setting); Mid/High: 45 to 960 Hz or 450 Hz to 9.6 kHz (x10 setting)
Crossover Filter Type : Link witz-Riley, 24 dB/octave, state-variable
Low cut Switch : Activates 40 Hz Butterworth, 12 dB/octave high-pass filter, one switch per channel.
Phase Invert Switch : Inverts the phase at the output, one switch per output.
x1 / x10 Switch : Multiplies the low-high(mono: low/mid and high/mid) crossover frequency range of the front-panel markings by a factor of 1 or 10, one switch per channel.
Mode Switch : Selects stereo/mono and 2/3-way operation

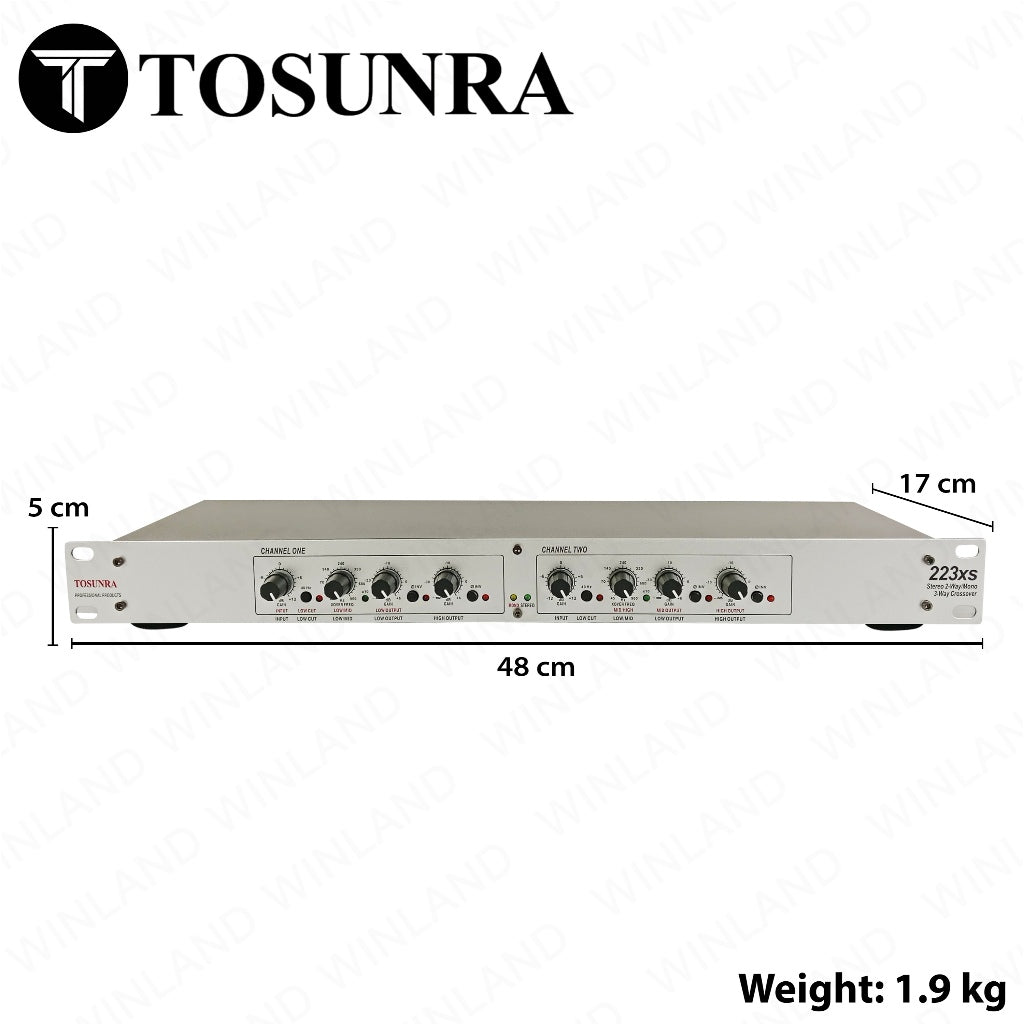

Dimension (L x W x H): 48 x 17 x 5 cm
Weight: 1.9 kg
