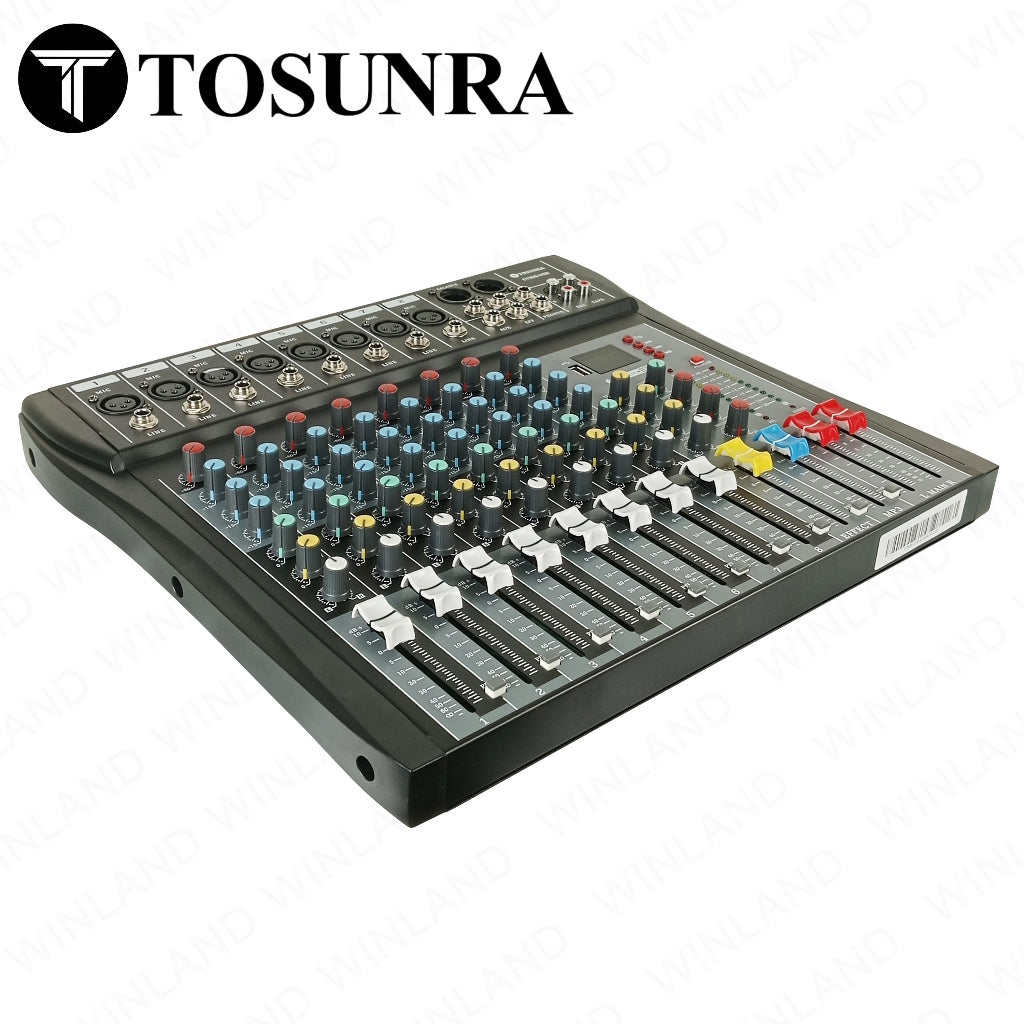

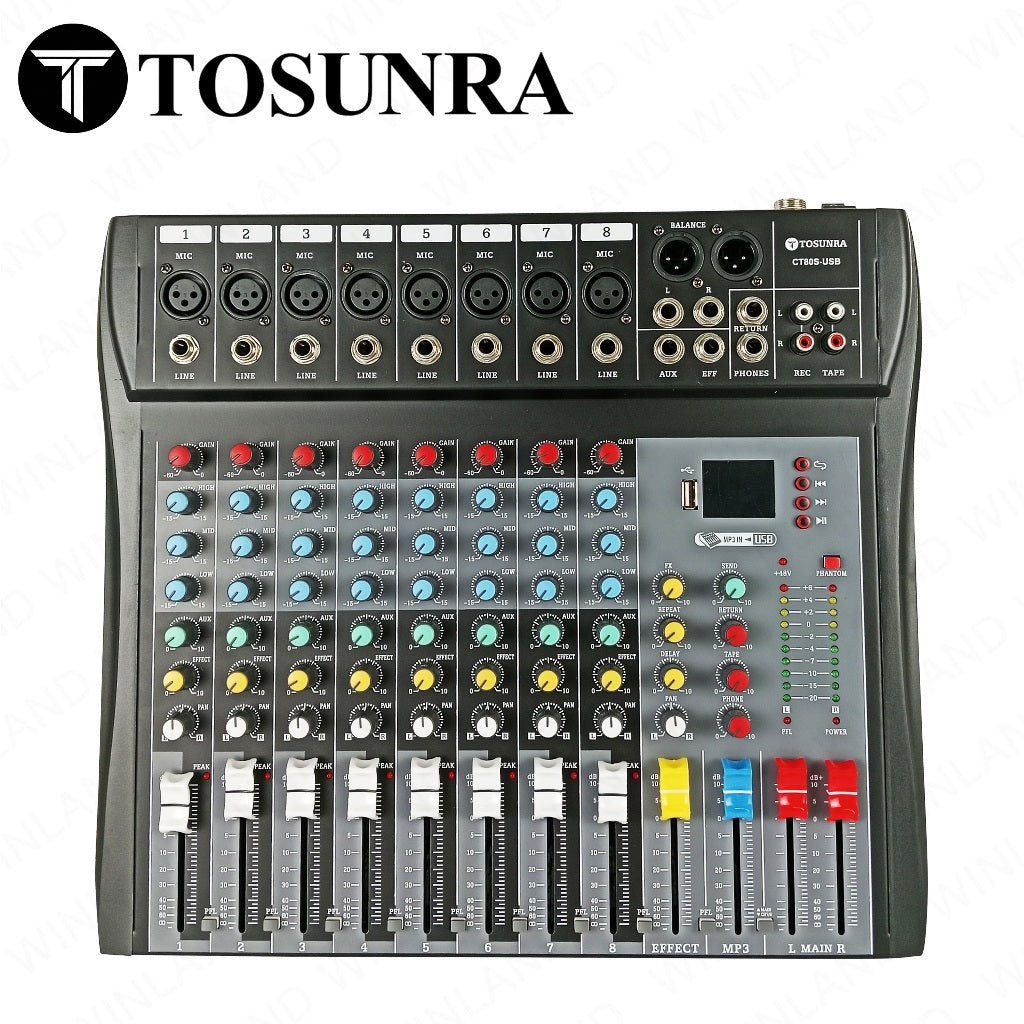

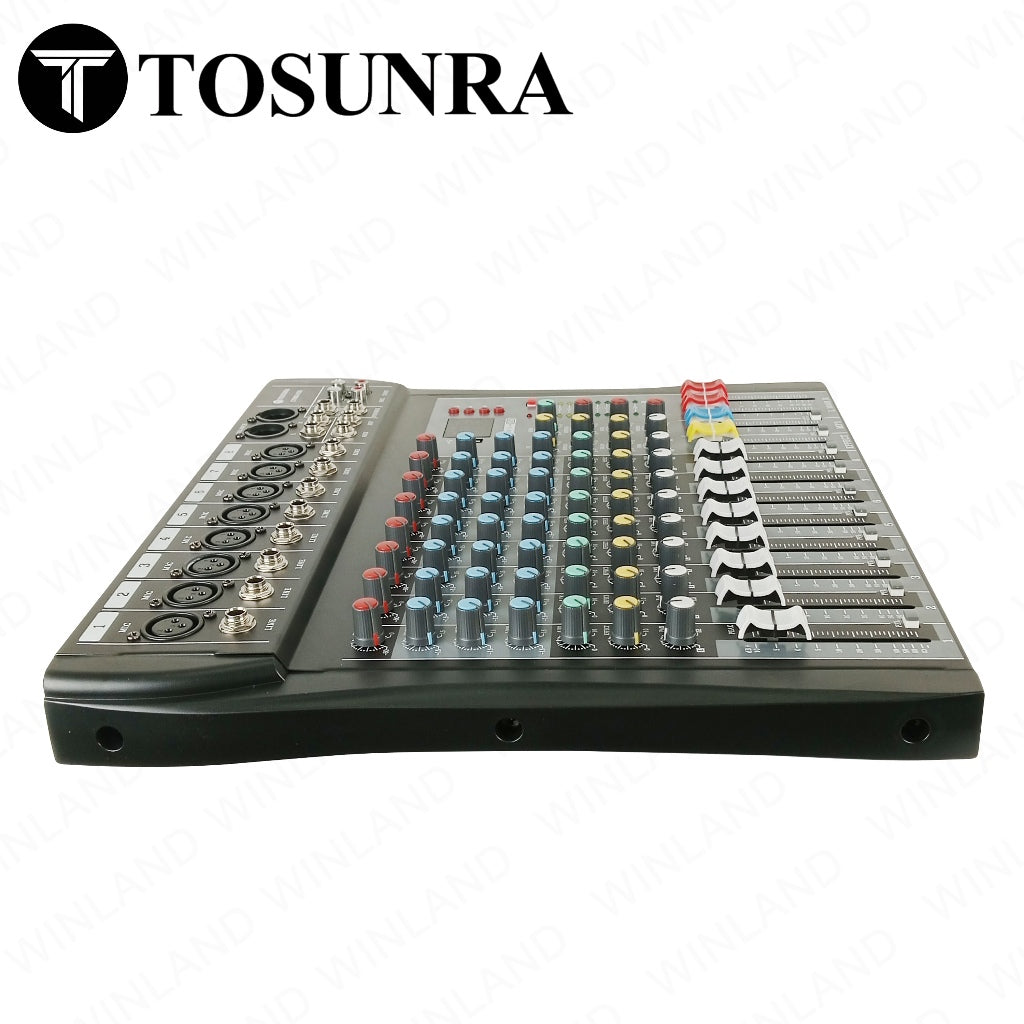

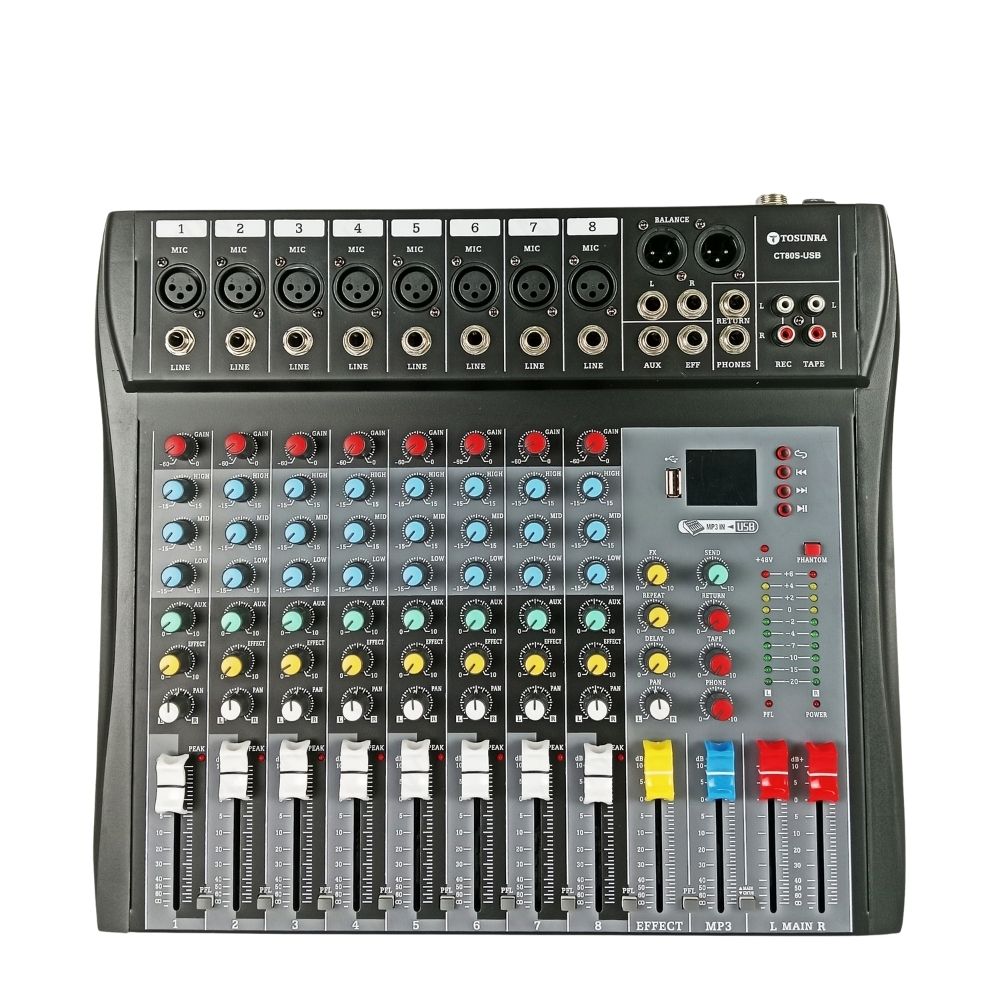

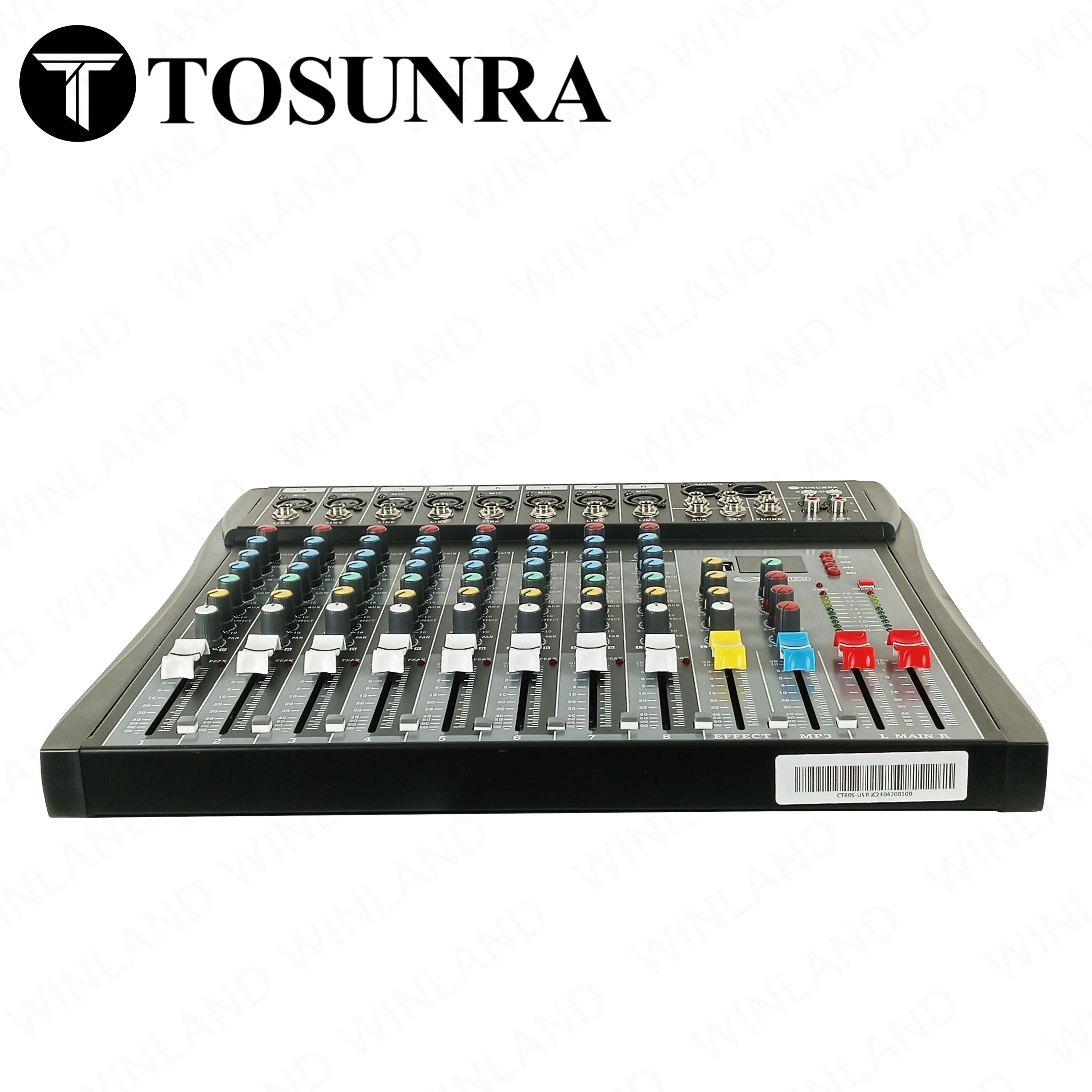

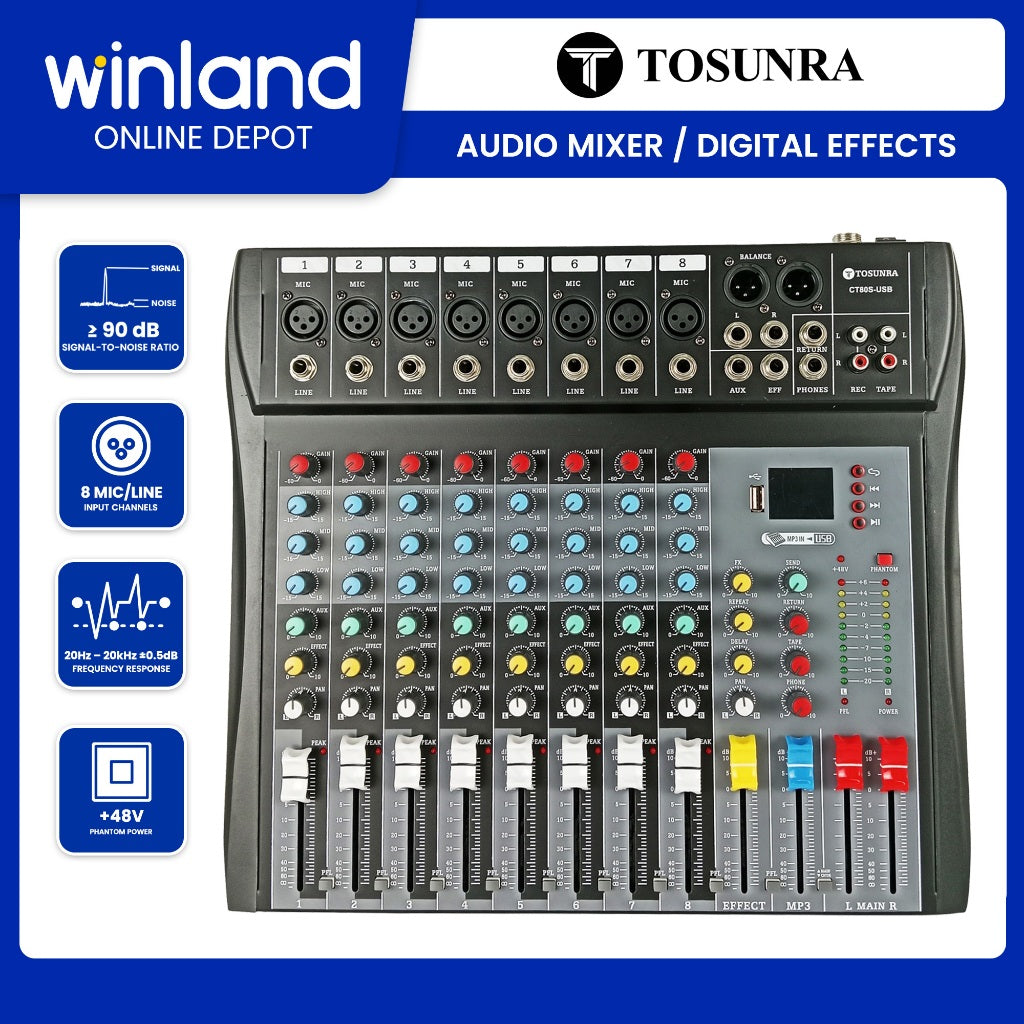

Tosunra Professional Audio Mixer 8-Channel (CT80S-USB) is a multi-channel mixer designed for DJs, live performances, karaoke, and studio use, featuring XLR and line
inputs with phantom power, individual three-band EQs, and smooth faders. It includes USB connectivity for MP3 playback and recording, Bluetooth streaming, built-in
digital effects like reverb, and versatile monitoring and output options, all housed in a compact, durable metal body—making it ideal for small to medium venues, home
studios, and live entertainment setups.
Features
8 channels with microphone and line inputs
Equipped with easy-to-use sound controls for bass, middle, and treble, this system lets you quickly tailor the audio to your preference.
Mixer features volume and balance controls for each channel, allowing precise audio adjustment and a perfectly balanced mix.
Audio interface supports condenser microphones with phantom power, ensuring clear and professional-quality sound for your recordings.
Allows you to play music files directly from a USB drive and record your live mix or performances straight to USB for easy saving and sharing.
Connects wirelessly with Bluetooth and Headphone jack for monitoring.
Built-in effects like reverb and echo.
Standard audio outputs.
Extra send/return for effects.
Sturdy and compact design.
Specification
Model : TOS-CT80S-USB
Channels : 8 Input channels
Input Connectors : XLR and 1/4" TRS combo jacks per channel
Phantom Power : 48V DC for condenser microphones
USB Interface : Supports MP3 playback and direct USB recording
Bluetooth Version : Bluetooth 5.0
Equalizer : 3-band EQ per channel: Low (80Hz ±15dB), Mid (2.5kHz ±15dB), High (12kHz ±15dB)
Digital Effects : 16 DSP effects including Reverb, Delay, Echo, Pitch, Filter, Room, Time
Gain Control Range : Approximately -60dB to -40dB per channel
AUX Send/Return : Yes, for external effects integration
Master Controls : Main fader, Effect send, Return, Delay, Repeat
Headphone Output : 100mW @ 200Ω (1kHz, THD=0.5%)
Signal-to-Noise Ratio : ≥90dB
Frequency Response : 20Hz – 20kHz ±0.5dB
Total Harmonic Distortion : ≤0.003% (1kHz, 0.775V)
Maximum Input Level : Microphone: +16dBu; Line: +30dBu
Maximum Output Level : 19dBm (1kHz, THD=0.5%)
Output Connectors : 1/4" TRS stereo (L/R), RCA output
Headphone Jack : 3.5mm stereo

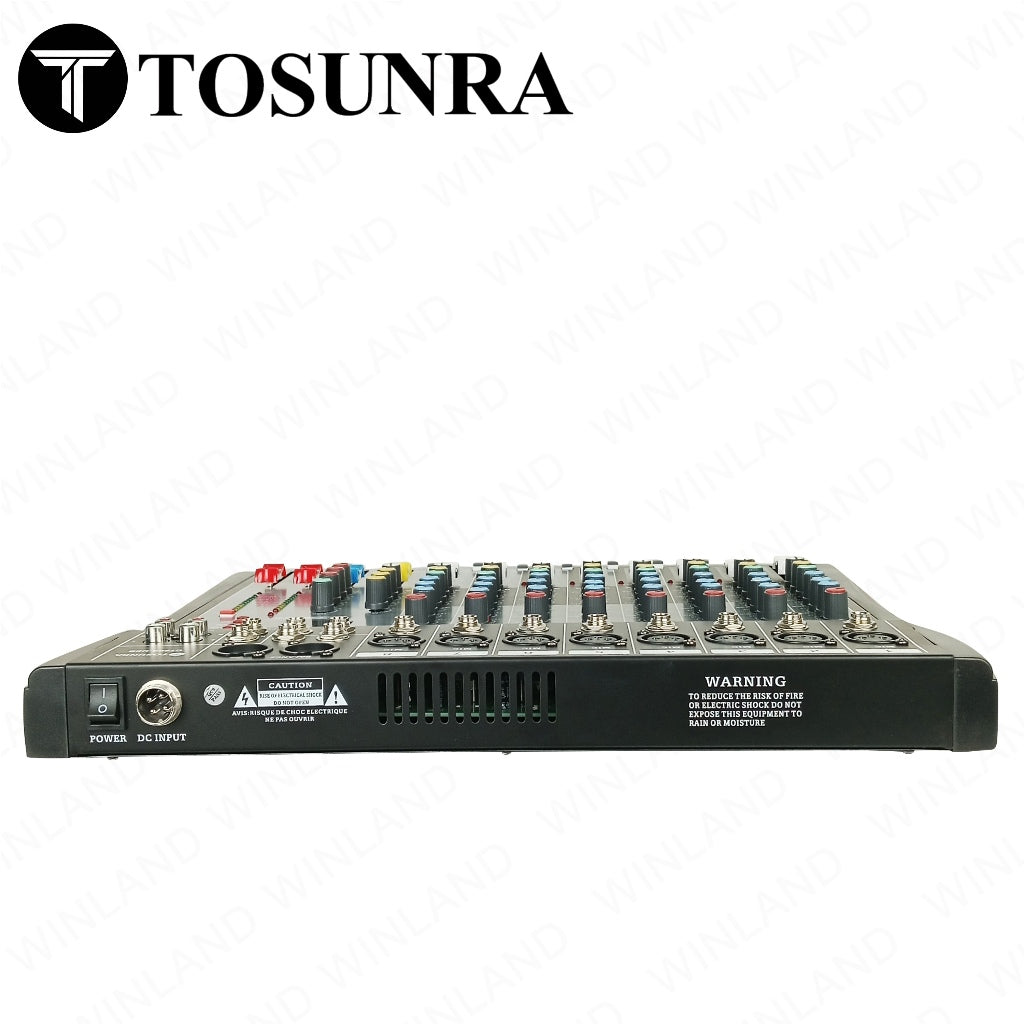

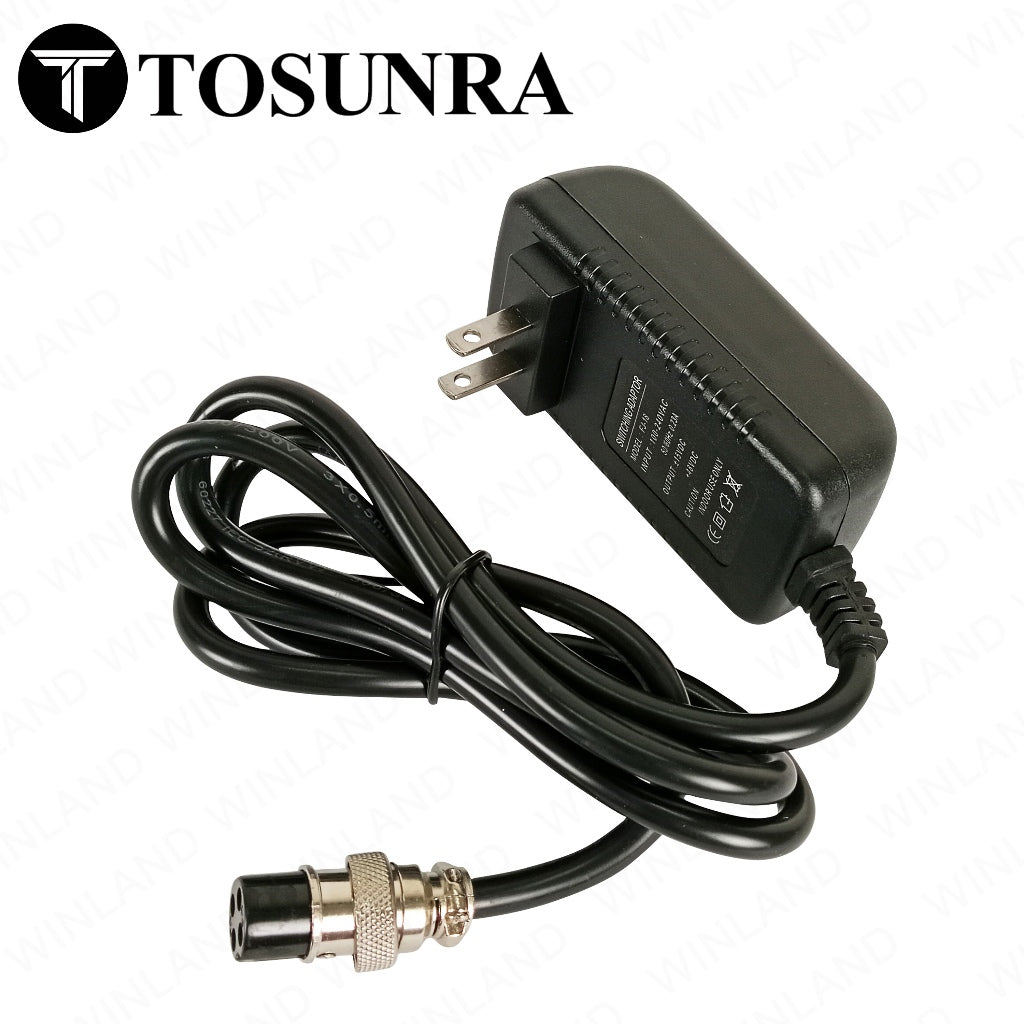

Power Supply : 100–240V AC input; 15V DC output
Build Material : Metal chassis
Package Includes:
1pc x Power Cord
1pc x User Manual
Weight: 2.75 kg
