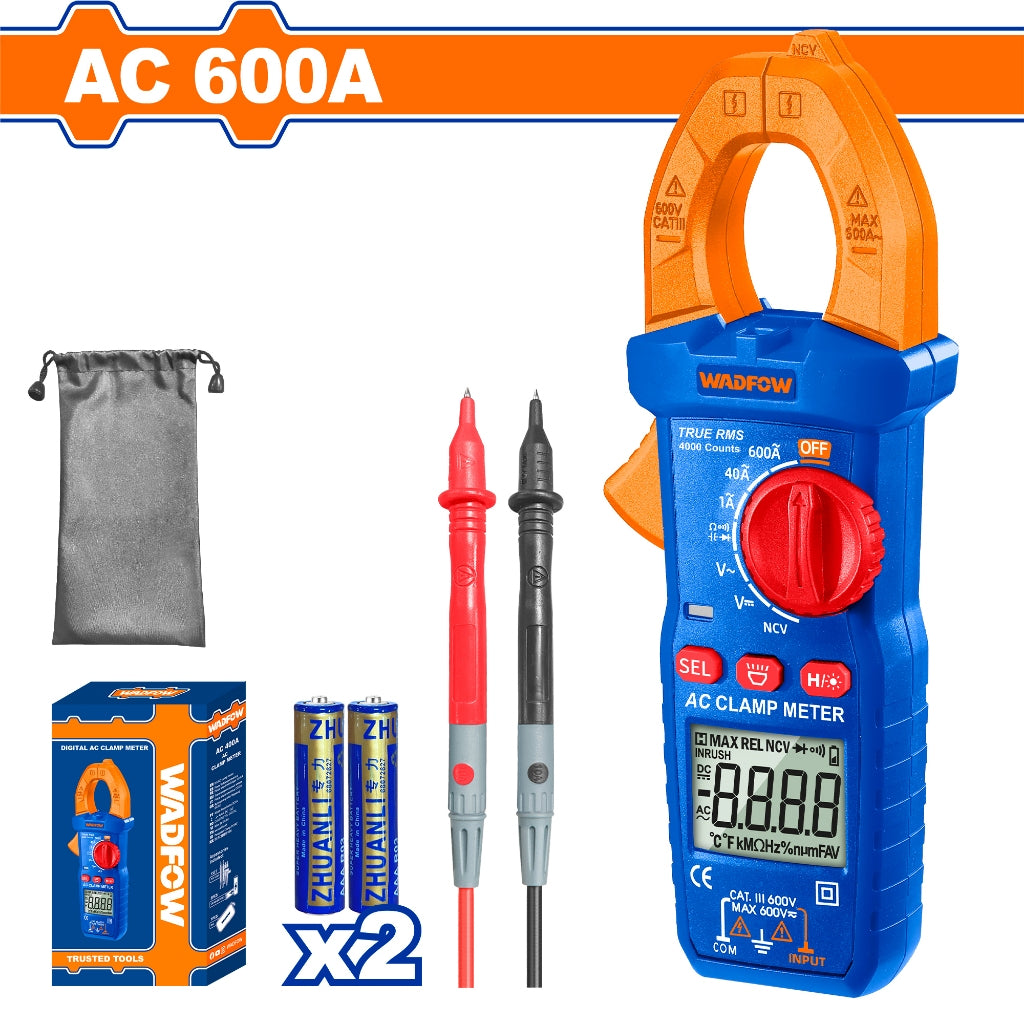

Model: WDM8601
• Product Type: Digital AC Clamp Meter / AC Current Tester
• Display: 4000‑count LCD with backlight
• AC Current Range (Clamp): 1 A / 40 A / 600 A
• AC Voltage Range: 4 V / 40 V / 600 V
• DC Voltage Range: 6 V / 60 V / 600 V
• Resistance Range:
• 600 Ω / 6 kΩ / 60 kΩ / 600 kΩ / 6 MΩ / 60 MΩ
• Capacitance Range:
• 6 nF / 600 nF / 6 µF / 60 µF / 600 µF / 6 mF / 60 mF
• Functions:
• Diode test
• Frequency test
• Data hold (freeze reading)
• Built‑in flashlight / work light
• Auto power‑off (low power saving)
• Power Supply: 2 × AAA batteries (included)
• Packaging: Color box
Features:
• Measures AC current without breaking circuit — clamp design is safe & convenient
• Backlit LCD for better visibility in low light
• Combines multiple electrical tests in one compact tool
• Lightweight and portable for field and workshop use

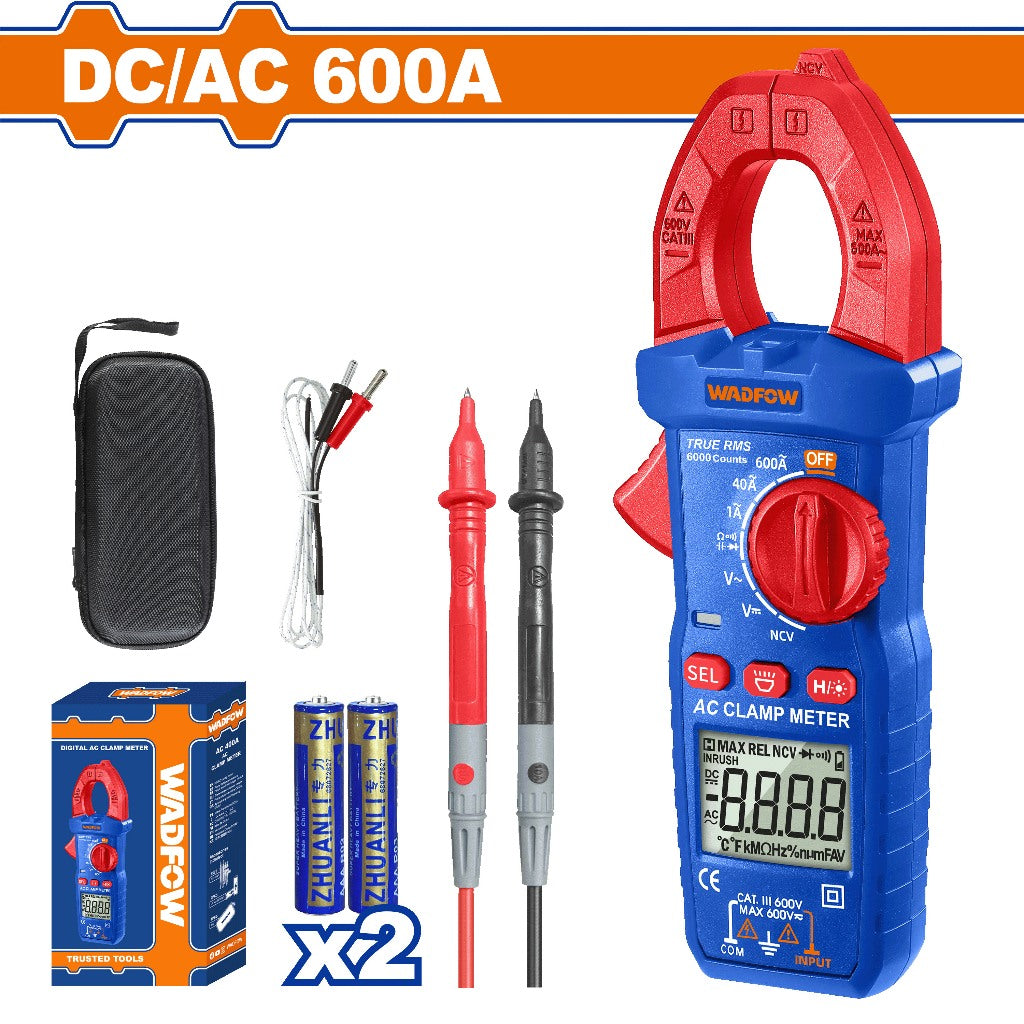

Model: WDM8602
• Product Type: DC/AC Clamp Meter / Digital Electrical Tester
• Display: 6000‑count LCD with backlight (high resolution for clearer readings)
• Current Measurement:
• DC Current: 60A / 600A
• AC Current: 60A / 600A
• Voltage Measurement:
• DC Voltage: 600 mV / 6 V / 60 V / 600 V
• AC Voltage: 6 V / 60 V / 600 V
• Resistance Range: 600 Ω to 60 MΩ (multiple ranges)
• Capacitance Range: 6 nF to 60 mF
• Frequency Range: 10 Hz to 10 MHz
• Duty Cycle: 1 %–99 %
Functions:
• Diode testing
• Frequency measurement
• Data hold (freezes reading)
• Built‑in flashlight for low‑light work
• Auto power‑off to save battery life
• Power Supply: 2 × AAA batteries (included)
• Includes: Test probes, test leads, and storage pouch
Features & Benefits:
• Measures both DC and AC current safely without breaking the circuit — perfect for panels, motors, and heavy loads
• Large 6000‑count display with backlight for easy reading in various lighting conditions
• All‑in‑one tester — voltage, current, resistance, capacitance, frequency, and diode test in one device
• Portable and lightweight — ideal for technicians, electricians, and DIYers
