PRODUCT SPECIFICATIONS

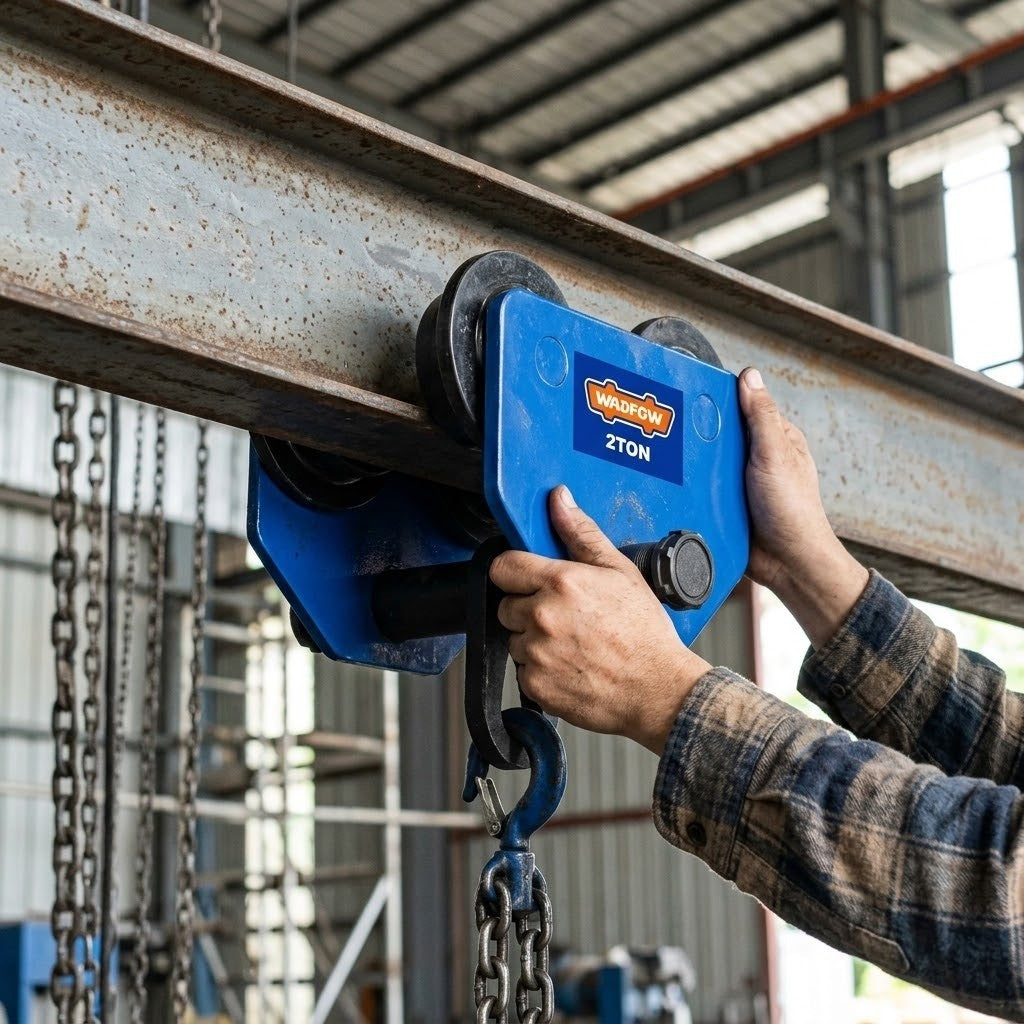

• Model: WCK4520
• Product Name: Wadfow Hand Push Manual Trolley 2Ton
• Load Capacity: 2 Ton (2000 kg)
• Applicable Beam Width (A): 94 - 124 mm
• Minimum Curve Radius: 1.0 m
• Internal Wheel Diameter (B): 75 mm
• Wheel Size (C x D): 102 x 40 mm
• Bolt Diameter (E): 30 mm
• Bolt Length (F): 247 mm
• Total Width (G): 218 mm
• Net Weight: 11.7 kg
• Packed by: Color Box
COMPATIBILITY
• Beams & Hoists: I-Beams, H-Beams, Universal Beams, and Manual or Electric Chain Hoists
• Applications: Material Handling in Warehouses, Construction Sites, Workshops, and Factories
PACKAGING INCLUDED
• 1 Unit Wadfow Hand Push Manual Trolley 2Ton (Model WCK4520)
........................................................................................

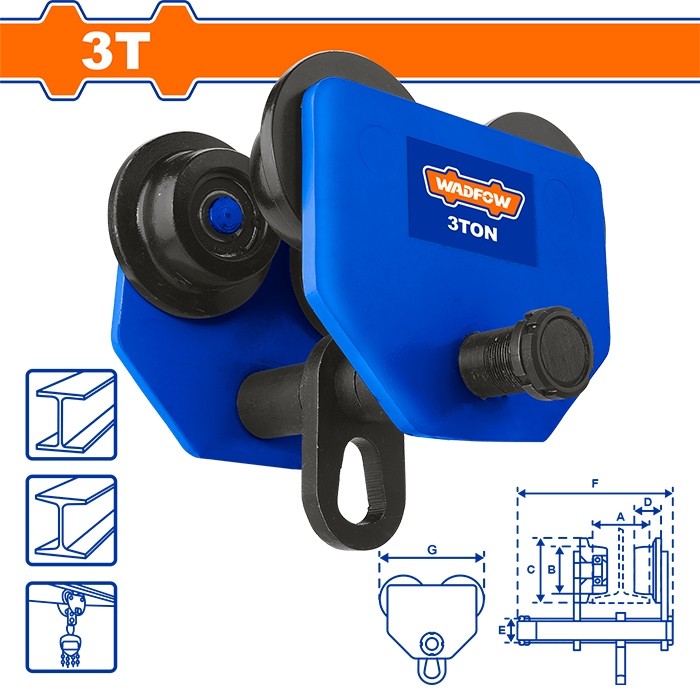

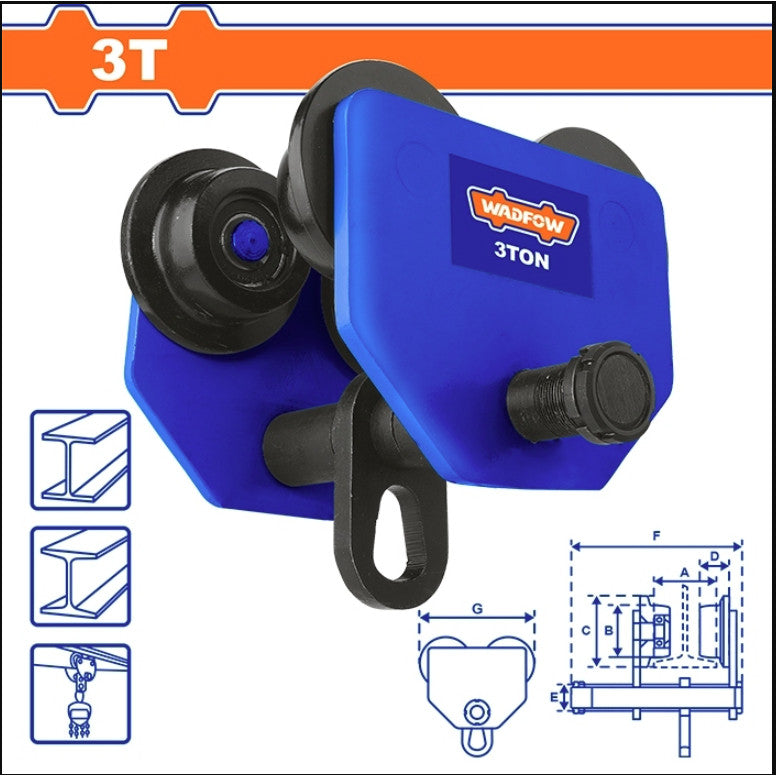

PRODUCT SPECIFICATIONS
• Model: WCK4530
• Product Name: Wadfow Hand Push Manual Trolley 3Ton
• Load Capacity: 3 Ton (3000 kg)
• Applicable Beam Width (A): 116 - 140 mm
• Minimum Curve Radius: 1.1 m
• Internal Wheel Diameter (B): 90 mm
• Wheel Size (C x D): 120 x 45 mm
• Bolt Diameter (E): 36 mm
• Bolt Length (F): 238 mm
• Total Width (G): 254 mm
• Net Weight: 18.2 kg
• Packed by: Color Box
COMPATIBILITY
• Beams & Hoists: I-Beams, H-Beams, Universal Beams, and Manual or Electric Chain Hoists
• Applications: Material Handling in Warehouses, Construction Sites, Workshops, and Factories
PACKAGING INCLUDED
• 1 Unit Wadfow Hand Push Manual Trolley 3Ton (Model WCK4530)
........................................................................................
FEATURE
• Heavy-Duty Load Capacity: Engineered for rugged industrial material handling, supporting heavy loads up to 2 Tons or 3 Tons along overhead beam tracks.
• Adjustable Beam Flange Width: Easily adjusts to fit various standard I-beam and H-beam flange widths for flexible installation on different workstation tracks.
• Smooth Curved Motion: Precision wheels with durable bearings allow smooth traversing along straight or curved monorail tracks with minimal push force.
• Robust Steel Construction: Built with high-strength structural steel plates and heavy-duty load bolts for maximum safety, stability, and long-term service life.
