Specification

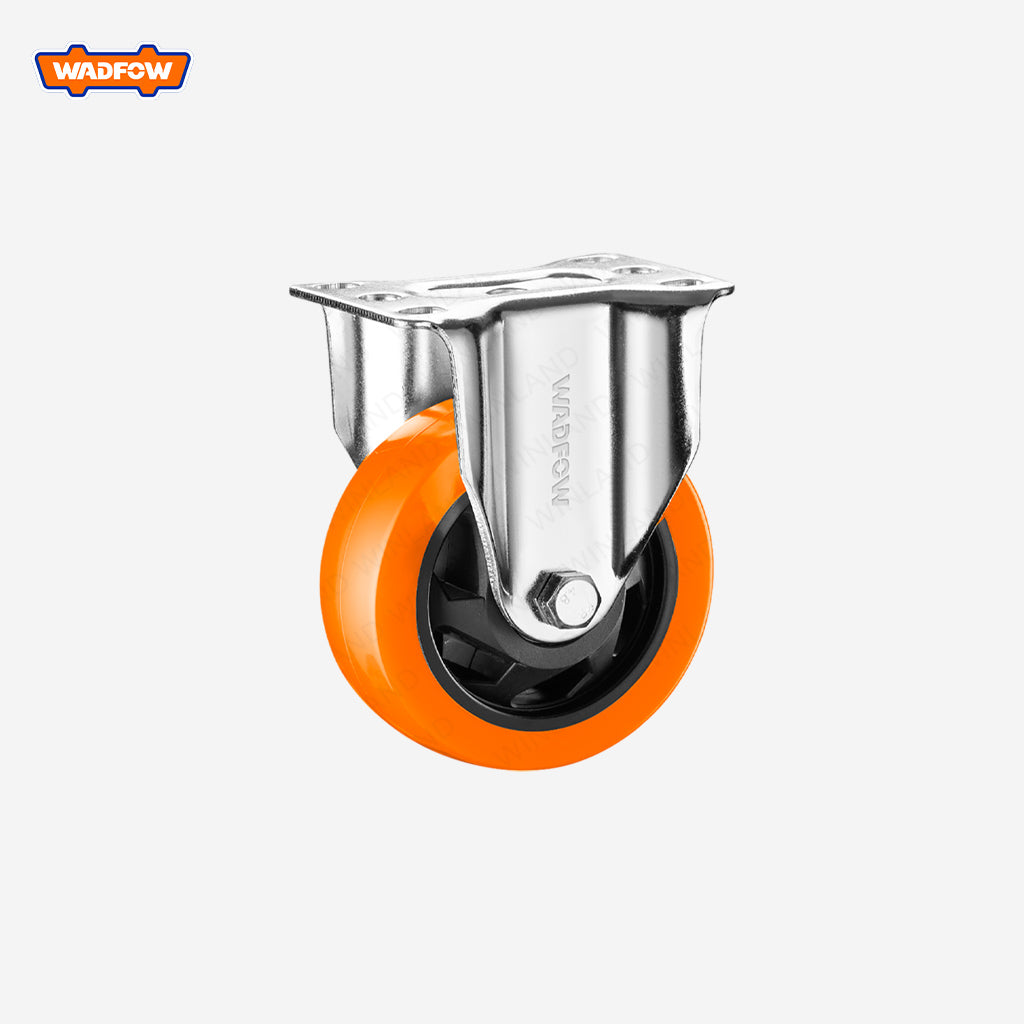

Model: WJL2331
3-inch Rigid Swivel Caster
Load: 100kg
Wheel Material: PP+PVC
Wheel Diameter: 3" (75mm)
Wheel Width: 1.25"(32mm)
Bearing: Double Ball Bearing
Frame Material: Cold Rolled Sheet Metal
Frame thickness: 2.5mm
Frame surface finish: galvanized
Top plate size: 95mm x 67mm
Hole spacing: 75mm x 45mm
Hole size: 12mm x 8.5mm
Mounting height: 107mm

Model: WJL2341
4-inch Rigid Swivel Caster
Load: 130kg
Wheel material: PP+PVC
Wheel diameter: 4" (100mm)
Wheel Width: 1.25"(32mm)
Bearing: double ball bearing
Frame material: cold rolled sheet metal
Frame thickness: 2.5mm
Frame surface finish: galvanized
Thickness: 3mm
Top plate size: 95mm x 67mm
Hole spacing: 75mm x 45mm
Hole size: 12mm x 8.5mm
Mounting height: 131mm

Model: WJL2351
5-inch Rigid Swivel Caster
Load: 150kg
Wheel material: PP+PVC
Wheel diameter: 5" (125mm)
Wheel Width: 1.25"(32mm)
Bearing: double ball bearing
Frame Material: Cold-Rolled Pate
Frame thickness: 2.5mm
Frame surface finish: galvanized
Top plate size: 95mm x 67mm
Hole spacing: 75mm x 45mm
Hole size: 12mm x 8.5mm
Mounting height: 157mm

Model: WJL2333
3" swivel caster wheel with brake
Load: 100kg
Wheel Material: PP+PVC
Wheel diameter: 3" (75mm)
Wheel width: 1.25"(32mm)
Bearing: double ball bearing
Frame material: Cold-Rolled plate
Frame thickness: 2.5mm
Frame surface finish: galvanized
Top plate thickness: 3mm
Top plate size: 95mm x 67mm
Hole spacing: 75mm x 45mm
Hole size: 12mm x 8.5mm
Mounting height: 107mm
Packed by label

Model: WJL2343
4" swivel caster wheel with brake
Load: 130kg
Wheel Material: PP+PVC
Wheel diameter: 4"(100mm)
Wheel width: 1.25"(32mm)
Bearing: double ball bearing
Frame material: Cold-Rolled plate
Frame thickness: 2.5mm
Frame surface finish: galvanized
Top plate thickness: 3mm
Top plate size: 94mmx61mm
Hole spacing: 75mm x 45mm
Hole size: 12mm x 8.5mm
Mounting height :131mm
Packed by label

Model: WJL2353
Wheel material: PP+PVC
Wheel diameter: 5″ (125 mm)
Wheel width: 1.25″ (32 mm)
Bearing: Double ball bearing
Frame material: Cold rolled plate
Frame thickness: 2.5mm frame
Surface finish: galvanized
Top plate thickness: 3mm
Top plate size : 95mm x 67mm
Hole spacing: 75mm x 45mm
Hole size: 12mm x 8.5mm
Mounting height: 157 mm

Model: WJL2332
Material: Polyurethane
Load: 100kg
Wheel Material: PP+PVC
Wheel Diameter: 3" (75mm)
Wheel Width: 1.25"(32mm)
Top plate size: 95mm x 67mm
Hole spacing: 75mm x 45mm
Hole size: 12mm x 8.5mm
Mounting height: 107mm

Features
High-quality polyurethane material
Durable metal frame for heavy loads
Precision ball bearings for smooth rotation
75mm diameter for optimal balance
Noise and vibration reduction design
Quality Guaranteed
Original WADFOW product
