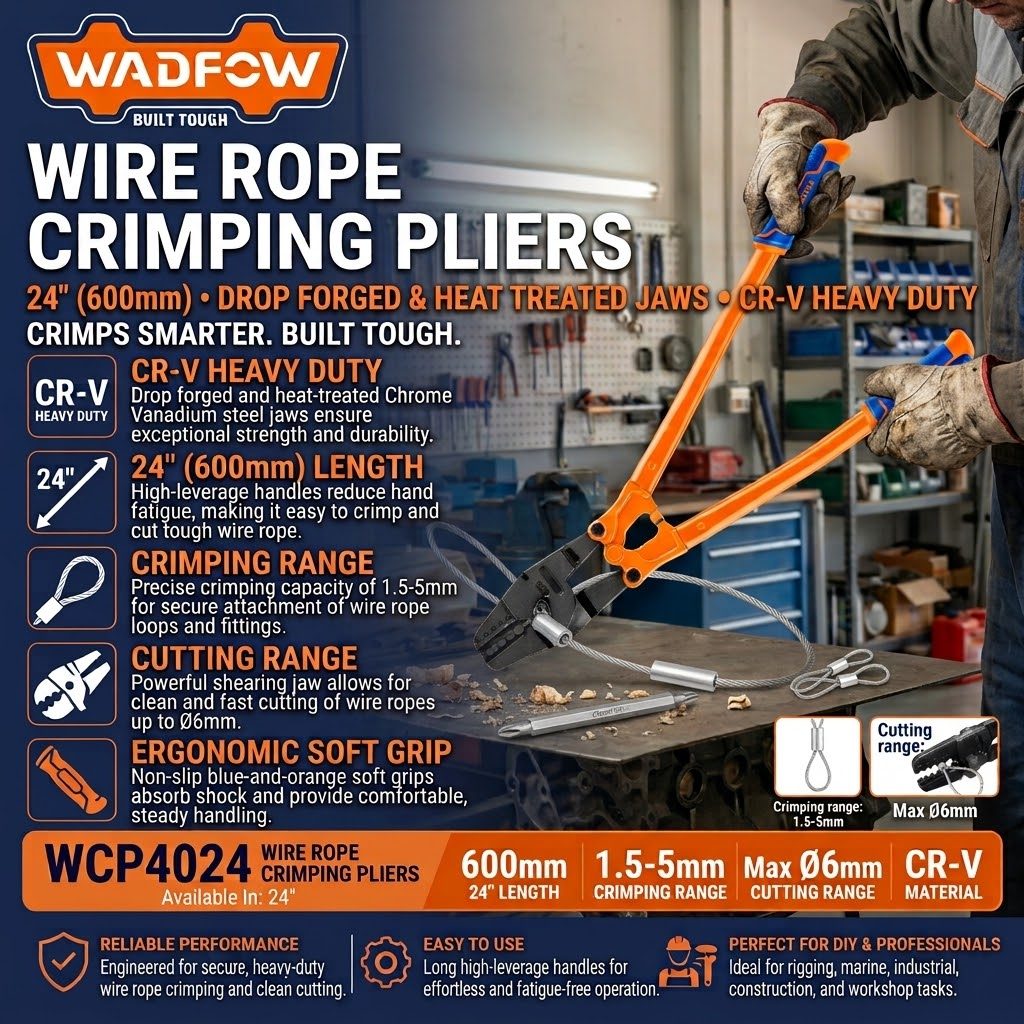

PRODUCT SPECIFICATIONS
• Model: WCP4024
• Product Name: Wadfow Wire Rope Crimping Pliers 24in
• Size: 24" (600 mm)
• Material: Chrome Vanadium (CR-V) Steel

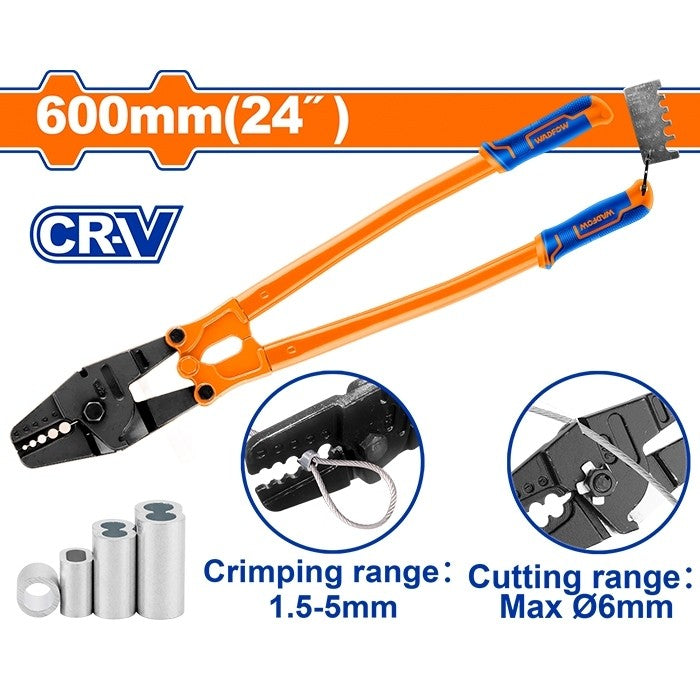

• Crimping Range: 1.5 - 5 mm (1.5, 2, 2.5, 2.8, 3.0, 3.5, 5 mm)
• Cutting Range: Max Ø 6 mm Wire Rope
• Forging: Drop Forged & Heat Treated Jaws
• Handles: Two-Color Ergonomic Soft Grips
• Packed by: Paper Card
COMPATIBILITY
• Sleeve Materials: Copper and Aluminum Oval Sleeves, Swage Sleeves, and Stop Sleeves
• Wire Rope: Steel Wire Ropes, Aircraft Cables, and Wire Strands up to 6 mm Diameter
PACKAGING INCLUDED
• 1 Unit Wadfow 24" Wire Rope Crimping Pliers (Model WCP4024)
• 1 Pcs Wire Gauge Measuring Plate Attachment
........................................................................................
FEATURE
• Heavy-Duty CR-V Construction: Built with drop-forged and heat-treated Chrome Vanadium steel jaws for maximum leverage, wear resistance, and long service life.
• Versatile Crimping Range: Features multi-size jaw cavities designed to crimp 1.5mm to 5mm copper and aluminum oval swage sleeves securely.
• Integrated Wire Rope Cutter: Equipped with built-in cutting edges capable of cleanly cutting steel wire ropes up to 6mm in diameter.
• Long Ergonomic Handles: 24-inch leverage handles with comfortable two-color grips reduce hand exertion during repetitive crimping and cutting tasks.
